High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037

Good quality Cobalt Alloy Castings for sales
Professional at casting expertise and efficient at export operation and considerate arrangement.

—— Alex Chrischurch

I'm Online Chat Now

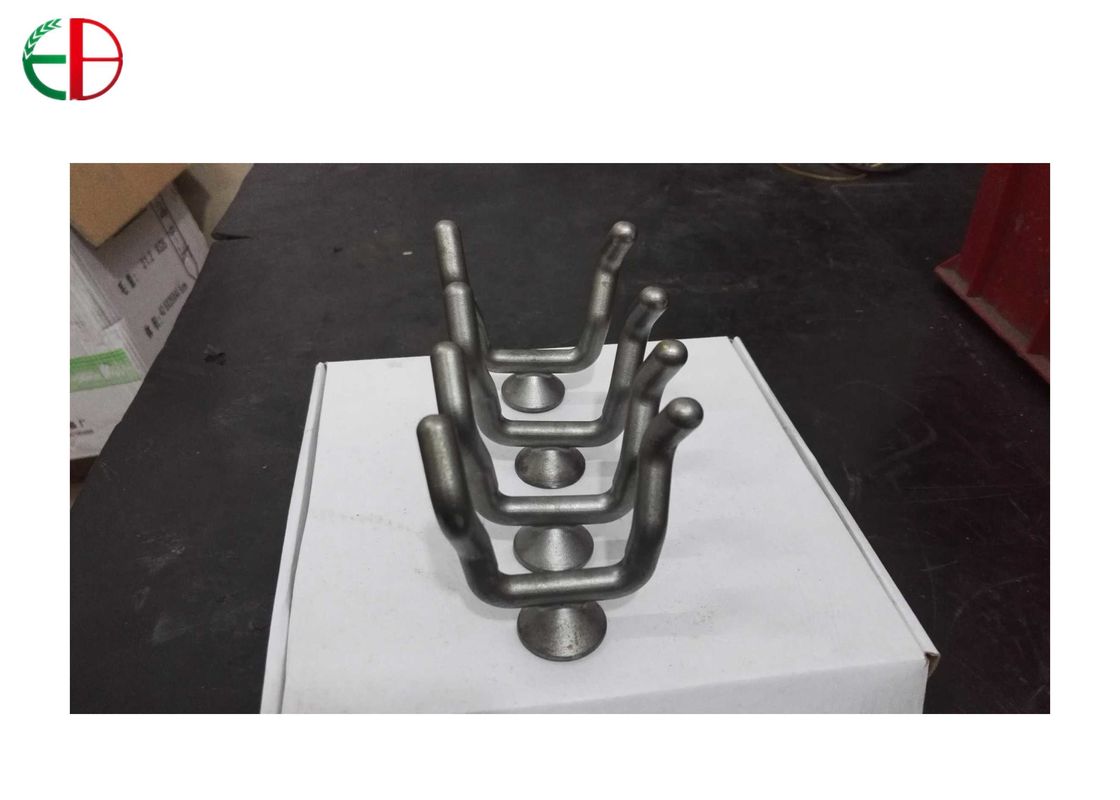

High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037

China High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037 supplier
High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037 supplier High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037 supplier High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037 supplier

Large Image :  High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037

Product Details:

Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB26037

Payment & Shipping Terms:

Minimum Order Quantity: 30 kg
Price: USD80/kg ~ USD120/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C, Western Union
Supply Ability: 100,000,000.00
Contact Now
Detailed Product Description
Material Grade: UMCo50,Stellite 1,3,6 Working Temperature: Up To 1200 Centi-degree
Hardness: More Than HRC50 Performance: Better Wear Property And Higher Temperature
Cast Process: Wax Lost Process Certification: ISO9001

Haynes25(L-605) High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037

High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037

This specification covers welded pipe of nickel and nickel-cobalt alloys (UNS N10001; UNS N10242; UNS N10665; UNS N12160; UNS N10624; UNS N10629; UNS N10675; UNS N10276; UNS N06455; UNS N06007; UNS N06975; UNS N08230; UNS 06002; UNS N06022; UNS N06035; UNS N06058; UNS N06059; UNS N06200; UNS N06985; UNS N06030; UNS R30556; UNS N08031; UNS N06230; UNS N06686; UNS N06210; and UNS R20033).



We produce High Temperature Superalloy Castings Parts with centrifugal cast process, investment process and resin sand cast process.





Table 1 : Standard Cobalt & Nickel Base Alloys

Stellite Alloy Overlay Welding

  Co Cr C W Mo Ni Si B Fe Mn Others
STELLITE 1 BAL 33 2.45 13 - 2.5* 1 - 2.5* 1 -
STELLITE 3 BAL 31 2.5 13 - 2.5* 1 - 2.5* 1 -
STELLITE 4 BAL 31.5 1 14 - 2.0* 1 - 2.0* 1 -
STELLITE 6 BAL 28 1.2 5 - 3.0* 1 - 2.5* 1 -
STELLITE 12 BAL 29 1.85 9 - 2.5* 1 - 2.5* 1 -
STELLITE 20 BAL 33 2.45 17.5 - 2.5* 1 - 2.5* 1 -
STELLITE 21 BAL 27 0.25 - 5.5 2.5* 1 - 3.0* 1 -
STELLITE 31 BAL 26 0.5 7.5 - 10.5 1 - 2.0* 1 -
STELLITE 190 BAL 26 3.3 14 - 1.0 1 - 8.0 0.5 -
STELLITE 238 BAL 26 0.1 - 3 - 1 - 20.0 1 -
STELLITE 306 BAL 25 0.4 2 - 6.0 1 - 4.0* 1 Nb=5
STELLITE 694 BAL 28 1 19 - 5.0 1 - 2.5* 1 V=1
STELLITE F BAL 25.5 1.75 12.25 - 22.5 1 - 1.5* - -
STELLITE SF1 BAL 19 1.3 13 - 13 3 2.5 3* 0.5 Cu=0.5
STELLITE SF6 BAL 19 0.7 7 - 13 2.5 1.7 3* 0.5 Cu=0.5
STELLITE SF12 BAL 19 1 9 - 13 3 2 3* 0.5 Cu=0.5
STELLITE SF20 BAL 19 1.5 15 - 13 3 3 2* 0.5 Cu=0.5
TRIBALOY T400 BAL 8 0.1* - 28 3* 2.4 - 3* - -
TRIBALOY T800 BAL 17 0.1* - 28 3* 3.2 - 3* - -
DELORO 15 - - 0.06* - - BAL 2.0 1.05 1.5* 20 Cu=20
DELORO 22 - 0.70 0.10 - - BAL 2.3 1.75 - - -
DELORO 40 - 7.0 0.10 - - BAL 3.5 2.25 - - -
DELORO 50 - 10.25 0.45 - - BAL 4.0 1.85 4.0 - -
DELORO 60 - 14.25 0.6 - - BAL 2.0 3.5 4.0 - -
DELORO 625 - 22 0.1 - 9 BAL - - 5 - -
NISTELLE C - 16.5 0.12* 4.5 17 BAL 0.7 - 6.0 - -
TRIBALOY T700 - 15 0.10* - 32 BAL 3.25 -
  Hastelloy C22®(UNS N06022)(Max.)
  C MN P S Si Cr Ni Mo CO Fe W V
  0.015 0.5 0.02 0.02 0.08 20.0-22.5 Bal. 12.5-14.5 2.5 2.0-6.0 2.5-3.5 0.35
  Hastelloy C276®(UNS N10276)(Max.)
  C MN P S Si Cr Ni Mo CO Fe W V
  0.01 1 0.04 0.03 0.08 14.5-16.5 Bal. 15.0-17.0 2.5 4.0-7.0 3.0-4.5 0.35
  Hastelloyx®(UNS N06002)(Max.)
  C MN P S Si Cr Ni Mo CO Fe W other
  0.05-0.15 1 0.04 0.03 1 20.5-23.0 Bal. 8.0-10.0 0.5-2.5 17.0-20.0 0.2-1.0 /
  Monel 400®(UNS NO4400) (Max.)High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037
  C MN S Si Ni Cu Fe
  0.3 2 0.024 0.5 63 min 28-34 2.5
  Monel M400®(UNS NO4400)(Max.)High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037
  C MN S Si Ni Cu Fe
  0.3 2 0.024 0.5 63-70 28-34 2.5
  Monel R405®(UNS NO4405)(Max.)High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037
  C MN S Si Ni Cu Fe
  0.3 2 0.025-0.06 0.5 63.0min 28-34 2.5
  Monel K500®(UNS NO5500)(Max.)High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037
  C MN S Si Ni Cu Ti AI Fe
  0.1 2 0.01 0.5 63min 27-33 0.86 2.3-3.15 2
  Inconel 600(UNS NO6600)(Max.)
  C MN S Si Cr Ni Cu Fe
  0.15 1 0.015 0.5 14-17 72 min 0.5 6.0-10.0
  Inconel 601(UNS NO6601)(Max.)
  C MN Si Cr Ni CO AI Fe
  0.05 0.3 0.2 22.5 61.5min 5 1.4 14.1
  Inconel 718(UNS NO7718)(Max.)
  Cr Ni Mo CO Cb+Ta Ti AI Fe
  19 52.5min 3.05 5 5.13 0.9 0.5 18.5
  Chemical Analysis of Incoloy 800® uns(N08800)
  C Cr Ni Ti AI Fe Grain
  0.1 max 19.0-23.0 30.0-35.0 0.15-0.6 0.15-0.6 39.5min /
  Incoloy800H® UNS(N08810)
  C Cr Ni Ti AI Fe Grain
  0.05-0.1 19.0-23.0 30.0-35.0 0.15-0.60 0.15-0.60 39.5min 5or coarser
  Incoloy800HT® UNS(N08811)
  C Cr Ni Ti AI Fe Grain
  0.06-0.10 19.0-23.0 30.0-35.0 0.25-0.60 0.25-0.60 39.5min 5or coarser



Dimensions:as per drawings



Special Features:

1. Good surface finish;

2. We use Precision Cast Process to produce the Plugmill Mixer Blade Parts

with white Iron materials;

3. We do quenching & tempering treatment to achieve better wear performance.



Production Process

Step 1: Getting orders.



Step 2: Process design by technical department



Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)



Step 13: Packing



Step 14: Shipping





High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037

1. 16-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show High Temperature Cobalt Squiggle Twigs Adopt Precision Cast Process EB26037



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.
