Product Details:
Payment & Shipping Terms:
|
| Application: | Mill Liner Bolts | Quality Level: | 12.9, 10.9, 8.8 Grade |
|---|---|---|---|
| Material: | 40Cr | Processing Type: | Forging |
| Size: | M20,M24, M27,M30,M36,M42,M45; | One Bolt Unit: | Bolt + Nut + Washer + Sealing Ring |
| Surface Treatment: | Black | High Strength: | σb/MPa≥: 450 |
| Specific: | M42 * 3* 280mm | ||
| High Light: | chrome plated hardware,heavy hex bolt |
||
Material Grade: 40Cr
Quality Level: 12.9Grade

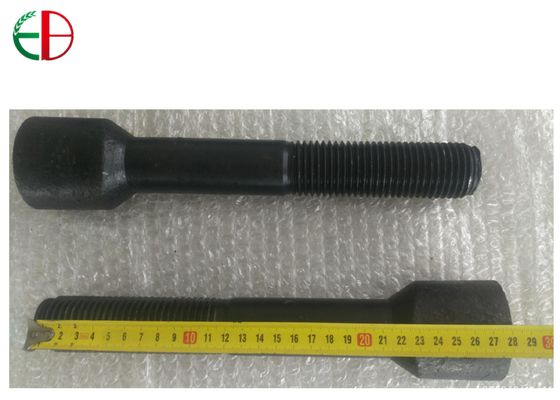

Sizes:M36 x 3 x 280mm;
Specification: As drawings
| M42 * 150 | M42 * 160 | M42 * 170 | M42 * 180 |
| M42 * 190 | M42 * 200 | M 42 * 210 | M 42 * 220 |
| M42 * 430 | M42 * 440 | M42 * 450 | M42 * 460 |

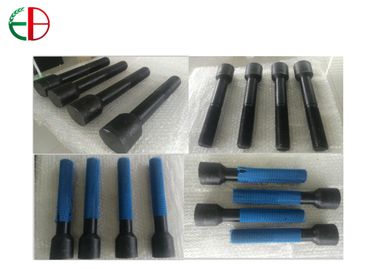

Bolt-head Shape: Square Head,Ellipse Head,Oval Head,
Production Process:Heat-treated, High Strength
Service Life Guarantee: 18 months under normal working condition
Application: Bolt Units for SAG Mill dia.5.8M
Destination: Export to Poland；Germany
Special Features:
1. The high strength bolts have been widely used in large ball mills up to dia.12-meter mills.
2. The high strength screws can be reliably used in small,middle and large cement mills,coal mils and mine mills.
3. The high strength bolts have been properly heat-treated to achieve better mechanical properties.
4. The standard bolt units include one rubber ring,concave washer,spring washer and nut.
Specification For Bolt Units & Mill Liner Bolt Units & Bolt Nuts & Spring Washers & Flat Washers(M30 Bolts)
| Weight (kg/1000pc) | ||
| Size | Without Nuts | With Nuts |
| M42*150 | 2223 | 2822 |
| M42*160 | 2332 | 2931 |
| M42*170 | 2441 | 3040 |
| M42*180 | 2550 | 3149 |
| M42*190 | 2659 | 3258 |
| M42*200 | 2768 | 3367 |
| M42*210 | 2877 | 3476 |
| M42*220 | 2986 | 3585 |
| M42*230 | 3095 | 3694 |
| M42*240 | 3204 | 3803 |
| M42*250 | 3313 | 3912 |
1. 18-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
