QT500-7 QT600-3 Ductile Cast Iron For Custom Piston And Valve Body EB16012

QT500-7 QT600-3 Ductile Cast Iron For Custom Piston And Valve Body EB16012
QT500-7 QT600-3 Ductile Cast Iron For Custom Piston And Valve Body EB16012
video play

Large Image :  QT500-7 QT600-3 Ductile Cast Iron For Custom Piston And Valve Body EB16012

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB16012
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 0.7~1.5/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C
Supply Ability: 10000 tons per year
Detailed Product Description
Product Name: Custom Piston And Valve Body Material: Ductile Cast Iron
Grade: QT500-7 QT600-3 Process: Sand Casting
Size: According To Customer's Drawings Service: OEM ODM
High Light:

cast iron tube

,

ductile iron casting parts



QT500-7 QT600-3 Ductile Cast Iron for Custom Piston and Valve Body for Sand Casting EB16012

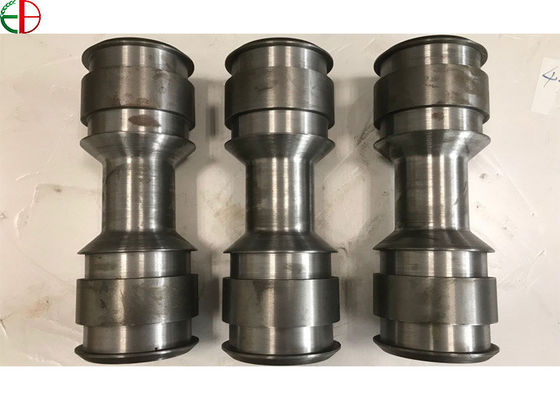

QT500-7 QT600-3 Ductile Cast Iron For Custom Piston And Valve Body EB16012 0

1. Product Name:QT500-7 QT600-3 Ductile Cast Iron for Custom Piston and Valve Body for Sand Casting



2. Material Grade:AS1831/600-3



3. Weight:7.08kg



4. Casting Tolerance:DCTG-11 / GCTG-5



5. Dimensional Tolerance:±0.15mm



6. Chemical Composition:QT500-7 QT600-3



S/N Standard / Material Grade Chemical Composition (%)
GB ISO 1083 JIS G5502 ASTM A536-84

DIN

1693

AS 1831 C Si Mn P S Mg Re
1 QT400-18 400-15,18 FCD 400 60-40-18 GGG-40 400-12 3.6~3.8 2.3~2.7 ≤0.5 ≤0.03 ≤0.05 0.03~0.05 0.02~0.03
2 QT500-7 500-7 FCD 500 80-55-06 GGG-50 500-7 3.4~3.9 2.0~2.9 ≤0.6 ≤0.03 ≤0.05 0.03~0.10 0.03~0.10
3 QT600-3 600-3 FCD 600 80-60-03 GGG-60 600-3 3.4~3.8 2.0~2.8 0.3~0.7 ≤0.03 ≤0.05 0.035~0.05 0.025~0.045
4 QT700-2 700-2 FCD 700 100-70-03 GGG-70 700-2 3.5~4.0 2.0~2.6 0.5~0.9 ≤0.03 ≤0.05 0.035~0.065 0.035~0.065



7. Mechanical Properties:QT500-7 QT600-3



GB

Tensile Strength

σb/Mpa (≥)

Yield point

σs/Mpa (≥)

Elongation

δ5/%(≥)

Hardness(HBS)
QT400-18 400 250 18 130~180
QT500-7 500 320 7 170~230
QT600-3 600 380 3 190~270
QT700-2 700 440 2 225~305



8. Video for QT500-7 QT600-3 Ductile Cast Iron for Custom Piston and Valve Body for Sand Casting EB16012:



QT500-7 QT600-3 Ductile Cast Iron For Custom Piston And Valve Body EB16012 1
