API V11-106 Sucker Rod Pumps 5/8" Cobalt Alloy Castings Valve Ball

API V11-106 Sucker Rod Pumps 5/8" Cobalt Alloy Castings Valve Ball
API V11-106 Sucker Rod Pumps 5/8" Cobalt Alloy Castings Valve Ball
video play

Large Image :  API V11-106 Sucker Rod Pumps 5/8" Cobalt Alloy Castings Valve Ball

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001:2008
Model Number: EB2911
Payment & Shipping Terms:
Minimum Order Quantity: 5 Piece/Pieces
Price: $5.00 - $50.00 / Piece
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: By T/T or L/C
Supply Ability: 10000 Tons Per Year
Detailed Product Description
Product Name: Cobalt Alloy Cobalt Based Alloy Valve Parts Ball Material: Cobalt Alloy Cobalt Based Alloy
Chemical Composition: Cobalt Alloy 12,20,21 Etc Dimensions: Nonstandard
Hardness: 37-55HRC Density: 8.35g/cm3
Shape: Round Temperature Of Media: High Temperature
Type: Machine Parts ,Wear Parts Application: Oil&Gas Industry
Supply Type: OEM Service
High Light:

API V11-106 Cobalt Alloy Castings

,

API V11-106 valve ball

,

cobalt casting valve ball



Wear and Corrosion Resistant Cobalt Alloy cobalt alloy 20 Valve Ball cobalt alloy 3 Valve Seat



API V11-106 Sucker Rod Pumps 5/8" Cobalt Alloy Castings Valve Ball 0



Cobalt balls are used in wear and high temperature applications, particularly where lubrication is marginal. ITI is capable of manufacturing cobalt balls in several alloys. There are many trade names used for different alloys and often cobalt balls are referred to as cobalt alloy balls Haynes balls, or Rexalloy balls. The different alloy compositions are used for applications in valves, ball and seat, regulators, bearings and ball screws in many industries including petroleum and nuclear.



What`s the Material of our Valve Seat ?



Here is the valve seat material we ever made for our customers ,you also can give your own material chemical composition or choose other material from our material list.

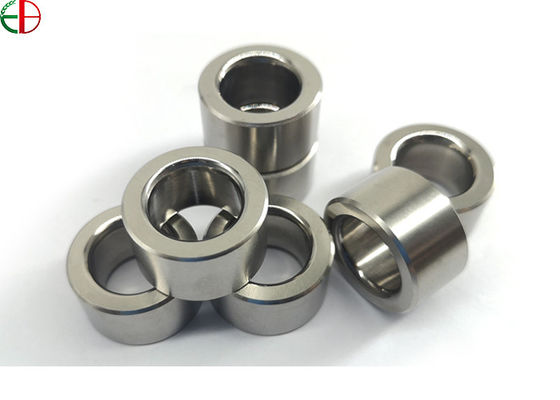

API Standard Cobalt Alloy Valve Seats and Valve Balls:


1. Valve balls and valve seats are widely used in oil fields.


2. Valve Ball and Seat performance directly affects the use effect and service life of the sucker rod pumps.


3. Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.



Feature:

High precision, high hardness, wear resistance, corrosion resistance, bending resistance, and harsh environment can replace steel balls.


No.

Size(mm)
Weight(g)
Tolerance
1
V11-106
20.14x11.68x12.7
22.81
ID(±1.27mm)
OD(+0/-0.13mm)
H(+0.51/-0.25mm)
2
V11-125
23.32x13.97x12.7
29.55
3
V11-150
29.67x17.2x12.7
49.53
4
V11-175
35.26x20.96x12.7
68.13
5
V11-200
37.54x24.38x12.7
69.05
6
V11-225
43.69x26.92x12.7
100.34
7
V11-250
51.05x33.27x12.7
127.04

8
V11-375
78.03x43.18x19.05
536.94
78.03x47.75x19.05
484.12


• 1. Valve balls and valve seats are widely used in oil fields.
• 2. Valve Ball and Seat performance directly affects the use effect and service life of the sucker rod pumps.
• 3. Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.



Product Details:



API V11-106 Sucker Rod Pumps 5/8" Cobalt Alloy Castings Valve Ball 1API V11-106 Sucker Rod Pumps 5/8" Cobalt Alloy Castings Valve Ball 2API V11-106 Sucker Rod Pumps 5/8" Cobalt Alloy Castings Valve Ball 3
