Product Details:
Payment & Shipping Terms:
|
| Product Name: | Api Valve Ball | Material: | Cobalt Alloy Cobalt Based Alloy |
|---|---|---|---|
| Chemical Composition: | Cobalt Alloy | Dimensions: | V11-175 |
| Hardness: | 37-55HRC | Density: | 8.15-8.8g/cm |
| Temperature Of Media: | High Temperature | Property: | Wear And Corrosion Resistance |
| Type: | Machine Parts ,Wear Parts | Shape: | Round |
| Application: | Oil&Gas Industry | ||
| High Light: | V11-175 Ball Valve Seat,Cobalt Alloy Ball Valve Seat,cobalt alloy Cobalt Alloy Castings |
||

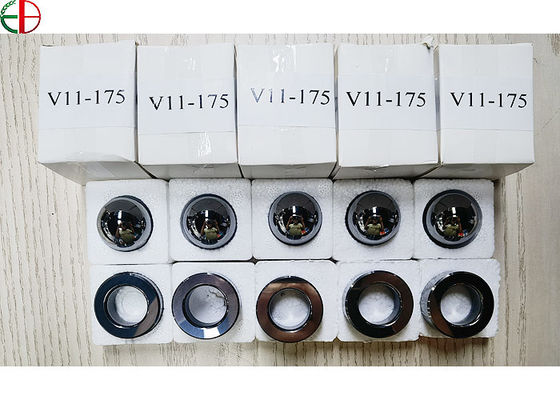

Sucker Rod Pump API 11AX V11-175 cobalt alloy Valve Balls and Seats
What`s the Material of our Valve Seat ?
Here is the valve seat material we ever made for our customers ,you also can give your own material chemical composition or choose other material from our material list.
API Standard Cobalt Alloy Valve Seats and Valve Balls:
1. Valve balls and valve seats are widely used in oil fields.
2. Valve Ball and Seat performance directly affects the use effect and service life of the sucker rod pumps.
3. Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.
Feature:
1. High temperature resistance: the strength keeps stable up to 800℃ and it can even momentarily used at 1200℃.
2. Wear resistance: due mainly to the unique inherent characteristics of the hard carbide phase dispersed in a CoCr alloy matrix, it has exceptional wear and galling resistance.
3. Corrosion resistance: this exellent and lovely property allows this kind of material parts to be used in oil&gas, slurry, acid liquid and any other mediums.
|
No. |
Size(mm) |
Weight(g) |
Tolerance |
|
|
1 |
V11-106 |
20.14x11.68x12.7 |
22.81 |
ID(±1.27mm) OD(+0/-0.13mm) H(+0.51/-0.25mm) |
|
2 |
V11-125 |
23.32x13.97x12.7 |
29.55 |
|
|
3 |
V11-150 |
29.67x17.2x12.7 |
49.53 |
|
|
4 |
V11-175 |
35.26x20.96x12.7 |
68.13 |
|
|
5 |
V11-200 |
37.54x24.38x12.7 |
69.05 |
|
|
6 |
V11-225 |
43.69x26.92x12.7 |
100.34 |
|
|
7 |
V11-250 |
51.05x33.27x12.7 |
127.04 |
|
|
8 |
V11-375 |
78.03x43.18x19.05 |
536.94 |
|
|
78.03x47.75x19.05 |
484.12 |
|||
