Home ProductsCobalt Alloy Castings

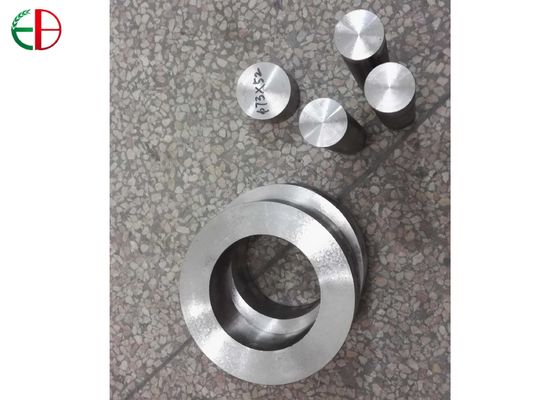

Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products

Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products

    • Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
    • Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
    • Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
    • Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
    • Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
    • Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
  • Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products

    Product Details:

    Place of Origin: China
    Brand Name: Eternal Bliss
    Certification: ISO9001-2008
    Model Number: EB26078

    Payment & Shipping Terms:

    Minimum Order Quantity: 30 kg
    Price: USD80/kg ~ USD120/kg
    Packaging Details: Pallets
    Delivery Time: It depends on the quantity to be ordered.
    Payment Terms: by T/T or L/C, Western Union
    Supply Ability: 100,000,000.00
    Detailed Product Description
    Material Grade: Stellite 1, Stellite 3, Stellite 6 Hardness Temperature: Up To 1200 Centi-degree
    Coating Process: SPF Coating,overlay Process Cast Process: Wax Lost Process
    Surface Treatment: Shot Blast

    Precision Cast Process X-40 Cobalt High Speed Steel Products with High Accuracy EB26078

    Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products.



    Precision investment casting services for a variety of high temperature super alloys cobalt-based types.

    Provides on-site engineering support, tooling design, surface treatment, laboratory testing, and warehousing services. Just in time delivery and other logistics services are available.



    We produce High Temperature Superalloy Castings Parts with precision investment process.



    Table 1 : Standard Cobalt Stellite Alloy

      Co Cr C W Mo Ni Si B Fe Mn Others
    STELLITE 1 BAL 33 2.45 13 - 2.5* 1 - 2.5* 1 -
    STELLITE 3 BAL 31 2.5 13 - 2.5* 1 - 2.5* 1 -
    STELLITE 4 BAL 31.5 1 14 - 2.0* 1 - 2.0* 1 -
    STELLITE 6 BAL 28 1.2 5 - 3.0* 1 - 2.5* 1 -
    STELLITE 12 BAL 29 1.85 9 - 2.5* 1 - 2.5* 1 -
    STELLITE 20 BAL 33 2.45 17.5 - 2.5* 1 - 2.5* 1 -
    STELLITE 21 BAL 27 0.25 - 5.5 2.5* 1 - 3.0* 1 -
    STELLITE 31 BAL 26 0.5 7.5 - 10.5 1 - 2.0* 1 -
    STELLITE 190 BAL 26 3.3 14 - 1.0 1 - 8.0 0.5 -
    STELLITE 238 BAL 26 0.1 - 3 - 1 - 20.0 1 -
    STELLITE 306 BAL 25 0.4 2 - 6.0 1 - 4.0* 1 Nb=5
    STELLITE 694 BAL 28 1 19 - 5.0 1 - 2.5* 1 V=1
    STELLITE F BAL 25.5 1.75 12.25 - 22.5 1 - 1.5* - -
    STELLITE SF1 BAL 19 1.3 13 - 13 3 2.5 3* 0.5 Cu=0.5
    STELLITE SF6 BAL 19 0.7 7 - 13 2.5 1.7 3* 0.5 Cu=0.5
    STELLITE SF12 BAL 19 1 9 - 13 3 2 3* 0.5 Cu=0.5
    STELLITE SF20 BAL 19 1.5 15 - 13 3 3 2* 0.5 Cu=0.5
    TRIBALOY T400 BAL 8 0.1* - 28 3* 2.4 - 3* - -
    TRIBALOY T800 BAL 17 0.1* - 28 3* 3.2 - 3* - -
    DELORO 15 - - 0.06* - - BAL 2.0 1.05 1.5* 20 Cu=20
    DELORO 22 - 0.70 0.10 - - BAL 2.3 1.75 - - -
    DELORO 40 - 7.0 0.10 - - BAL 3.5 2.25 - - -
    DELORO 50 - 10.25 0.45 - - BAL 4.0 1.85 4.0 - -
    DELORO 60 - 14.25 0.6 - - BAL 2.0 3.5 4.0 - -
    DELORO 625 - 22 0.1 - 9 BAL - - 5 - -
    NISTELLE C - 16.5 0.12* 4.5 17 BAL 0.7 - 6.0 - -
    TRIBALOY T700 - 15 0.10* - 32 BAL 3.25 -
      Hastelloy C22®(UNS N06022)(Max.)
      C MN P S Si Cr Ni Mo CO Fe W V
      0.015 0.5 0.02 0.02 0.08 20.0-22.5 Bal. 12.5-14.5 2.5 2.0-6.0 2.5-3.5 0.35
      Hastelloy C276®(UNS N10276)(Max.)
      C MN P S Si Cr Ni Mo CO Fe W V
      0.01 1 0.04 0.03 0.08 14.5-16.5 Bal. 15.0-17.0 2.5 4.0-7.0 3.0-4.5 0.35
      Hastelloyx®(UNS N06002)(Max.)
      C MN P S Si Cr Ni Mo CO Fe W other
      0.05-0.15 1 0.04 0.03 1 20.5-23.0 Bal. 8.0-10.0 0.5-2.5 17.0-20.0 0.2-1.0 /
      Monel 400®(UNS NO4400) (Max.)Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
      C MN S Si Ni Cu Fe
      0.3 2 0.024 0.5 63 min 28-34 2.5
      Monel M400®(UNS NO4400)(Max.)Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
      C MN S Si Ni Cu Fe
      0.3 2 0.024 0.5 63-70 28-34 2.5
      Monel R405®(UNS NO4405)(Max.)Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
      C MN S Si Ni Cu Fe
      0.3 2 0.025-0.06 0.5 63.0min 28-34 2.5
      Monel K500®(UNS NO5500)(Max.)Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products
      C MN S Si Ni Cu Ti AI Fe
      0.1 2 0.01 0.5 63min 27-33 0.86 2.3-3.15 2
      Inconel 600(UNS NO6600)(Max.)
      C MN S Si Cr Ni Cu Fe
      0.15 1 0.015 0.5 14-17 72 min 0.5 6.0-10.0
      Inconel 601(UNS NO6601)(Max.)
      C MN Si Cr Ni CO AI Fe
      0.05 0.3 0.2 22.5 61.5min 5 1.4 14.1
      Inconel 718(UNS NO7718)(Max.)
      Cr Ni Mo CO Cb+Ta Ti AI Fe
      19 52.5min 3.05 5 5.13 0.9 0.5 18.5
      Chemical Analysis of Incoloy 800® uns(N08800)
      C Cr Ni Ti AI Fe Grain
      0.1 max 19.0-23.0 30.0-35.0 0.15-0.6 0.15-0.6 39.5min /
      Incoloy800H® UNS(N08810)
      C Cr Ni Ti AI Fe Grain
      0.05-0.1 19.0-23.0 30.0-35.0 0.15-0.60 0.15-0.60 39.5min 5or coarser
      Incoloy800HT® UNS(N08811)
      C Cr Ni Ti AI Fe Grain
      0.06-0.10 19.0-23.0 30.0-35.0 0.25-0.60 0.25-0.60 39.5min 5or coarser



    Dimensions:as per drawings





    Production Process

    Step 1: Getting orders.



    Step 2: Process design by technical department



    Step 3: Purchase of raw materials and pattern making &checking



    Step 4: Inspection of raw materials



    Step 5: Melting by middle-frequency induction furnaces



    Step 6: Ladle analysis by Spectrometer



    Step 7: De-oxidization, slag-removal, tapping



    Step 8: Pouring



    Step 9: Openning & fettling



    Step 10: Surface & dimensional check



    Step 11: Heat treatment



    Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)



    Step 13: Packing



    Step 14: Shipping





    Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products

    1. 16-year Foundry Operation Experience.

    2. Friendly & High Efficient Technical & Commercial Communication.

    3. Professional Export Practices: Have Exported to +60 Overseas Countries.





    Our Trade Show Precision Superalloy Castings Parts X-40 Cobalt High Speed Steel Products



    Our booth No. 14-A29-5 in Newcast 2015,Germany

    Hall 14, Stand No.A29-5.
