316L 304L 410L 420 430L 17-4PH Stainless Steel Powder

large.img.alt
large.img.alt
video play

Large Image :  316L 304L 410L 420 430L 17-4PH Stainless Steel Powder

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB96002
Payment & Shipping Terms:
Minimum Order Quantity: 1 Kilograms
Price: $10.00 - $87.00 / Kilogram
Packaging Details: Plywood Case: 1500 x 1000 x 1000mm (Max.) 20 feet container: 25 tons (Max.)
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C, Western Union
Supply Ability: 100,000.00
Detailed Product Description
Product Name: Stainless Steel Powder Material: Stainless Steel
Dimensions: 100mesh/200mesh/300mesh, 100mesh/200mesh/300mesh Shape: Irregular Shape/Spherical, Powder
Chemical Composition: Mn:2.0,Cr:18-19,Ni:8-11, Mn:2.0,Cr:18-19,Ni:8-11 Color: Grey
Application: MIM, PM, Filter, 3D Pringting Ect, Maintenance Coatings,Heat Resistance And Durability Coating Performance: Corrosion Resistance Heart Resistance
High Light:

316L stainless steel powder

,

410L stainless steel powder

,

430L stainless steel powder



Factory Supply 316L 304L 410L 420 430L 17-4PH Alloy Powder Stainless Steel Powder



316L 304L 410L 420 430L 17-4PH Stainless Steel Powder 0

316l Stainless steel powder is widely used in powder silver sintering, pressing, metal injection molding,
thermal spraying, metal shot blasting and other industries.
NO.:
HR304(L)
HR316(L)
HR174PH
Production Process
Atomized
Atomized
Atomized
Grade:
304(L)
316(L)
17-4PH
Density
app.4.1-4.5
tap.>4.9
g/cm3
app.4.1-4.5
tap.>4.8
g/cm3
app.4.1-4.5
tap.>4.8
g/cm3
Hardness
34.5HRC
36HRC
35HRC
Size
150um
150um
150um

75um
75um
75um

45um
45um
45um

15um
15um
15um
Content
Cr:18-20
Ni:8-12
C:0.08(0.03)
Si:1max
Mn:2max
Fe:bal.
Cr:16-18
Ni:10-14
Mo:2-3
C:0.08(0.03)
Si:1max
Mn:2max
Fe:bal.
Cr:15.5-17.5
Ni:3-5
Nb:0.15-0.45
Cu:3-5
C:0.07
Si:1max
Mn:1max
Fe:bal.
Applications
MIM part weight:0.03-200g
Apparent relative density>95%
Sinter density>7.6g/cm3
sinter temperature:1360-1380c
Shrinkage rate:1.18
MIM part weight:0.03-200g
Apparent relative density>95%
Sinter density>7.8g/cm3
sinter temperature:1360-1380c
Shrinkage rate:1.18
MIM part weight:0.03-200g
Apparent relative density>95%
Sinter density>7.8g/cm3
sinter temperature:1360-1380c
Shrinkage rate:1.18





Name of product Purity Particle Size Chemical Composition Use

Stainless steel powder 304

Mn:2.0,

Cr:18-19,

Ni:8-11

100mesh/

200mesh/

300mesh

C≤0.07 ,

Si≤1.0 ,

Mn≤2.0 ,

Cr:18.0-19.0,

Ni:8.0-11.0,

S≤0.03,

P≤0.035

Maintenance coatings,

Heat resistance and durability coating


Name of product Purity Particle Size Chemical Composition Use
Stainless steel powder 316L

Cr:16-18%

Ni:9-13%

Si<2%

100mesh,

200mesh,

300mesh, 15-53um


Cr:16-18%

Ni:9-13%

Si<2%

C<0.03%

Mo<2%

O<0.3%

Maintenance coatings,

heat resistance and durability coating



Advantage of Stainless Steel Powder:

Even powder composition, less impurities
High sphericity
Low oxygen content
Good flowability
High loose density, high tap density
Less hollow powder, less satellite powder

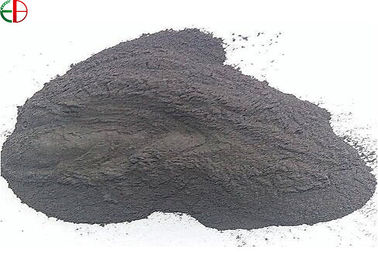

Product Details Picture:



316L 304L 410L 420 430L 17-4PH Stainless Steel Powder 1316L 304L 410L 420 430L 17-4PH Stainless Steel Powder 2316L 304L 410L 420 430L 17-4PH Stainless Steel Powder 3
