Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Balls | Material: | Stainless Steel |
|---|---|---|---|
| Grade: | G10 - G1000 | Specifications: | V11-250 |
| Dimensions: | 42.86mm | Seat: | OD51.05xID33.6x12.7mm |
| Processing Service: | Bending | Property: | Wear And Corrosion Resistance |
| Temperature Of Media: | High Temperature | ||
| High Light: | API roller bearing seat,V11-250 roller bearing seat,42.86mm stainless steel bearing ball |
||

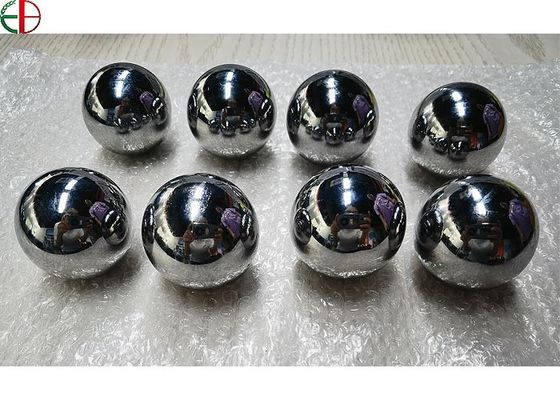

API V11-250 Stainless Steel Balls and Seats for Bearing
V11-250 Stainless steel ball:
Steel ball according to the production and processing technology is divided into grinding steel ball, forging steel ball, casting steel ball.According to the processing materials are divided into bearing steel ball, stainless steel ball, carbon steel ball, copper bearing steel ball and alloy ball.
|
No.
|
Size(mm)
|
Weight(g)
|
Tolerance
|
|
|
1
|
V11-106
|
20.14x11.68x12.7
|
22.81
|
ID(±1.27mm)
OD(+0/-0.13mm)
H(+0.51/-0.25mm)
|
|
2
|
V11-125
|
23.32x13.97x12.7
|
29.55
|
|
|
3
|
V11-150
|
29.67x17.2x12.7
|
49.53
|
|
|
4
|
V11-175
|
35.26x20.96x12.7
|
68.13
|
|
|
5
|
V11-200
|
37.54x24.38x12.7
|
69.05
|
|
|
6
|
V11-225
|
43.69x26.92x12.7
|
100.34
|
|
|
7
|
V11-250
|
51.05x33.27x12.7
|
127.04
|
|
|
8
|
V11-375
|
78.03x43.18x19.05
|
536.94
|
|
|
78.03x47.75x19.05
|
484.12
|
|||
