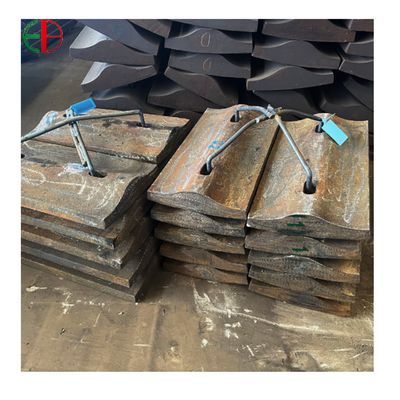

Grid-Type Ball Mill Liners to Drawing

MOQ: 700kg
Price: USD1.8~2.5/kg
Standard Packaging: Pallets
Delivery Period: It depends on the quantity to be ordered.
Payment Method: by T/T or L/C,Western Union
Supply Capacity: 10000 tons per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Eternal Bliss
Certification
Certification documents to be confirmed for the order
Model Number
EB1931
Features:
Liner Geometry To The Approved Drawing
Material:
Alloy Specification To Be Agreed For The Mill Duty
Dimensions:
Drawing
Hardness:
Hardness Requirements To Be Agreed For The Specified Alloy
Machine Type:
Grid-type Ball Mill
Product Type:
Ball Mill Liner
Production Process:
Manufacturing Route To Be Agreed For The Specified Alloy
Use:
Ball Mill Grinding
Application:
Application To Be Confirmed Against The Mill Operating Conditions
Highlight:

grid-type ball mill liner

,

slurry classification grinding liner

,

wear-resistant castings with warranty

Product Description

This product is a liner for a grid-type ball mill. Provide the liner drawing and installation location so the enquiry can distinguish the required lining part from other mill components.

Specify the mill and discharge arrangement

  • Identify the mill model and the required liner position.
  • Provide liner geometry, bolt-hole layout and mating dimensions.
  • Describe the discharge arrangement and the relevant slurry and grinding conditions.
  • Identify which dimensions and interfaces apply to this liner; do not assume every liner is a discharge grate.

Material and inspection

The alloy specification, delivery condition, hardness requirements and inspection documents should be agreed for the actual mill duty. Provide the operating conditions and acceptance criteria with the enquiry.

Quotation information

Include the mill model, drawing revision, required quantity and replacement schedule. Confirm dimensions and mounting details before ordering.
