Ni-hard Casting Wear Plates Chute Liners 20mm Thick EB10027

Ni-hard Casting Wear Plates Chute Liners 20mm Thick EB10027
Ni-hard Casting Wear Plates Chute Liners 20mm Thick EB10027
video play

Large Image :  Ni-hard Casting Wear Plates Chute Liners 20mm Thick EB10027

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB10027
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 3.1~4.0/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C
Supply Ability: 10000 tons per year
Detailed Product Description
Cast Process: Sand Cast Process Service: OEM
Certification: ISO9001-2018 Material: Iron, Ni-hard Cast Iron
Surface Treatment: Shot Blasting Heat Treatment: Quenching + Tempering
Application: Industry, Mining,power,cement And Ceramic
High Light:

ni hard material

,

ni hard wear plates

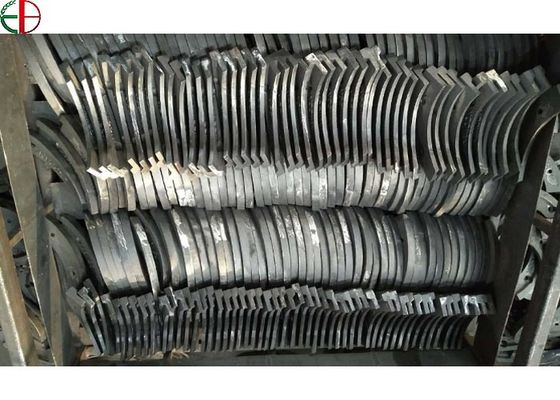

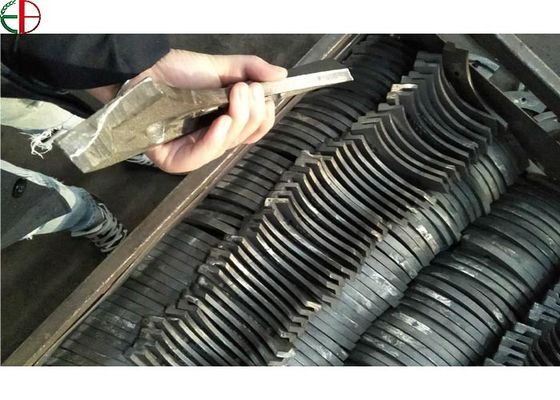

Ni-hard Casting Wear Plates Chute Liners 20mm Thick EB10027

Ni-hard Casting Wear Plates Chute Liners 20mm Thick EB10027 0

Material Grade:Ni-hard Cast Iron

Dimensions:as per drawings



Special Features:

1.Good surface finish;

2.We use Send Cast Process to produce the Plugmill Mixer Blade Parts

with white Iron materials;

3.We do quenching & tempering treatment to achieve better wear performance.

4.Chemistry Standard for Ni-hard White Iron Materials.

ISO 21988/JN/ HBW C Si Mn P S Ni Cr
HBW480Cr2 480 2.5-3.0 0.8 0.8 0.10 0.10 3.0-5.5 1.5-3.0
HBW500Cr9 500 2.4-2.8 1.5-2.2 0.2-0.8 0.06 0.06 4.0-5.5 8.0-10.0
HBW510Cr2 510 30.-3.6 0.8 0.8 0.10 0.10 3.0-5.5 1.5-3.0
HBW555Cr9 555 2.5-3.5 1.5-2.5 0.3-0.8 0.08 0.08 4.5-6.5 8.0-10.0
HBW630Cr9 630 3.2-3.6 1.5-2.2 0.2-0.8 0.06 0.06 4.0-5.5 8.0-10.0



Production Process

Ni-hard Casting Wear Plates Chute Liners 20mm Thick EB10027 1



Ni-hard Casting Wear Plates Chute Liners 20mm Thick EB10027 2

1. 16-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show Ni-hard Casting Wear Plates Chute Liners 20mm Thick EB10027 3



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.
