Product Details:
Payment & Shipping Terms:
|
Material: | High Mn | Dimensions: | Drawing |
---|---|---|---|
Tensile Strength: | 190-220MPa | Brinell Hardness: | 500-540 HB |
Production Process: | Sand Casting And V-method | Application: | Cone Crusher |
High Light: | Mn18Cr2 cone crusher mantle,Mn18Cr2 crusher concave,Manganese cone crusher mantle |

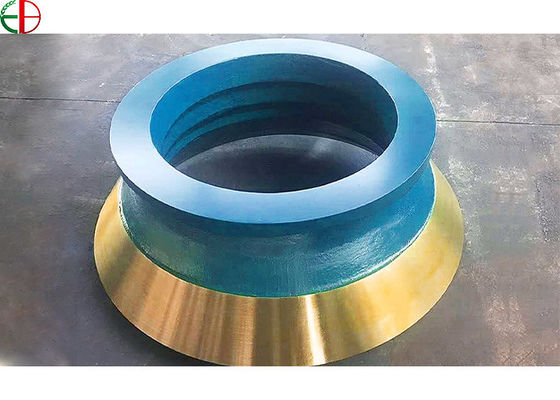

High Mn Crusher Wear Castings Cone Crusher Spare Parts Mantle and Concave
Product Description:
Cone crusher spares mainly have concaves and mantles. EB China can manufacture numerous models of concave and mantles for cone crusher. Materials: the high-manganese, like Mn14Cr2, Mn18Cr2, Mn20Cr2, Mn22Cr2, to ensure the wear-resistance. Wear components for crushing processes are subjected to severe impact and high abrasion, requiring components made from impact resistant and abrasion resistant alloys.
We increase crusher availability through:
1. Increased wear life.
2. Less on-going wear part maintenance .
3. Designs and tools for quicker change out.
4. Sophisticated processing equipment and completed inspection facility EB cone crusher wear parts are engineered to maximize production by retaining the feed opening throughout the part's lifespan and balancing the mantle and bowl liner wear. Cone parts can be custom fit to match any application.
Chemical Composition (%) |
Mn |
C |
Cr |
P |
S |
Si |
Mn18Cr2 |
11-14 |
1.15-1.25 |
1.5-2.5 |
≤0.05 |
≤0.04 |
0.3-0.8 |
Mn18Cr2 |
17-19 |
1.15-1.3 |
1.5-2.5 |
≤0.05 |
≤0.04 |
0.3-0.8 |
Mn22Cr2 |
21-23 |
1.1-1.4 |
1.5-2.5 |
≤0.05 |
≤0.04 |
0.3-0.8 |
