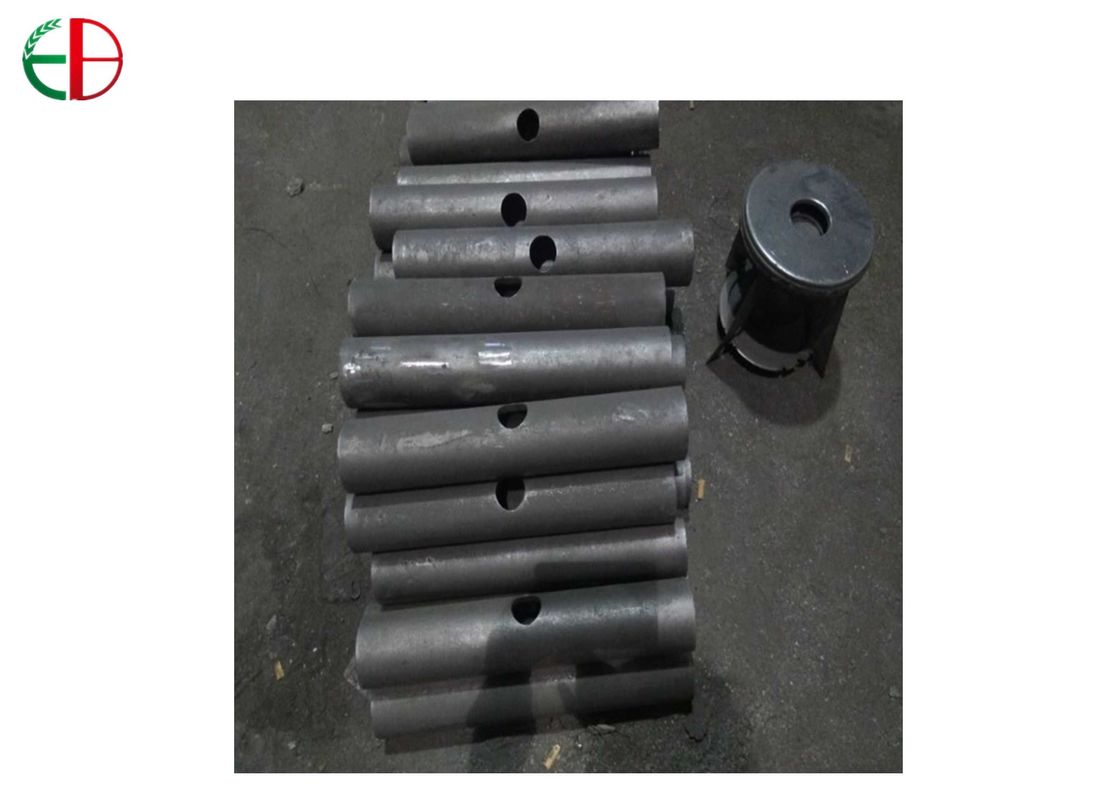

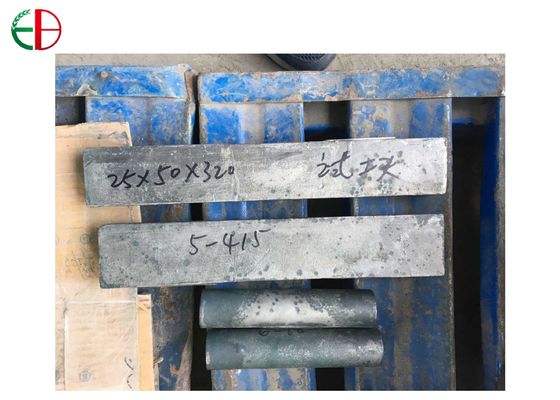

High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability
  • name
  • name
  • name

High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability

MOQ: 30 kg
Price: USD80/kg ~ USD120/kg
Standard Packaging: Pallets
Delivery Period: It depends on the quantity to be ordered.
Payment Method: by T/T or L/C, Western Union
Supply Capacity: 100,000,000.00
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Eternal Bliss
Certification
ISO9001-2008
Model Number
EB26042
Material Grade:
Cobalt Alloy 1,3,6
Hardness:
More Than HRC50
Cast Process:
Wax Lost Process
Coating Process:
SPF Coating, Overlay Welding
Surface Treatment:
Shot Blast
Corrosion Resistance:
High
Highlight:

precision steel casting

,

cobalt based alloys

Product Description

High Temperature Hayness188 Strong Stability Metal Cobalt Castings Squiggle Twigs EB26042

High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability 0

We produce High Temperature Superalloy Castings Parts with centrifugal cast process, investment process and resin sand cast process.


Due to its complex and harsh working environment, the surface integrity of high temperature alloy is very important for its performance.But high temperature alloy is a typical difficult-to-machine materials, microscopic strengthening of its high hardness, the degree of strain hardening, and it has high shear stress and low thermal conductivity, the cutting force of cutting area and cutting temperature is high, often occurs in the process of machining processing surface quality is low, the tool breakage is very serious.Under normal cutting conditions, the surface of high temperature alloy can produce the problems such as hardening layer, residual stress, white layer, black layer and grain deformation layer.



Table 1 : Standard Cobalt cobalt alloy Alloy

  Co Cr C W Mo Ni Si B Fe Mn Others
cobalt alloy 1 BAL 33 2.45 13 - 2.5* 1 - 2.5* 1 -
cobalt alloy 3 BAL 31 2.5 13 - 2.5* 1 - 2.5* 1 -
cobalt alloy 4 BAL 31.5 1 14 - 2.0* 1 - 2.0* 1 -
BAL 28 1.2 5 - 3.0* 1 - 2.5* 1 -
cobalt alloy 12 BAL 29 1.85 9 - 2.5* 1 - 2.5* 1 -
cobalt alloy 20 BAL 33 2.45 17.5 - 2.5* 1 - 2.5* 1 -
cobalt alloy 21 BAL 27 0.25 - 5.5 2.5* 1 - 3.0* 1 -
cobalt alloy 31 BAL 26 0.5 7.5 - 10.5 1 - 2.0* 1 -
cobalt alloy 190 BAL 26 3.3 14 - 1.0 1 - 8.0 0.5 -
cobalt alloy 238 BAL 26 0.1 - 3 - 1 - 20.0 1 -
cobalt alloy 306 BAL 25 0.4 2 - 6.0 1 - 4.0* 1 Nb=5
94 BAL 28 1 19 - 5.0 1 - 2.5* 1 V=1
cobalt alloy F BAL 25.5 1.75 12.25 - 22.5 1 - 1.5* - -
cobalt alloy SF1 BAL 19 1.3 13 - 13 3 2.5 3* 0.5 Cu=0.5
cobalt alloy SF6 BAL 19 0.7 7 - 13 2.5 1.7 3* 0.5 Cu=0.5
cobalt alloy SF12 BAL 19 1 9 - 13 3 2 3* 0.5 Cu=0.5
cobalt alloy SF20 BAL 19 1.5 15 - 13 3 3 2* 0.5 Cu=0.5
TRIBALOY T400 BAL 8 0.1* - 28 3* 2.4 - 3* - -
TRIBALOY T800 BAL 17 0.1* - 28 3* 3.2 - 3* - -
DELORO 15 - - 0.06* - - BAL 2.0 1.05 1.5* 20 Cu=20
DELORO 22 - 0.70 0.10 - - BAL 2.3 1.75 - - -
DELORO 40 - 7.0 0.10 - - BAL 3.5 2.25 - - -
DELORO 50 - 10.25 0.45 - - BAL 4.0 1.85 4.0 - -
DELORO 60 - 14.25 0.6 - - BAL 2.0 3.5 4.0 - -
DELORO 625 - 22 0.1 - 9 BAL - - 5 - -
NISTELLE C - 16.5 0.12* 4.5 17 BAL 0.7 - 6.0 - -
TRIBALOY T700 - 15 0.10* - 32 BAL 3.25 -
  Hastelloy C22®(UNS N06022)(Max.)
  C MN P S Si Cr Ni Mo CO Fe W V
  0.015 0.5 0.02 0.02 0.08 20.0-22.5 Bal. 12.5-14.5 2.5 2.0-6.0 2.5-3.5 0.35
  Hastelloy C276®(UNS N10276)(Max.)
  C MN P S Si Cr Ni Mo CO Fe W V
  0.01 1 0.04 0.03 0.08 14.5-16.5 Bal. 15.0-17.0 2.5 4.0-7.0 3.0-4.5 0.35
  Hastelloyx®(UNS N06002)(Max.)
  C MN P S Si Cr Ni Mo CO Fe W other
  0.05-0.15 1 0.04 0.03 1 20.5-23.0 Bal. 8.0-10.0 0.5-2.5 17.0-20.0 0.2-1.0 /
  Monel 400®(UNS NO4400) (Max.)High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability 1
  C MN S Si Ni Cu Fe
  0.3 2 0.024 0.5 63 min 28-34 2.5
  Monel M400®(UNS NO4400)(Max.)High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability 2
  C MN S Si Ni Cu Fe
  0.3 2 0.024 0.5 63-70 28-34 2.5
  Monel R405®(UNS NO4405)(Max.)High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability 3
  C MN S Si Ni Cu Fe
  0.3 2 0.025-0.06 0.5 63.0min 28-34 2.5
  Monel K500®(UNS NO5500)(Max.)High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability 4
  C MN S Si Ni Cu Ti AI Fe
  0.1 2 0.01 0.5 63min 27-33 0.86 2.3-3.15 2
  Inconel 600(UNS NO6600)(Max.)
  C MN S Si Cr Ni Cu Fe
  0.15 1 0.015 0.5 14-17 72 min 0.5 6.0-10.0
  Inconel 601(UNS NO6601)(Max.)
  C MN Si Cr Ni CO AI Fe
  0.05 0.3 0.2 22.5 61.5min 5 1.4 14.1
  Inconel 718(UNS NO7718)(Max.)
  Cr Ni Mo CO Cb+Ta Ti AI Fe
  19 52.5min 3.05 5 5.13 0.9 0.5 18.5
  Chemical Analysis of Incoloy 800® uns(N08800)
  C Cr Ni Ti AI Fe Grain
  0.1 max 19.0-23.0 30.0-35.0 0.15-0.6 0.15-0.6 39.5min /
  Incoloy800H® UNS(N08810)
  C Cr Ni Ti AI Fe Grain
  0.05-0.1 19.0-23.0 30.0-35.0 0.15-0.60 0.15-0.60 39.5min 5or coarser
  Incoloy800HT® UNS(N08811)
  C Cr Ni Ti AI Fe Grain
  0.06-0.10 19.0-23.0 30.0-35.0 0.25-0.60 0.25-0.60 39.5min 5or coarser



Dimensions:as per drawings







Production Process

Step 1: Getting orders.



Step 2: Process design by technical department



Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)



Step 13: Packing



Step 14: Shipping





High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability 5

1. 16-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability 6



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.





Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Cell: 0086-130 930 23772(What's App)

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172

E-mail: cast@ebcasting.com； ebcastings@163.com

Skype ID:julia.zhu26

QQ: 217 039 6403

High Temperature Haynes Cobalt Alloy Castings Squiggle Twigs Strong Stability 7www.ebcastings.com


Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
