Product Details:
Payment & Shipping Terms:
|
| Material Grade: | UMCo50,cobalt Alloy50, Cobalt Alloy 3,. | Working Temperature: | Up To 1200 Centi-degree |
|---|---|---|---|
| Hardness: | More Than HRc50 | Performance: | Better Wear Property And High Temperature |
| Cast Process: | Wax Lost Process | ||
| High Light: | precision steel casting,cobalt based alloys |
||

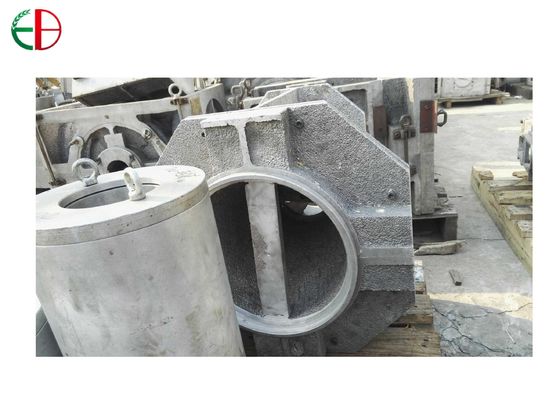

We produce High Temperature Superalloy Castings Parts with centrifugal cast process, investment process and resin sand cast process.
Custom manufacturer of castings made from cobalt base alloy. Methods include centrifugal, four side, lost foam, sand and die casting. Castings are abrasion, acid, corrosion, heat and wear resistant. Prototype and low to high volume production can be done with maximum 1 million units and above. Serves architectural, hydraulic, marine, mining, petrochemical and transportation industries.
Table 1 : Standard Cobalt cobalt alloy Alloy
| Co | Cr | C | W | Mo | Ni | Si | B | Fe | Mn | Others | |
| cobalt alloy 1 | BAL | 33 | 2.45 | 13 | - | 2.5* | 1 | - | 2.5* | 1 | - |
| cobalt alloy 3 | BAL | 31 | 2.5 | 13 | - | 2.5* | 1 | - | 2.5* | 1 | - |
| cobalt alloy 4 | BAL | 31.5 | 1 | 14 | - | 2.0* | 1 | - | 2.0* | 1 | - |
| BAL | 28 | 1.2 | 5 | - | 3.0* | 1 | - | 2.5* | 1 | - | |
| cobalt alloy 12 | BAL | 29 | 1.85 | 9 | - | 2.5* | 1 | - | 2.5* | 1 | - |
| cobalt alloy 20 | BAL | 33 | 2.45 | 17.5 | - | 2.5* | 1 | - | 2.5* | 1 | - |
| cobalt alloy 21 | BAL | 27 | 0.25 | - | 5.5 | 2.5* | 1 | - | 3.0* | 1 | - |
| cobalt alloy 31 | BAL | 26 | 0.5 | 7.5 | - | 10.5 | 1 | - | 2.0* | 1 | - |
| cobalt alloy 190 | BAL | 26 | 3.3 | 14 | - | 1.0 | 1 | - | 8.0 | 0.5 | - |
| cobalt alloy 238 | BAL | 26 | 0.1 | - | 3 | - | 1 | - | 20.0 | 1 | - |
| cobalt alloy 306 | BAL | 25 | 0.4 | 2 | - | 6.0 | 1 | - | 4.0* | 1 | Nb=5 |
| 94 | BAL | 28 | 1 | 19 | - | 5.0 | 1 | - | 2.5* | 1 | V=1 |
| cobalt alloy F | BAL | 25.5 | 1.75 | 12.25 | - | 22.5 | 1 | - | 1.5* | - | - |
| cobalt alloy SF1 | BAL | 19 | 1.3 | 13 | - | 13 | 3 | 2.5 | 3* | 0.5 | Cu=0.5 |
| cobalt alloy SF6 | BAL | 19 | 0.7 | 7 | - | 13 | 2.5 | 1.7 | 3* | 0.5 | Cu=0.5 |
| cobalt alloy SF12 | BAL | 19 | 1 | 9 | - | 13 | 3 | 2 | 3* | 0.5 | Cu=0.5 |
| cobalt alloy SF20 | BAL | 19 | 1.5 | 15 | - | 13 | 3 | 3 | 2* | 0.5 | Cu=0.5 |
| TRIBALOY T400 | BAL | 8 | 0.1* | - | 28 | 3* | 2.4 | - | 3* | - | - |
| TRIBALOY T800 | BAL | 17 | 0.1* | - | 28 | 3* | 3.2 | - | 3* | - | - |
| DELORO 15 | - | - | 0.06* | - | - | BAL | 2.0 | 1.05 | 1.5* | 20 | Cu=20 |
| DELORO 22 | - | 0.70 | 0.10 | - | - | BAL | 2.3 | 1.75 | - | - | - |
| DELORO 40 | - | 7.0 | 0.10 | - | - | BAL | 3.5 | 2.25 | - | - | - |
| DELORO 50 | - | 10.25 | 0.45 | - | - | BAL | 4.0 | 1.85 | 4.0 | - | - |
| DELORO 60 | - | 14.25 | 0.6 | - | - | BAL | 2.0 | 3.5 | 4.0 | - | - |
| DELORO 625 | - | 22 | 0.1 | - | 9 | BAL | - | - | 5 | - | - |
| NISTELLE C | - | 16.5 | 0.12* | 4.5 | 17 | BAL | 0.7 | - | 6.0 | - | - |
| TRIBALOY T700 | - | 15 | 0.10* | - | 32 | BAL | 3.25 | - |
| Hastelloy C22®(UNS N06022)(Max.) | ||||||||||||
| C | MN | P | S | Si | Cr | Ni | Mo | CO | Fe | W | V | |
| 0.015 | 0.5 | 0.02 | 0.02 | 0.08 | 20.0-22.5 | Bal. | 12.5-14.5 | 2.5 | 2.0-6.0 | 2.5-3.5 | 0.35 | |
| Hastelloy C276®(UNS N10276)(Max.) | ||||||||||||
| C | MN | P | S | Si | Cr | Ni | Mo | CO | Fe | W | V | |
| 0.01 | 1 | 0.04 | 0.03 | 0.08 | 14.5-16.5 | Bal. | 15.0-17.0 | 2.5 | 4.0-7.0 | 3.0-4.5 | 0.35 | |
| Hastelloyx®(UNS N06002)(Max.) | ||||||||||||
| C | MN | P | S | Si | Cr | Ni | Mo | CO | Fe | W | other | |
| 0.05-0.15 | 1 | 0.04 | 0.03 | 1 | 20.5-23.0 | Bal. | 8.0-10.0 | 0.5-2.5 | 17.0-20.0 | 0.2-1.0 | / | |
| Monel 400®(UNS NO4400) (Max.) |
||||||||||||
| C | MN | S | Si | Ni | Cu | Fe | ||||||
| 0.3 | 2 | 0.024 | 0.5 | 63 min | 28-34 | 2.5 | ||||||
| Monel M400®(UNS NO4400)(Max.) |
||||||||||||
| C | MN | S | Si | Ni | Cu | Fe | ||||||
| 0.3 | 2 | 0.024 | 0.5 | 63-70 | 28-34 | 2.5 | ||||||
| Monel R405®(UNS NO4405)(Max.) |
||||||||||||
| C | MN | S | Si | Ni | Cu | Fe | ||||||
| 0.3 | 2 | 0.025-0.06 | 0.5 | 63.0min | 28-34 | 2.5 | ||||||
| Monel K500®(UNS NO5500)(Max.) |
||||||||||||
| C | MN | S | Si | Ni | Cu | Ti | AI | Fe | ||||
| 0.1 | 2 | 0.01 | 0.5 | 63min | 27-33 | 0.86 | 2.3-3.15 | 2 | ||||
| Inconel 600(UNS NO6600)(Max.) | ||||||||||||
| C | MN | S | Si | Cr | Ni | Cu | Fe | |||||
| 0.15 | 1 | 0.015 | 0.5 | 14-17 | 72 min | 0.5 | 6.0-10.0 | |||||
| Inconel 601(UNS NO6601)(Max.) | ||||||||||||
| C | MN | Si | Cr | Ni | CO | AI | Fe | |||||
| 0.05 | 0.3 | 0.2 | 22.5 | 61.5min | 5 | 1.4 | 14.1 | |||||
| Inconel 718(UNS NO7718)(Max.) | ||||||||||||
| Cr | Ni | Mo | CO | Cb+Ta | Ti | AI | Fe | |||||
| 19 | 52.5min | 3.05 | 5 | 5.13 | 0.9 | 0.5 | 18.5 | |||||
| Chemical Analysis of Incoloy 800® uns(N08800) | ||||||||||||
| C | Cr | Ni | Ti | AI | Fe | Grain | ||||||
| 0.1 max | 19.0-23.0 | 30.0-35.0 | 0.15-0.6 | 0.15-0.6 | 39.5min | / | ||||||
| Incoloy800H® UNS(N08810) | ||||||||||||
| C | Cr | Ni | Ti | AI | Fe | Grain | ||||||
| 0.05-0.1 | 19.0-23.0 | 30.0-35.0 | 0.15-0.60 | 0.15-0.60 | 39.5min | 5or coarser | ||||||
| Incoloy800HT® UNS(N08811) | ||||||||||||
| C | Cr | Ni | Ti | AI | Fe | Grain | ||||||
| 0.06-0.10 | 19.0-23.0 | 30.0-35.0 | 0.25-0.60 | 0.25-0.60 | 39.5min | 5or coarser | ||||||
|
Dimensions:as per drawings
|
||||||||||||
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)
Step 13: Packing
Step 14: Shipping
1. 16-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
