Hayness Cobalt Alloy Castings Heat treatment Casted Foundry EB9071

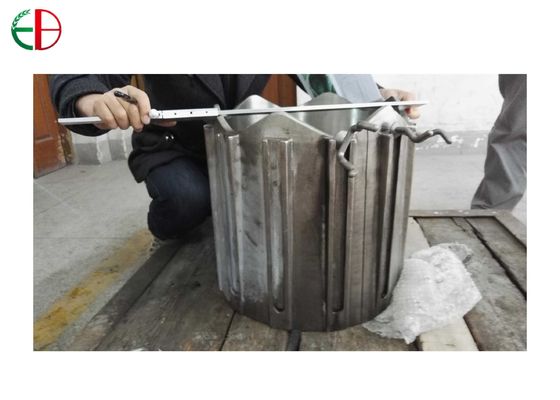

We produce High Temperature Superalloy Castings Parts with centrifugal cast process, investment process and resin sand cast process.
We melt good quality Co-based Alloy Castings with Vacuum Furnaces and Induction Furnaces.

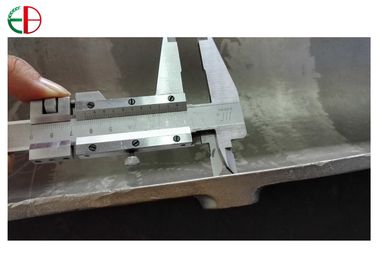

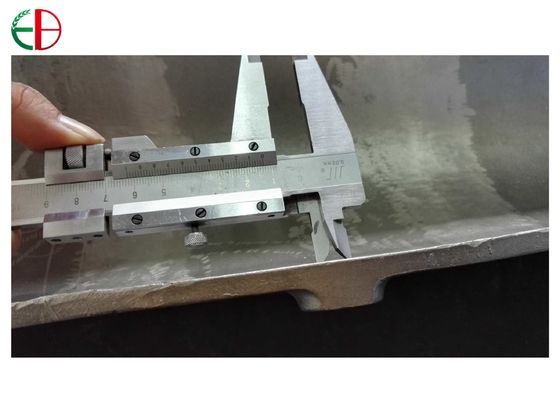

We can cast and machine the hard Cobalt-based Alloy Castings as per the drawings.
We would like to help select suitable Co-based Alloy Grade as per your specific working condition.

Cobalt-based alloys have been in use for producing various components such as vanes or combustion chambers. The material can be implemented as wrought or as precision-cast parts or as centrifugal cast parts. The design of cobalt superalloys, which is aimed at an enhancement of both their oxidation resistance and their hot corrosion resistance, has received considerable impetus recently, especially since the advent of overlay coating techniques and the extensive studies which have been undertaken to elucidate the hot corrosion mechanisms and the effect of alloying elements.

Table 1 : Standard Cobalt

cobalt alloy Alloy

	Hastelloy C22®(UNS N06022)(Max.)
	C	MN	P	S	Si	Cr	Ni	Mo	CO	Fe	W	V
	0.015	0.5	0.02	0.02	0.08	20.0-22.5	Bal.	12.5-14.5	2.5	2.0-6.0	2.5-3.5	0.35
	Hastelloy C276®(UNS N10276)(Max.)
	C	MN	P	S	Si	Cr	Ni	Mo	CO	Fe	W	V
	0.01	1	0.04	0.03	0.08	14.5-16.5	Bal.	15.0-17.0	2.5	4.0-7.0	3.0-4.5	0.35
	Hastelloyx®(UNS N06002)(Max.)
	C	MN	P	S	Si	Cr	Ni	Mo	CO	Fe	W	other
	0.05-0.15	1	0.04	0.03	1	20.5-23.0	Bal.	8.0-10.0	0.5-2.5	17.0-20.0	0.2-1.0	/
	Monel 400®(UNS NO4400) (Max.)
	C	MN	S	Si	Ni	Cu	Fe
	0.3	2	0.024	0.5	63 min	28-34	2.5
	Monel M400®(UNS NO4400)(Max.)
	C	MN	S	Si	Ni	Cu	Fe
	0.3	2	0.024	0.5	63-70	28-34	2.5
	Monel R405®(UNS NO4405)(Max.)
	C	MN	S	Si	Ni	Cu	Fe
	0.3	2	0.025-0.06	0.5	63.0min	28-34	2.5
	Monel K500®(UNS NO5500)(Max.)
	C	MN	S	Si	Ni	Cu	Ti	AI	Fe
	0.1	2	0.01	0.5	63min	27-33	0.86	2.3-3.15	2
	Inconel 600(UNS NO6600)(Max.)
	C	MN	S	Si	Cr	Ni	Cu	Fe
	0.15	1	0.015	0.5	14-17	72 min	0.5	6.0-10.0
	Inconel 601(UNS NO6601)(Max.)
	C	MN	Si	Cr	Ni	CO	AI	Fe
	0.05	0.3	0.2	22.5	61.5min	5	1.4	14.1
	Inconel 718(UNS NO7718)(Max.)
	Cr	Ni	Mo	CO	Cb+Ta	Ti	AI	Fe
	19	52.5min	3.05	5	5.13	0.9	0.5	18.5
	Chemical Analysis of Incoloy 800® uns(N08800)
	C	Cr	Ni	Ti	AI	Fe	Grain
	0.1 max	19.0-23.0	30.0-35.0	0.15-0.6	0.15-0.6	39.5min	/
	Incoloy800H® UNS(N08810)
	C	Cr	Ni	Ti	AI	Fe	Grain
	0.05-0.1	19.0-23.0	30.0-35.0	0.15-0.60	0.15-0.60	39.5min	5or coarser
	Incoloy800HT® UNS(N08811)
	C	Cr	Ni	Ti	AI	Fe	Grain
	0.06-0.10	19.0-23.0	30.0-35.0	0.25-0.60	0.25-0.60	39.5min	5or coarser
