| MOQ: | 500kg |
| Price: | USD2/kg ~ USD3 |
| Standard Packaging: | 500kg |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | by T/T or L/C, Western Union |
| Supply Capacity: | 20,000tons |

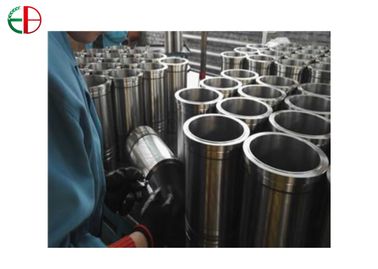

HT Cast Sleeves
HT Cast Sleeves are made from different materials,such as Gray Iron, Ductile Iron for diesel engine cylinders.
Outstanding Features:
1.We use Spetrometer to control the chemlcal elements；
2.We check the matrix with our mlcroscope;
3.We can do fully machining on the sleeve parts.
4.We adopt Centrifugal Cast process with higher efficiency to shortening the process time;
5.Production Process: centrifugal cast process + machining process
7.We can make the cast sleeves as per customer design.
8.Diameter: 50mm - 500mm; Length: less than 400mm.
9.Material grades:
Chemistry standard for Ductile Iron Castings;
| S/N | C | Si | Mn | S | P | Mg | Re |
| QT400-18 | 3.6-3.8 | 2.3-2.7 | ≤0.5 | ≤0.05 | ≤0.03 | 0.03-0.05 | 0.02-0.03 |
| QT500-7 | 3.4-3.9 | 2.0-2.9 | ≤0.6 | ≤0.03 | ≤0.05 | 0.03-0.10 | 0.03-0.10 |
| QT600-3 | 3.4-3.8 | 2.0-2.8 | 0.3-0.7 | ≤0.03 | ≤0.05 | 0.035-0.05 | 0.025-0.045 |
| QT700-2 | 3.5-4.0 | 2.30-2.6 | 0.5-0.9 | ≤0.03 | ≤0.05 | 0.035-0.065 | 0.035-0.065 |
Material Grade for Gray Iron:
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
1. 16-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172
Email : ebcastings@163.com；cast@ebcastings.com
Skype ID:julia.zhu26
QQ: 217 039 6403
What's app: 0086-130 930 23772
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
Our Inspection Video:
video
video
video
video
video
|
|
