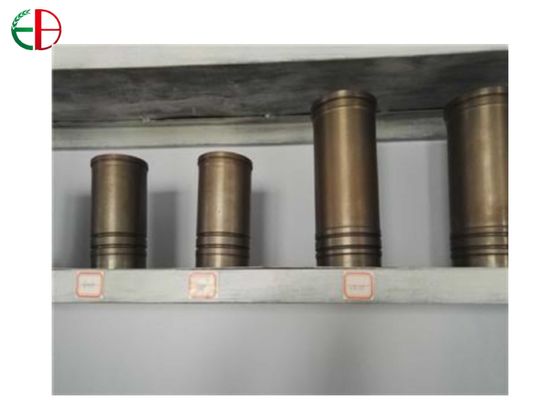

High Alloy Centrifugally Cast Tubes Grey Cast Iron Full Machined EB12215

High Alloy Centrifugally Cast Tubes Grey Cast Iron Full Machined EB12215
High Alloy Centrifugally Cast Tubes Grey Cast Iron Full Machined EB12215 High Alloy Centrifugally Cast Tubes Grey Cast Iron Full Machined EB12215 High Alloy Centrifugally Cast Tubes Grey Cast Iron Full Machined EB12215 High Alloy Centrifugally Cast Tubes Grey Cast Iron Full Machined EB12215 High Alloy Centrifugally Cast Tubes Grey Cast Iron Full Machined EB12215

Large Image :  High Alloy Centrifugally Cast Tubes Grey Cast Iron Full Machined EB12215

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB12215
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: USD2 ~ USD3/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C, Western Union, Western Union,
Supply Ability: 20,000 tons
Detailed Product Description
Material Grade: BLANK OF PRINTED Working Temperature: Up To 1300℃
Cast Process: Wax Lost Process Surface Finish: As Cast As Condition
Application: Auto,Precision Gear, Heat Treatment Industries Certification: ISO9001
High Light:

centrifugally cast pipe

,

centrifugally cast iron pipe

High Alloy Centrifugally Cast Tubes Grey Cast Iron Full Machined EB12215






Big High Alloy Furnace Rollers EB13082

Spun cast sleeves typically have much finer ASTM type D flakes throughout the bulk of the tube wall, with a small amount of type C or A flakes on the inside surface of the pipe.Pit cast iron parts typically has large ASTM type C flakes (ASTM, 1998)Type D graphite flakes in the spun cast grey iron tubes produce less initial plastic deformation than the larger type C flakes in the pit cast iron tube.



Our Gray Iron compressor parts 120 to 350 mm in diameter and 300 to 500 mm long are spun-cast on spindle machines. These centrifugal cast machines can be operated at anywhere from 540 to 1260 rpm.



Outstanding Features:



1.We use Spetrometer to control the chemlcal elements

2.We check the matrix with our mlcroscope;

3.We can do fully machining on the sleeve parts.

4.We adopt Centrifugal Cast process with higher efficiency to shortening the process time;

5.Production Process: centrifugal cast process + machining process

7.We can make the cast sleeves as per customer design.

8.Diameter: 50mm - 500mm; Length: less than 400mm.

9.Material Grades:


Grade

Wall Thickness

/mm

C Si Mn

P

S

HT100 3.4~3.9 2.1~2.6 0.5~0.8 0.3 0.15
HT150

<30

30~50

>50

3.3~3.5

3.2~3.5

3.2~3.5

2.0~2.4

1.9~2.3

1.8~2.2

0.5~0.8

0.5~0.8

0.6~0.9

0.2

0.2

0.2

0.12

0.12

0.12

HT200

<30

30~50

>50

3.2~3.5

3.1~3.4

3.0~3.3

1.6~2.0

1.5~1.8

1.4~1.6

1.7~0.9

0.8~1.0

0.8~1.0

0.15

0.15

0.15

0.12

0.12

0.12

HT250

<30

30~50

>50

3.0~3.3

2.9~3.2

2.8~3.1

1.4~1.7

1.3~1.6

1.2~1.5

0.8~1.0

0.9~1.1

1.0~1.2

0.15

0.15

0.15

0.12

0.12

0.12

HT300

<30

30~50

>50

2.9~3.2

2.9~3.2

2.8~3.1

1.4~1.7

1.2~1.5

1.1~1.4

0.8~1.0

0.9~1.1

1.0~1.2

0.15

0.15

0.15

0.10

0.10

0.10



Grey Iron Castings Hardness

Gray Iron Grade Hardness Grade

Hardness Range

HB

Metallography
HT100 H145 ≤170 Ferrite
HT150 H175 150~200 Ferrite + Pearlite
HT200 H195 170~220 Pearlite
HT250 H215 190~240 Pearlite
HT300 H235 210~260 Pearlite(Inoculated Cast Iron)
HT350 H255 230~280 Pearlite(Inoculated Cast Iron)

Production Flow Chart

Step 1: Getting orders.



Step 2: Process design by technical department



Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)



Step 13: Packing



Step 14: Shipping



Big High Alloy Furnace Rollers EB13082

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.



Our Trade Show Big High Alloy Furnace Rollers EB13082



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.
