| MOQ: | 500kg |
| Price: | USD2 ~ USD3/kg |
| Standard Packaging: | 500kg |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | by T/T or L/C, Western Union, Western Union |
| Supply Capacity: | 100,000,000.00 |

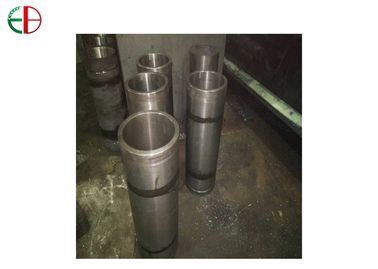

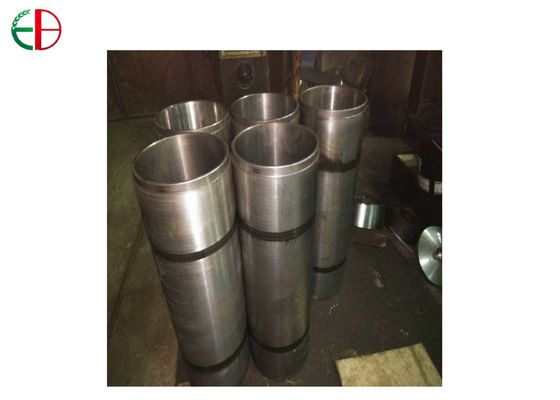

Spun cast sleeves typically have much finer ASTM type D flakes throughout the bulk of the tube wall, with a small amount of type C or A flakes on the inside surface of the pipe.Pit cast iron parts typically has large ASTM type C flakes (ASTM, 1998)Type D graphite flakes in the spun cast grey iron tubes produce less initial plastic deformation than the larger type C flakes in the pit cast iron tube.
A permanent metal die has a cylindrical cavity for centrifugally casting hollow cylindrical bodies.It also has an insulating refractory coating on the inner surface. Then the coating has a relatively smooth inner surface and has cavities with generally circular openings at its inner surface and generally isolated from one another and extending into the body of the coating to form elongated thin spines of the metal on the outer surface of the casting.
Outstanding Features:
1.We use Spetrometer to control the chemlcal elements；
2.We check the matrix with our mlcroscope;
3.We can do fully machining on the sleeve parts.
4.We adopt Centrifugal Cast process with higher efficiency to shortening the process time;
5.Production Process: centrifugal cast process + machining process
7.We can make the cast sleeves as per customer design.
8.Diameter: 50mm - 500mm; Length: less than 400mm.
9.Material grades:
Grey Iron Castings Hardness
| Gray Iron Grade | Hardness Grade |
Hardness Range HB |
Metallography |
| HT100 | H145 | ≤170 | Ferrite |
| HT150 | H175 | 150~200 | Ferrite + Pearlite |
| HT200 | H195 | 170~220 | Pearlite |
| HT250 | H215 | 190~240 | Pearlite |
| HT300 | H235 | 210~260 | Pearlite(Inoculated Cast Iron) |
| HT350 | H255 | 230~280 | Pearlite(Inoculated Cast Iron) |
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
1. 16-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172
E-mail:cast@ebcastings.com； ebcastings@163.com
Skype ID:julia.zhu26
QQ: 217 039 6403
What's app: 0086-130 930 23772
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
Our Inspection Video:
|
|
