Water Cooling Centrifugally Cast Tubes Furnace Rolls For Continuous Quenching Ovens

Product Description

Water cooling furnace rollers for continuous quenching ovens  EB13118

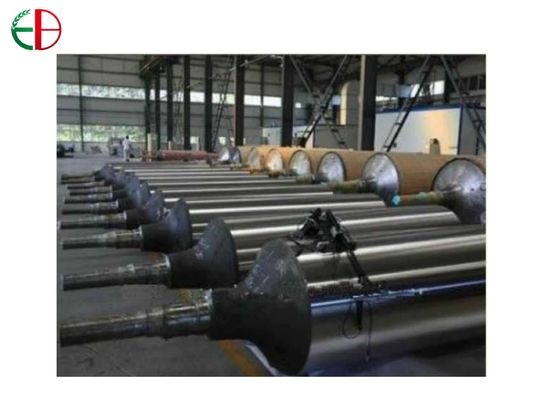

Furnace Rollers

EB furnace rollers made from different materials,such as stainless steel,Ni-Cr Iron base heat-resistant steel,for heat treatment furnaces with service temperature up to 1600℃(2912°F).

EB’s furnace rollers are made for different heat treatment processes for steel, aluminium,Zinc Alloy and other metallic materials,which have been widely used in the following applications:

Quenching furnaces

Annealing furnaces

Carburizing furnaces

Galvanizing furnaces

Sintering furnaces

Hardening furnaces

Outstanding Features:

1. Resistance to high temperature: Up to 1600℃；

2.Resistance to deformation in carburizing,nitriding,neutral and oxidizing atmospheres

3.Maximizing heat flux

4.Shortening the process time

5.Longer service life and better installation effects because of more scientific process design

6.Production Process: centrifugal cast process + investment cast process + machining process + welding process

7.We can make the furnace rollers as per customer design.

8.Diameter: 50mm - 1600mm; Length: less than 3m.

9.Material grades:

Less than 750℃: Cr20Ni10 ;

750~850℃: Cr20Ni14;

850~950℃: Cr25Ni20Si2, SCH21;

950~1000℃: GX40NiCrSi38-18,1.4865;

1000~1100℃: GX40NiCrSiNb38-18,1.4849;

1100~1200℃: G-NiCr28W, 2.4879.
