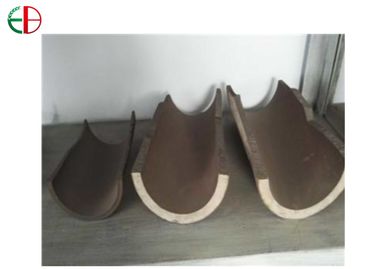

ASTM HT150 Centrifugally Cast Tubes Horizontal Grey Iron Precise Casting Tube EB12225

ASTM HT150 Centrifugally Cast Tubes  Horizontal Grey Iron Precise Casting Tube EB12225
ASTM HT150 Centrifugally Cast Tubes  Horizontal Grey Iron Precise Casting Tube EB12225 ASTM HT150 Centrifugally Cast Tubes  Horizontal Grey Iron Precise Casting Tube EB12225 ASTM HT150 Centrifugally Cast Tubes  Horizontal Grey Iron Precise Casting Tube EB12225 ASTM HT150 Centrifugally Cast Tubes  Horizontal Grey Iron Precise Casting Tube EB12225 ASTM HT150 Centrifugally Cast Tubes  Horizontal Grey Iron Precise Casting Tube EB12225

Large Image :  ASTM HT150 Centrifugally Cast Tubes Horizontal Grey Iron Precise Casting Tube EB12225

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB12225
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: USD2~USD3/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C, Western Union,
Supply Ability: 20,000 tons per year
Detailed Product Description
Material Grade: HT100, HT150, HT200, HT250,HT300, HT350 Cast Process: Centrifugal Cast
Working Temperature: Up To 1300℃ Certification: ISO9001
Surface Finish: As Cast As Condition Application: Auto,Precision Gear, Heat Treatment Industries
High Light:

centrifugal casting products

,

centrifugally cast iron pipe

ASTM HT150 Centrifugally Cast Tubes Horizontal Grey Iron Precise Casting Tube EB12225



Big High Alloy Furnace Rollers EB13082

The centrifugal cast dies are usually coated with some sort of refractory liner, both for the purpose of protecting the dies from the action of the heat of the molten metal and for the purpose of preventing too rapid cooling of the metal. If gray cast iron were the metal being cast, such rapid cooling would result in the formation of chills in the castings, which would render the metallurgical structure of the casting unusable for most purposes.



As you know the tubular metal castings are made in permanent cylindrical metal dies.

A metal casting tube is centrifugally formed in a metal die.The die comprises an annular hollow cylindrical body of metal having spines on its outer cylindrical surface generally isolated from one another and extending generally radially, and a refractory coating having a substantially uniform thickness at least equal to the maximum length of said spines and interloclied with said spines whereby said coating is secured to the body for removal of the coating from the die along with the body.



Outstanding Features:



1.We use Spetrometer to control the chemlcal elements

2.We check the matrix with our mlcroscope;

3.We can do fully machining on the sleeve parts.

4.We adopt Centrifugal Cast process with higher efficiency to shortening the process time;

5.Production Process: centrifugal cast process + machining process

7.We can make the cast sleeves as per customer design.

8.Diameter: 50mm - 500mm; Length: less than 400mm.

9.Material grades:


Grade

Wall Thickness

/mm

C Si Mn

P

S

HT100 3.4~3.9 2.1~2.6 0.5~0.8 0.3 0.15
HT150

<30

30~50

>50

3.3~3.5

3.2~3.5

3.2~3.5

2.0~2.4

1.9~2.3

1.8~2.2

0.5~0.8

0.5~0.8

0.6~0.9

0.2

0.2

0.2

0.12

0.12

0.12

HT200

<30

30~50

>50

3.2~3.5

3.1~3.4

3.0~3.3

1.6~2.0

1.5~1.8

1.4~1.6

1.7~0.9

0.8~1.0

0.8~1.0

0.15

0.15

0.15

0.12

0.12

0.12

HT250

<30

30~50

>50

3.0~3.3

2.9~3.2

2.8~3.1

1.4~1.7

1.3~1.6

1.2~1.5

0.8~1.0

0.9~1.1

1.0~1.2

0.15

0.15

0.15

0.12

0.12

0.12

HT300

<30

30~50

>50

2.9~3.2

2.9~3.2

2.8~3.1

1.4~1.7

1.2~1.5

1.1~1.4

0.8~1.0

0.9~1.1

1.0~1.2

0.15

0.15

0.15

0.10

0.10

0.10



Grey Iron Castings Hardness

Gray Iron Grade Hardness Grade

Hardness Range

HB

Metallography
HT100 H145 ≤170 Ferrite
HT150 H175 150~200 Ferrite + Pearlite
HT200 H195 170~220 Pearlite
HT250 H215 190~240 Pearlite
HT300 H235 210~260 Pearlite(Inoculated Cast Iron)
HT350 H255 230~280 Pearlite(Inoculated Cast Iron)



Production Flow Chart

Step 1: Getting orders.



Step 2: Process design by technical department



Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)



Step 13: Packing



Step 14: Shipping











Big High Alloy Furnace Rollers EB13082

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.



Our Trade Show Big High Alloy Furnace Rollers EB13082



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.
