| MOQ: | 500kg |
| Price: | USD2~USD3/kg |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | by T/T or L/C, Western Union, Western Union |
| Supply Capacity: | 20,000 tons per year |

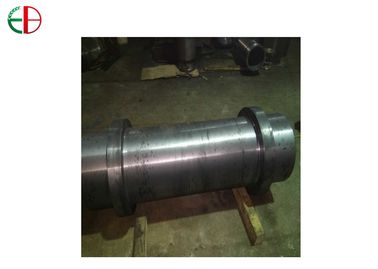

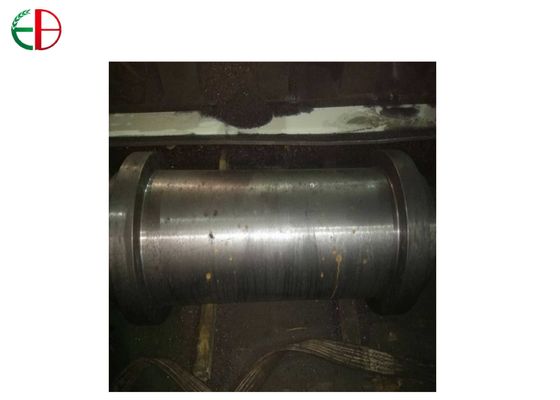

Spun cast sleeves typically have much finer ASTM type D flakes throughout the bulk of the tube wall, with a small amount of type C or A flakes on the inside surface of the pipe.Pit cast iron parts typically has large ASTM type C flakes (ASTM, 1998)Type D graphite flakes in the spun cast grey iron tubes produce less initial plastic deformation than the larger type C flakes in the pit cast iron tube.
Outstanding Features:
1.We use Spetrometer to control the chemlcal elements；
2.We check the matrix with our mlcroscope;
3.We can do fully machining on the sleeve parts.
4.We adopt Centrifugal Cast process with higher efficiency to shortening the process time;
5.Production Process: centrifugal cast process + machining process
7.We can make the cast sleeves as per customer design.
8.Diameter: 50mm - 500mm; Length: less than 400mm.
9.Material grades:
| Grade | Wall Thickness | C | Si | Mn | P | S |
| HT100 | – | 3.4~3.9 | 2.1~2.6 | 0.5~0.8 | 0.3 | 0.15 |
| HT150 | <30 | 3.3~3.5 | 2.0~2.4 | 0.5~0.8 | 0.2 | 0.12 |
| HT200 | <30 | 3.2~3.5 | 1.6~2.0 | 1.7~0.9 | 0.15 | 0.12 |
| HT250 | <30 | 3.0~3.3 | 1.4~1.7 | 0.8~1.0 | 0.15 | 0.12 |
| HT300 | <30 | 2.9~3.2 | 1.4~1.7 | 0.8~1.0 | 0.15 | 0.10 |
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
1. 16-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172
Email:cast@ebcastings.com,ebcastings@163.com
Skype ID:julia.zhu26
QQ: 217 039 6403
What's app: 0086-130 930 23772
www.ebcastings.com
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
Our Inspection Video:
https://www.youtube.com/watch?v=3Gr9ThIUgIA
