| MOQ: | 500kg |
| Price: | USD1~USD3/kg |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | by T/T or L/C, Western Union, Western Union |
| Supply Capacity: | 20,000 tons per year |

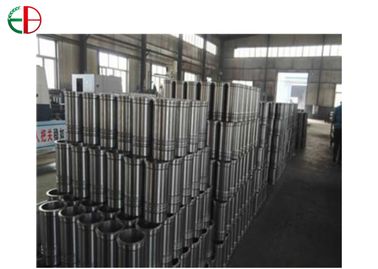

Heat-treatment Iron Centrifugally Cast Tubes are utilized in various high temperature applications. Typically the service temperature ranges between 400 to 1300 degrees centigrade.
Heat-treatment Iron Centrifugally Cast Tubes are used as stressed components in many of these demanding environments.
Benefits of the centrifugal casting process;
1.Solidification happens at up to 120 times the gravitational acceleration, and consequently yields a highly compressed structure.
2.The process is gravity and pressure independent.
3.Mechanical properties substantially better as compared to static casting (can be compared with forged parts)
4.The Directional solidification of the casting, yielding a very uniform structure, free from inclusions and blow holes.
5.Practically any material can be cast ranging from low-alloy to iron-free
materials, e.g. Cr-Ni-Mo.
6.Diameter: 50mm - 500mm; Length: less than 400mm.
7.Material Grades:
Composition | C | Si | Mn | Cr | Ni | S | P |
1.4823 | 0.35~0.50 | 1.0~2.5 | ≦1.50 | 25.0-28.0 | 3.5-5.5 | ≦0.03 | ≦ 0.035 |
1.4825 | 0.15-0.30 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 8.0-10.0 | ≦0.03 | ≦ 0.035 |
1.4826 | 0.30-0.50 | 1.0~2.5 | ≦1.50 | 21.0-23.0 | 9.0-11.0 | ≦0.03 | ≦ 0.035 |
1.4832 | 0.15-0.30 | 1.0~2.5 | ≦1.50 | 19.0-21.0 | 13.0-15.0 | ≦0.03 | ≦ 0.035 |
1.4837 | 0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 11.0-14.0 | ≦0.03 | ≦ 0.035 |
1.4848 | 0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 19.0-21.0 | ≦0.03 | ≦ 0.035 |
1.4865 | 0.30-0.50 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 36.0-39.0 | ≦0.03 | ≦ 0.035 |
1.4857 | 0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 34.0-36.0 | ≦0.03 | ≦ 0.035 |
1.4855 | 0.30-0.40 | 0.5-2.0 | ≦1.50 | 23.0-25.0 | 23.0-25.0 | ≦0.03 | ≦ 0.035 |
1.4849 | 0.30-0.50 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 36.0-39.0 | ≦0.03 | ≦ 0.035 |
1.4852 | 0.35-0.45 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 33.0-35.0 | ≦0.03 | ≦ 0.035 |
| G-CoCr28 | 0.10-0.20 | 1.0~2.5 | ≦1.50 | 27.0-30.0 | - | ≦0.03 | ≦ 0.035 |
| G-CoCr28W | 0.35-0.50 | 0.5-2.0 | ≦1.50 | 27.0-30.0 | 47.0-50.0 | ≦0.03 | ≦ 0.035 |
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
Mat
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172
Email:cast@ebcastings.com;ebcastings@163.com
Skype ID:julia.zhu26
QQ: 217 039 6403
What's app: 0086-130 930 23772
www.ebcastings.com
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
