MOQ: | 500kg |
Price: | USD2~USD3/kg |
Standard Packaging: | Pallets |
Delivery Period: | It depends on the quantity to be ordered. |
Payment Method: | by T/T or L/C, Western Union |
Supply Capacity: | 20,000 tons per year |
The centrifugal cast dies are usually coated with some sort of refractory liner, both for the purpose of protecting the dies from the action of the heat of the molten metal and for the purpose of preventing too rapid cooling of the metal. If gray cast iron were the metal being cast, such rapid cooling would result in the formation of chills in the castings, which would render the metallurgical structure of the casting unusable for most purposes.
As you know the tubular metal castings are made in permanent cylindrical metal dies.
A metal casting tube is centrifugally formed in a metal die.The die comprises an annular hollow cylindrical body of metal having spines on its outer cylindrical surface generally isolated from one another and extending generally radially, and a refractory coating having a substantially uniform thickness at least equal to the maximum length of said spines and interloclied with said spines whereby said coating is secured to the body for removal of the coating from the die along with the body.
Outstanding Features:
1.We use Spetrometer to control the chemlcal elements;
2.We check the matrix with our mlcroscope;

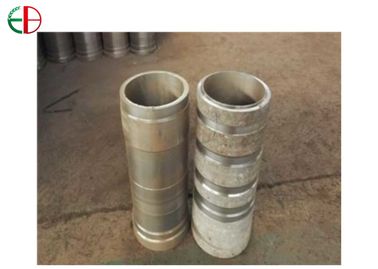

3.We can do fully machining on the sleeve parts.
4.We adopt Centrifugal Cast process with higher efficiency to shortening the process time;
5.Production Process: centrifugal cast process + machining process
7.We can make the cast sleeves as per customer design.
8.Diameter: 50mm - 500mm; Length: less than 400mm.
9.Material Grades:
Grade | Wall Thickness | C | Si | Mn | P | S |
HT100 | – | 3.4~3.9 | 2.1~2.6 | 0.5~0.8 | 0.3 | 0.15 |
HT150 | <30 | 3.3~3.5 | 2.0~2.4 | 0.5~0.8 | 0.2 | 0.12 |
HT200 | <30 | 3.2~3.5 | 1.6~2.0 | 1.7~0.9 | 0.15 | 0.12 |
HT250 | <30 | 3.0~3.3 | 1.4~1.7 | 0.8~1.0 | 0.15 | 0.12 |
HT300 | <30 | 2.9~3.2 | 1.4~1.7 | 0.8~1.0 | 0.15 | 0.10 |
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
1. 16-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172
Email:cast@ebcastings.com;ebcastings@163.com
Skype ID:julia.zhu26
QQ: 217 039 6403
What's app: 0086-130 930 23772
www.ebcastings.com
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
Our Inspection Video:
https://www.youtube.com/watch?v=3Gr9ThIUgIA
