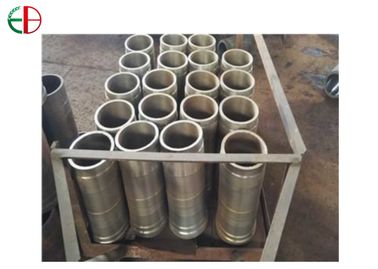

HT200 Centrifugally Cast Tubes / Iron Cylinder Liner Sleeves For Diesel Engines

HT200 Centrifugally Cast Tubes / Iron Cylinder Liner Sleeves For Diesel Engines
HT200 Centrifugally Cast Tubes / Iron Cylinder Liner Sleeves For Diesel Engines HT200 Centrifugally Cast Tubes / Iron Cylinder Liner Sleeves For Diesel Engines HT200 Centrifugally Cast Tubes / Iron Cylinder Liner Sleeves For Diesel Engines HT200 Centrifugally Cast Tubes / Iron Cylinder Liner Sleeves For Diesel Engines HT200 Centrifugally Cast Tubes / Iron Cylinder Liner Sleeves For Diesel Engines

Large Image :  HT200 Centrifugally Cast Tubes / Iron Cylinder Liner Sleeves For Diesel Engines

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB13186
Payment & Shipping Terms:
Minimum Order Quantity: 500kg
Price: USD2~USD3/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C, Western Union
Supply Ability: 20,000 tons per year
Detailed Product Description
Material Grade: HT100, HT150, HT200, HT250,HT300, HT350 Cast Process: Centrifugal Cast
Working Temperature: Up To 1300℃ Certification: ISO9001
High Light:

centrifugally cast pipe

,

centrifugally cast iron pipe

HT200 Centrifugal Cast Tubes Iron Cylinder Liner Sleeves for Disel Engines EB13186

Big High Alloy Furnace Rollers EB13082

Spun cast sleeves typically have much finer ASTM type D flakes throughout the bulk of the tube wall, with a small amount of type C or A flakes on the inside surface of the pipe.Pit cast iron parts typically has large ASTM type C flakes (ASTM, 1998)Type D graphite flakes in the spun cast grey iron tubes produce less initial plastic deformation than the larger type C flakes in the pit cast iron tube.


Our Gray Iron compressor parts 120 to 350 mm in diameter and 300 to 500 mm long are spun-cast on spindle machines. These centrifugal cast machines can be operated at anywhere from 540 to 1260 rpm.
As you know the tubular metal castings are made in permanent cylindrical metal dies.



Material Grades:





Grade

Wall Thickness
/mm

C Si Mn

P

S

HT100 3.4~3.9 2.1~2.6 0.5~0.8 0.3 0.15
HT150

<30
30~50
>50

3.3~3.5
3.2~3.5
3.2~3.5

2.0~2.4
1.9~2.3
1.8~2.2

0.5~0.8
0.5~0.8
0.6~0.9

0.2
0.2
0.2

0.12
0.12
0.12

HT200

<30
30~50
>50

3.2~3.5
3.1~3.4
3.0~3.3

1.6~2.0
1.5~1.8
1.4~1.6

1.7~0.9
0.8~1.0
0.8~1.0

0.15
0.15
0.15

0.12
0.12
0.12

HT250

<30
30~50
>50

3.0~3.3
2.9~3.2
2.8~3.1

1.4~1.7
1.3~1.6
1.2~1.5

0.8~1.0
0.9~1.1
1.0~1.2

0.15
0.15
0.15

0.12
0.12
0.12

HT300

<30
30~50
>50

2.9~3.2
2.9~3.2
2.8~3.1

1.4~1.7
1.2~1.5
1.1~1.4

0.8~1.0
0.9~1.1
1.0~1.2

0.15
0.15
0.15

0.10
0.10
0.10



Production Flow Chart

Step 1: Getting orders.

Step 2: Process design by technical department

Step 3: Purchase of raw materials and pattern making &checking

Step 4: Inspection of raw materials

Step 5: Melting by middle-frequency induction furnaces

Step 6: Ladle analysis by Spectrometer

Step 7: De-oxidization, slag-removal, tapping

Step 8: Pouring

Step 9: Openning & fettling

Step 10: Surface & dimensional check

Step 11: Heat treatment

Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)

Step 13: Packing

Step 14: Shipping



Big High Alloy Furnace Rollers EB13082
1. 18-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.


Our Trade Show Big High Alloy Furnace Rollers EB13082

Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
