Product Details:
Payment & Shipping Terms:
|
| Material Grade: | HT100, HT150, HT200, HT250,HT300, HT350 | Cast Process: | Centrifugal Cast |
|---|---|---|---|
| Working Temperature: | Up To 1300 ℃ | Certification: | ISO9001 |
| High Light: | centrifugally cast pipe,centrifugally cast iron pipe |
||

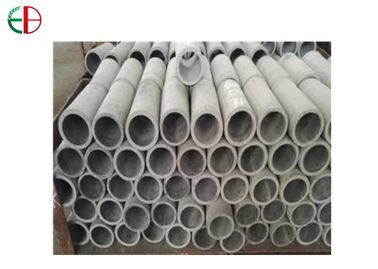

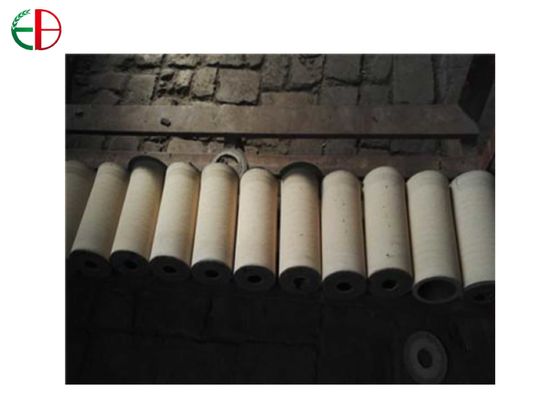

HT Cast Sleeves
Our Gray Iron compressor parts 120 to 350 mm in diameter and 300 to 500 mm long are spun-cast on spindle machines. These centrifugal cast machines can be operated at anywhere from 540 to 1260 rpm.
The centrifugal castings are tubular metal articles cast in permanent metal dies and particularly to articles of cast iron.
The spun castings are free of defects such as pin holes, dents or inclusion of foreign matter, and which have a relatively even outer surface conforming closely to a desired diameter, so that the castings may be machined to a finished size with a minimum removal of stock.
Outstanding Features:
1.We use Spetrometer to control the chemlcal elements；
2.We check the matrix with our mlcroscope;
3.We can do fully machining on the sleeve parts.
4.We adopt Centrifugal Cast process with higher efficiency to shortening the process time;
5.Production Process: centrifugal cast process + machining process
7.We can make the cast sleeves as per customer design.
8.Diameter: 50mm - 500mm; Length: less than 400mm.
9.Material Grades:
| Grade |
Wall Thickness /mm |
C | Si | Mn |
P ≤ |
S ≤ |
| HT100 | – | 3.4~3.9 | 2.1~2.6 | 0.5~0.8 | 0.3 | 0.15 |
| HT150 |
<30 30~50 >50 |
3.3~3.5 3.2~3.5 3.2~3.5 |
2.0~2.4 1.9~2.3 1.8~2.2 |
0.5~0.8 0.5~0.8 0.6~0.9 |
0.2 0.2 0.2 |
0.12 0.12 0.12 |
| HT200 |
<30 30~50 >50 |
3.2~3.5 3.1~3.4 3.0~3.3 |
1.6~2.0 1.5~1.8 1.4~1.6 |
1.7~0.9 0.8~1.0 0.8~1.0 |
0.15 0.15 0.15 |
0.12 0.12 0.12 |
| HT250 |
<30 30~50 >50 |
3.0~3.3 2.9~3.2 2.8~3.1 |
1.4~1.7 1.3~1.6 1.2~1.5 |
0.8~1.0 0.9~1.1 1.0~1.2 |
0.15 0.15 0.15 |
0.12 0.12 0.12 |
| HT300 |
<30 30~50 >50 |
2.9~3.2 2.9~3.2 2.8~3.1 |
1.4~1.7 1.2~1.5 1.1~1.4 |
0.8~1.0 0.9~1.1 1.0~1.2 |
0.15 0.15 0.15 |
0.10 0.10 0.10 |
Grey Iron Castings Hardness
| Gray Iron Grade | Hardness Grade |
Hardness Range HB |
Metallography |
| HT100 | H145 | ≤170 | Ferrite |
| HT150 | H175 | 150~200 | Ferrite + Pearlite |
| HT200 | H195 | 170~220 | Pearlite |
| HT250 | H215 | 190~240 | Pearlite |
| HT300 | H235 | 210~260 | Pearlite(Inoculated Cast Iron) |
| HT350 | H255 | 230~280 | Pearlite(Inoculated Cast Iron) |
Production Flow Chart
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
