| MOQ: | 500kg |
| Price: | USD1~USD3/kg |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | by T/T or L/C, Western Union, Western Union |
| Supply Capacity: | 20,000 tons per year |
Outstanding Features:

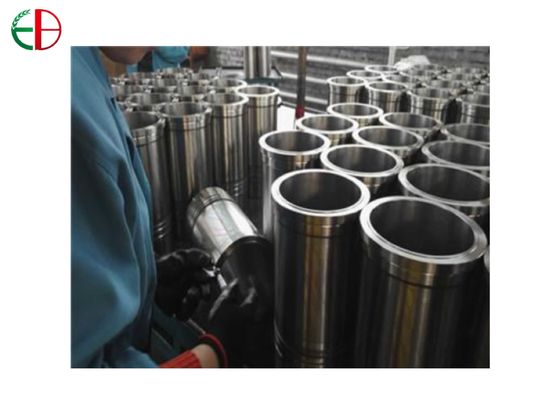

1. The Gray Iron Cast Sleeves are used for Diesel Engine Cylinders.
2. We check the hardness of the sleeves per batches.
3. Full machining can be done on the sleeves.
4. We adopt Centrifugal Cast process with higher efficiency to shorten the process time;
6. OEM and ODM can be done in our foundry.
8. OD:50mm - 500mm; Length: less than 400mm.
9. Material Grade:
Chemistry Standard for Gray Iron
| No. | C | Si | Mn | S | P |
| HT100 | 3.2-3.8 | 2.1-2.7 | 0.5-0.8 | <0.3 | <0.15 |
| HT150 | 3.0-3.7 | 1.8-2.4 | 0.5-0.8 | <0.2 | <0.12 |
| HT200 | 3.0-3.6 | 1.4-2.2 | 0.6-1.0 | <0.15 | <0.12 |
| HT250 | 2.9-3.5 | 1.4-2.1 | 0.7-1.1 | <0.15 | <0.12 |
| HT300 | 2.8-3.4 | 1.3-1.8 | 0.8-1.2 | <0.15 | <0.12 |
| HT350 | 2.7-3.2 | 1.1-1.7 | 0.9-1.4 | <0.15 | <0.12 |
Production Flow Chart
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
1. 18-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172
E-mail:cast@ebcastings.com； ebcastings@163.com
Skype ID:julia.zhu26
QQ: 217 039 6403
What's app: 0086-130 930 23772
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
Our Inspection Video:
video
video
video
|
|
