Product Details:
Payment & Shipping Terms:
|
| Material Grade: | Mo-Re 1,Mo-Re 2, Supertherm,TMA4700, ASTM A1002,Mo-Re 10, | Cast Process: | Centrifugal Cast |
|---|---|---|---|
| Working Temperature: | Up To 2400F | Surface Finish: | Fully Machining To Ra1.6, Ra3.2 |
| Type: | Centrifugal Cast Tubes,Radiant Tubes, Furnace Rolls | ||
| High Light: | centrifugally cast pipe,centrifugal casting products |
||

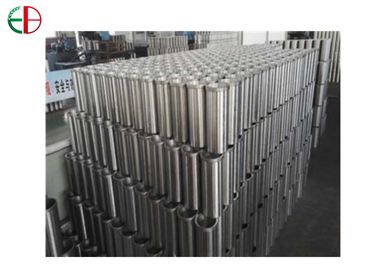

The Supertherm Alloy Tubes are made from Cr25Ni35Co15W5.
Outstanding Features:
1. Application:Heat treating, Auto,Precision Gear,Steel Mills.
2. We checkall the sizes of the tubes one by one.
3. We can do fully machining on the tubes to achieve better surface finish.
4. Centrifugal Cast process can assure higher efficiency to shorten the production time;
5. OEM and ODM of the tubes are available to us.
6. Diameter: 50mm - 500mm; Length: less than 3500mm.
7.
Material grades:
Heat-resistant Iron-Chromium and Iron-Chromium-Nickel ASTM A297
| Number | Steel Grade | Chemical Composition (%) | |||||||
| C | ≤Mn | ≤Si | ≤P | ≤S | Cr | Ni | ≤Mo | ||
| HF | Cr10NiS | 0.2-0.4 | 2.0 | 2.0 | 0.04 | 0.04 | 18-23 | 8-12 | 0.50 |
| HH | Cr25Ni12 | 0.2-0.5 | 2.0 | 2.0 | 0.04 | 0.04 | 24-28 | 11-14 | 0.50 |
| HI | Cr28Ni15 | 0.2-0.5 | 2.0 | 2.0 | 0.04 | 0.04 | 26-30 | 14-18 | 0.50 |
| HK | Cr25Ni20 | 0.2-0.6 | 2.0 | 2.0 | 0.04 | 0.04 | 24-28 | 18-22 | 0.50 |
| HE | Cr29Ni9 | 0.2-0.5 | 2.0 | 2.0 | 0.04 | 0.04 | 26-30 | 8-11 | 0.50 |
| HT | Cr15Ni35 | 0.35-0.75 | 2.0 | 2.5 | 0.04 | 0.04 | 15-19 | 33-37 | 0.50 |
| HU | Cr10Ni30 | 0.35-0.75 | 2.0 | 2.5 | 0.04 | 0.04 | 17-21 | 37-41 | 0.50 |
| HW | Cr12Ni60 | 0.35-0.75 | 2.0 | 2.5 | 0.04 | 0.04 | 10-14 | 58-62 | 0.50 |
| HX | Cr17Ni66 | 0.35-0.75 | 2.0 | 2.5 | 0.04 | 0.04 | 15-19 | 64-68 | 0.50 |
| HC | Cr23 | ≤0.50 | 1.0 | 2.0 | 0.04 | 0.04 | 26-30 | ≤4.00 | 0.50 |
| HD | Cr28Ni5 | ≤0.50 | 1.5 | 2.0 | 0.04 | 0.04 | 26-30 | 4 - 7 | 0.50 |
| HL | Cr29Ni20 | 0.2-0.6 | 2.0 | 2.0 | 0.04 | 0.04 | 28-32 | 18-22 | 0.50 |
| HN | Cr20Ni25 | 0.2-0.5 | 2.0 | 2.0 | 0.04 | 0.04 | 19-23 | 23-27 | 0.50 |
| HP | Cr26Ni35 | 0.35-0.75 | 2.0 | 2.5 | 0.04 | 0.04 | 24-28 | 33-37 | 0.50 |
Production Flow Chart
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
1. 18-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
