Product Details:
Payment & Shipping Terms:
|
| High Light: | white iron side liners,cement mill blind liner |
||
|---|---|---|---|

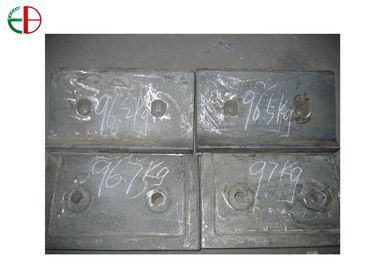

HBW555XCr21 High Wear Cement Mill Groove Liner More Than HRC52 EB5038
Material Grade:
1.Martensitic Cr Mo AlloySteel(ZG50Cr5Mo,ZG60Cr6Mo,Cr12Mo): Hardness:≥HRC48, Impact value:≥25J.
2.High Cr white iron(BTMCr15Mo,BTMCr20Mo,BTMCr26Mo):Hardness:≥HRC56,
Impact value:≥5J.
3.Ni-hard White Iron: AS2027 NiCr2-500,AS2027 NiCr1-550,AS2027 NiCr4-500,AS2027 NiCr4-600,AS2027 NiCr4-630AS2027 NiCr2-500,AS2027 NiCr1-550,AS2027 NiCr4-500,AS2027 NiCr4-600,AS2027 NiCr4-630
Quality Level: As per National Standard & International Standards.
Production Process: Sand Process with proper heat-treatment(quenching and tempering) process to achieve ideal hardness and impact value .
Special Features:
1. We make Cr-Mo Alloy steel and high Cr white iron castings with Sodium Silicate Sand Process and Resin Sand Process.
2. We supply finished alloy steel castings with heat-treatment and machining process.
3. We can produce Alloy Cr-Mo Steel and White Iron castings as per GB/T26651,GB/T 8263-1999,AS2074,AS2027,DIN 1695, AISI,ASTM,JIS G 5153,NF A32401,BS4844.
4. We can recommend suitable material grades of wear parts for you as per your specific working condition.
| Mill Size | Ball Charge (t) |
Mill Size | Ball Charge (t) |
Mill Size | Ball Charge (t) |
| Ф900×1800 | 1.5 | Ф2400×1000 | 50 | Ф3800×1300 | 185 |
| Ф900×3000 | 2.7 | Ф2400×1100 | 60-62 | ||
| Ф1200×2400 | 3 | Ф2400×1200 | 63-65 | Ф3800×1300 | 185 |
| Ф1200×3000 | 3.5 | Ф2400×1200 | 66-68 | ||
| Ф1200×4500 | 5 | Ф2600×1000 | 64 | Ф4000×5000 | 121 |
| Ф1500×3000 | 7.5 | Ф2600×1100 | 69 | Ф4000×6000 | 146 |
| Ф1500×4500 | 11 | Ф2600×1300 | 80 | Ф4000×6700 | 149 |
| Ф1500×5700 | 12 | Ф2700×4000 | 40 | Ф4000×1300 | 191 |
| Ф1830×3000 | 11 | Ф2700×4500 | 48 | Ф4200×1100 | 190 |
| Ф1830×4500 | 15 | Ф3000×900 | 80-83 | ||
| Ф1830×6400 | 21 | Ф3000×1100 | 95-100 | Ф4200×1300 | 225 |
| Ф1830×7000 | 23 | Ф3000×1200 | 103 | ||
| Ф2100×3000 | 15 | Ф3000×1300 | 110-116 | Ф4200×1300 | 225 |
| Ф2100×4500 | 24 | Ф3200×4500 | 65 | ||
| Ф2100×7000 | 26 | Ф3200×1100 | 110-112 | Ф4200×1300 | 225 |
| Ф2200×4500 | 27 | Ф3200×1300 | 125 | ||
| Ф2200×6500 | 35 | Ф3400×1100 | 115 | Ф4500×6400 | 172 |
| Ф2200×7000 | 35 | Ф3500×1300 | 150 | Ф4600×1350 | 280 |
| Ф2200×7500 | 35 | ||||
| Ф2200×1100 | 50 | Ф3500×1300 | 150 | Ф4600×1400 | 285 |
| Ф2400×3000 | 23 | Ф5000×1500 | 350 | ||
| Ф2400×4500 | 30 | Ф3600×4500 | 90 | Ф5030×6400 | 216 |
| Ф2400×800 | 39.5-42 | Ф3600×6000 | 110 | Ф5030×8300 | 266 |
| Ф2400×900 | 50 | Ф3600×8500 | 131 | Ф5500×8500 | 338 |
1. 16-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
