Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance

Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance
Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance

Large Image :  Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB17004
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD2.1~2.5/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C
Supply Ability: 10000 tons per year
Detailed Product Description
High Light:

wear resistant liners

,

ball mill liner replacement

Discharge Grate Liners for SAG Mills EB17004

Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance 0

Detailed Description:

Material Grade:Cr-Mo Alloy Steel;

Quality Level: As per National Standard & International Standards.

Production Process: Sand Process



Special Features:



1.The material of SAG mill liners are low C or high C Cr-Mo Alloy steel,which depends on the specific working condition of the SAG mill.

2.The hardness of AS2074 L2B is HB310-HB380.

3. We can make big size SAG mill liner castings with Sodium Silicate Sand Process & Resin Sand Process.

4. We can supply alloy steel SAG mill liner castings with proper heat-treatment process.

5. We can produce Cr-Mo alloy steel SAG Mill castings as per AS2074 L2B, L2C, GB/T 26651-2011.

6. Metallographic structure of AS2074 L2B Steel is Pearlitic.

7. Chemical Composition

Material Grade C Si Mn P S Cr Mo
AS2074 L2B 0.55-0.65 <0.75 0.50-1.00 <0.06 <0.06 0.80-1.50 0.20-0.40
AS 2074 L2C 0.70-0.90 <0.75 0.50-1.20 <0.06 <0.06 1.30-2.40 0.20-0.40

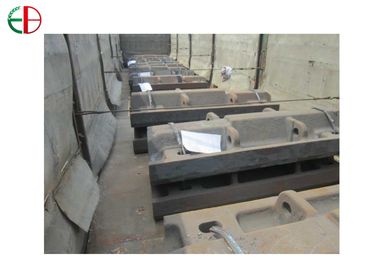

Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance 1
Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance 2

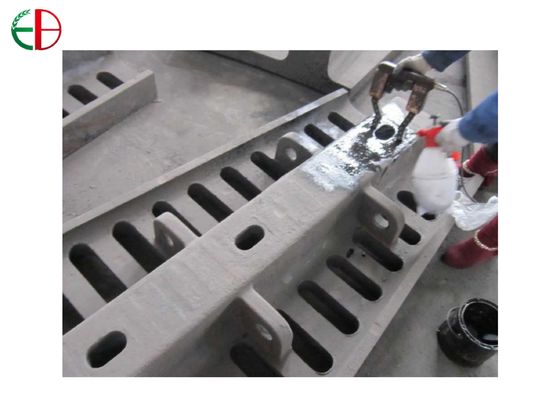

Production Process

Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance 3



Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance 4

1. 16-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show Discharge Grate Liners / Sag Mill Liners Excellent Corrosion Resistance 5



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.
