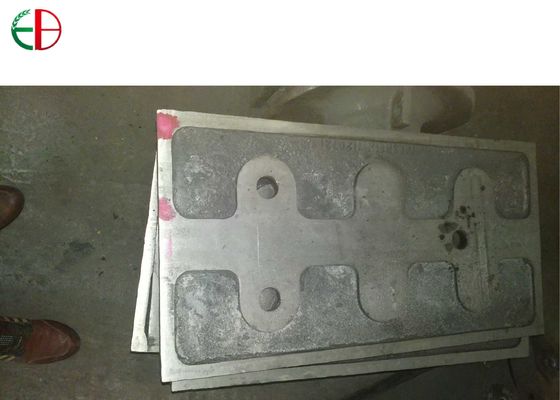

HBW500Cr9 Ni Hard White Iron Flat Plates 25mm Thick With Hexagonal Bolt Holes

HBW500Cr9 Ni Hard White Iron Flat Plates 25mm Thick With Hexagonal Bolt Holes
HBW500Cr9 Ni Hard White Iron Flat Plates 25mm Thick With Hexagonal Bolt Holes
Brand Name
Eternal Bliss
PRODUCT MODEL
EB10026
certificate
ISO9001-2008
country of origin
China
MOQ
1 piece
unit price
USD 3.1~4.0/kg
payment method
by T/T or L/C
Supply Capacity
10000 tons per year
Product Summary
HBW500Cr9 Ni-hard White Iron Flat Plates 25mm Thick with Hexagonal Bolt Holes EB10026 Material Grade:Ni-hard Cast Iron Dimensions:As Per Drawings Special Features: 1. Good surface finish; 2. We use Send Cast Process to produce the Flat Plates Parts with white Iron materials; 3. We do quenching & ...
Product Details
Highlight:

ni hard material

,

ni hard liners
Application: Industry
Material: Ni-hard Cast Iron
Dimensions: As Per Drawing
Standard: AS2027
Hardness: ≥HBW550
Impact Value: ≥3J
Surface Treatment: Shot Blasting
Certification: ISO9001-2018

Product Description

HBW500Cr9 Ni-hard White Iron Flat Plates 25mm Thick with Hexagonal Bolt Holes EB10026

HBW500Cr9 Ni Hard White Iron Flat Plates 25mm Thick With Hexagonal Bolt Holes

Material Grade:Ni-hard Cast Iron

Dimensions:As Per Drawings



Special Features:

1. Good surface finish;

2. We use Send Cast Process to produce the Flat Plates Parts with white Iron materials;

3. We do quenching & tempering treatment to achieve better wear performance.

4. Chemistry Standard for Ni-hard White Iron Materials.

ISO 21988/JN/ HBW C Si Mn P S Ni Cr
HBW480Cr2 480 2.5-3.0 0.8 0.8 0.10 0.10 3.0-5.5 1.5-3.0
HBW500Cr9 500 2.4-2.8 1.5-2.2 0.2-0.8 0.06 0.06 4.0-5.5 8.0-10.0
HBW510Cr2 510 30.-3.6 0.8 0.8 0.10 0.10 3.0-5.5 1.5-3.0
HBW555Cr9 555 2.5-3.5 1.5-2.5 0.3-0.8 0.08 0.08 4.5-6.5 8.0-10.0
HBW630Cr9 630 3.2-3.6 1.5-2.2 0.2-0.8 0.06 0.06 4.0-5.5 8.0-10.0



HBW500Cr9 Ni Hard White Iron Flat Plates 25mm Thick With Hexagonal Bolt Holes

Production Process

Step 1: Getting orders.



Step 2: Process design by technical department



Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)



Step 13: Packing



Step 14: Shipping



HBW500Cr9 Ni Hard White Iron Flat Plates 25mm Thick With Hexagonal Bolt Holes

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show HBW500Cr9 Ni Hard White Iron Flat Plates 25mm Thick With Hexagonal Bolt Holes



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.





Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172



E-mail: ebcasting@126.com



Skype ID:julia.zhu26

QQ: 217 039 6403

www.ebcastings.com

Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
