| MOQ: | 1 piece |
| Price: | USD 3.1~4.0/kg |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | by T/T or L/C |
| Supply Capacity: | 10000 tons per year |
Material Grade:Ni-hard Cast Iron
Dimensions:as per drawings
Special Features:
1. Good surface finish;

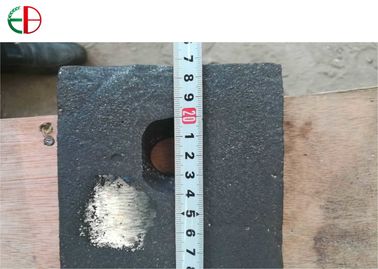

2. We use Send Cast Process to produce the Plugmill Mixer Blade Parts
with white Iron materials;
3. We do quenching & tempering treatment to achieve better wear performance.
4. Chemistry Standard for Ni-hard White Iron Materials.
| ISO 21988/JN/ | HBW | C | Si | Mn | P | S | Ni | Cr |
| HBW480Cr2 | 480 | 2.5-3.0 | 0.8 | 0.8 | 0.10 | 0.10 | 3.0-5.5 | 1.5-3.0 |
| HBW500Cr9 | 500 | 2.4-2.8 | 1.5-2.2 | 0.2-0.8 | 0.06 | 0.06 | 4.0-5.5 | 8.0-10.0 |
| HBW510Cr2 | 510 | 30.-3.6 | 0.8 | 0.8 | 0.10 | 0.10 | 3.0-5.5 | 1.5-3.0 |
| HBW555Cr9 | 555 | 2.5-3.5 | 1.5-2.5 | 0.3-0.8 | 0.08 | 0.08 | 4.5-6.5 | 8.0-10.0 |
| HBW630Cr9 | 630 | 3.2-3.6 | 1.5-2.2 | 0.2-0.8 | 0.06 | 0.06 | 4.0-5.5 | 8.0-10.0 |
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)
Step 13: Packing
Step 14: Shipping
1. 16-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172
E-mail: ebcasting@126.com
Skype ID:julia.zhu26
QQ: 217 039 6403
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
