Sketch Map / Heat Resistant Metal For Reciprocating Fixed Grate Bars

Name: Sketch Map / Heat Resistant Metal For Reciprocating Fixed Grate Bars
Brand: Eternal Bliss
SKU: EB3008
Price: 2 USD
Availability: InStock
Rating: 4.8 (102 reviews)

MOQ:	100kg
Price:	USD2~13/kg
Standard Packaging:	Pallets
Delivery Period:	It depends on the quantity to be ordered.
Payment Method:	by T/T or L/C, Western Union
Supply Capacity:	5000 tons per year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Eternal Bliss

Certification

ISO9001-2018

Model Number

EB3008

Material Grade:

ASTM A297 HD,Cr28Ni5

Cast Process:

Wax Lost Process

Surface Finish:

Ra12.5

Surface Treatment:

Shot Blast

Certification:

ISO9001-2018

Inspection Report:

Chemical Analysis Report,Size Check Report

Highlight:

heat resistant castings

heat resistant metal

Product Description

Gx25CrNiSi18-9 1.4825 Sketch Map for Reciprocating Fixed Grate Bars EB3008

Mechanical Grate Incinerators can be divided into horizontal reciprocating grate system, inclining grate system from the layout of grates. Or they can be divided into three types from the moving ways: Push type reciprocating grate system,Inverse push type reciprocating grate system and Rolling type reciprocating grate system.

The grate system can be composed of moving grate bars and fixing grate bars. The structure and shape of the two grate bars are designed to be same so that it is very convenient for replacement. The width of grate system will be decided by handling capacity of waste. When calorific value is designed to be 6270kJ/kg, the surface temperature of grate bars is 400~500 centi-degree, the service life of grate bars can be about 5 years.

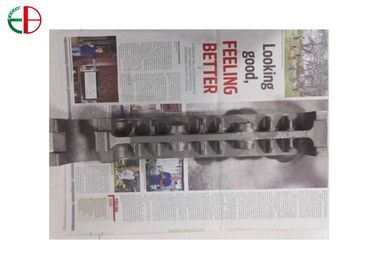

Sketch Map / Heat Resistant Metal For Reciprocating Fixed Grate Bars 1

The key element for incinerators is grate bars. The chemical composition is as follows:

Composition	C	Si	Mn	Cr	Ni	S	P
(%)
1.4823	0.35~0.50	1.0~2.5	≦1.50	25.0-28.0	3.5-5.5	≦0.03	≦ 0.035
GX40CrNiSi27-4
1.4825	0.15-0.30	1.0~2.5	≦1.50	17.0-19.0	8.0-10.0	≦0.03	≦ 0.035
GX25CrNiSi18-9
1.4826	0.30-0.50	1.0~2.5	≦1.50	21.0-23.0	9.0-11.0	≦0.03	≦ 0.035
GX40CrNiSi22-9
1.4832	0.15-0.30	1.0~2.5	≦1.50	19.0-21.0	13.0-15.0	≦0.03	≦ 0.035
GX25CrNiSi20-14
1.4837	0.30-0.50	1.0~2.5	≦1.50	24.0-26.0	11.0-14.0	≦0.03	≦ 0.035
GX40CrNiSi25-12
1.4848	0.30-0.50	1.0~2.5	≦1.50	24.0-26.0	19.0-21.0	≦0.03	≦ 0.035
GX40CrNiSi25-20
1.4865	0.30-0.50	1.0~2.5	≦1.50	17.0-19.0	36.0-39.0	≦0.03	≦ 0.035
GX40CrNiSi38-18
1.4857	0.30-0.50	1.0~2.5	≦1.50	24.0-26.0	34.0-36.0	≦0.03	≦ 0.035
GX40CrNiSi35-25
1.4855	0.30-0.40	0.5-2.0	≦1.50	23.0-25.0	23.0-25.0	≦0.03	≦ 0.035
GX30CrNiSiNb24-24
1.4849	0.30-0.50	1.0~2.5	≦1.50	17.0-19.0	36.0-39.0	≦0.03	≦ 0.035
GX40CrNiSiNb38-18
1.4852	0.35-0.45	1.0~2.5	≦1.50	24.0-26.0	33.0-35.0	≦0.03	≦ 0.035
GX40CrNiSiNb35-25
G-CoCr28	0.10-0.20	1.0~2.5	≦1.50	27.0-30.0	-	≦0.03	≦ 0.035
G-CoCr28W	0.35-0.50	0.5-2.0	≦1.50	27.0-30.0	47.0-50.0	≦0.03	≦ 0.035

Process

Sketch Map / Heat Resistant Metal For Reciprocating Fixed Grate Bars 2

Sketch Map / Heat Resistant Metal For Reciprocating Fixed Grate Bars 3

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.

Our Trade Show Sketch Map / Heat Resistant Metal For Reciprocating Fixed Grate Bars 4

Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.

Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172

E-mail: cast@ebcastings.com, ebcastings@163.com

Skype ID:julia.zhu26

QQ: 217 039 6403

www.ebcastings.com

Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
