Special Material Heat Resistant Cast Steel / Leaning Reciprocating Bar Grating

Special Material Heat Resistant Cast Steel / Leaning Reciprocating Bar Grating

MOQ: 100kg
Price: USD2~13/kg
Standard Packaging: Pallets
Delivery Period: It depends on the quantity to be ordered.
Payment Method: by T/T or L/C, Western Union
Supply Capacity: 5000 tons per year
Detail Information
Place of Origin
China
Brand Name
Eternal Bliss
Certification
ISO9001-2018
Model Number
EB3009
Material Grade:
ASTM A297 HD,Cr28Ni5
Cast Process:
Wax Lost Process
Surface Finish:
Ra12.5
Surface Treatment:
Shot Blast
Certification:
ISO9001-2018
Inspection Report:
Chemical Analysis Report,Size Check Report
Highlight:

heat resistant castings

,

steel casting parts

Product Description

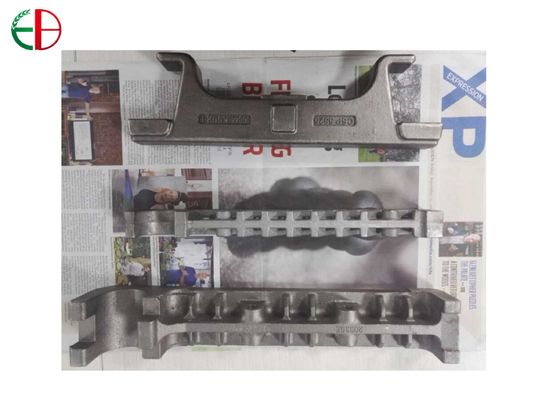

Gx25CrNiSi22-9 Leaning reciprocating grate bar with special material 1.4826 EB3009

Special Material Heat Resistant Cast Steel / Leaning Reciprocating Bar Grating 0

Mechanical Grate Incinerators can be divided into horizontal reciprocating grate system, inclining grate system from the layout of grates. Or they can be divided into three types from the moving ways: Push type reciprocating grate system,Inverse push type reciprocating grate system and Rolling type reciprocating grate system.



The grate system can be composed of moving grate bars and fixing grate bars. The structure and shape of the two grate bars are designed to be same so that it is very convenient for replacement. The width of grate system will be decided by handling capacity of waste. When calorific value is designed to be 6270kJ/kg, the surface temperature of grate bars is 400~500 centi-degree, the service life of grate bars can be about 5 years.

Special Material Heat Resistant Cast Steel / Leaning Reciprocating Bar Grating 1

The key element for incinerators is grate bars. The chemical composition is as follows:



Composition C Si Mn Cr Ni S P
(%)
1.4823 0.35~0.50 1.0~2.5 ≦1.50 25.0-28.0 3.5-5.5 ≦0.03 ≦ 0.035
GX40CrNiSi27-4
1.4825 0.15-0.30 1.0~2.5 ≦1.50 17.0-19.0 8.0-10.0 ≦0.03 ≦ 0.035
GX25CrNiSi18-9
1.4826 0.30-0.50 1.0~2.5 ≦1.50 21.0-23.0 9.0-11.0 ≦0.03 ≦ 0.035
GX40CrNiSi22-9
1.4832 0.15-0.30 1.0~2.5 ≦1.50 19.0-21.0 13.0-15.0 ≦0.03 ≦ 0.035
GX25CrNiSi20-14
1.4837 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 11.0-14.0 ≦0.03 ≦ 0.035
GX40CrNiSi25-12
1.4848 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 19.0-21.0 ≦0.03 ≦ 0.035
GX40CrNiSi25-20
1.4865 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035
GX40CrNiSi38-18
1.4857 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 34.0-36.0 ≦0.03 ≦ 0.035
GX40CrNiSi35-25
1.4855 0.30-0.40 0.5-2.0 ≦1.50 23.0-25.0 23.0-25.0 ≦0.03 ≦ 0.035
GX30CrNiSiNb24-24
1.4849 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035
GX40CrNiSiNb38-18
1.4852 0.35-0.45 1.0~2.5 ≦1.50 24.0-26.0 33.0-35.0 ≦0.03 ≦ 0.035
GX40CrNiSiNb35-25
G-CoCr28 0.10-0.20 1.0~2.5 ≦1.50 27.0-30.0 - ≦0.03 ≦ 0.035
G-CoCr28W 0.35-0.50 0.5-2.0 ≦1.50 27.0-30.0 47.0-50.0 ≦0.03 ≦ 0.035

Process

Special Material Heat Resistant Cast Steel / Leaning Reciprocating Bar Grating 2



Special Material Heat Resistant Cast Steel / Leaning Reciprocating Bar Grating 3

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show Special Material Heat Resistant Cast Steel / Leaning Reciprocating Bar Grating 4



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.





Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172



E-mail: cast@ebcastings.com,   ebcastings@163.com



Skype ID:julia.zhu26

QQ: 217 039 6403

www.ebcastings.com

Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
