Cr25Ni20 Heat Resistant Cast Steel HK Preheater Panel Fit Cement Plant

Cr25Ni20 Heat Resistant Cast Steel HK Preheater Panel Fit Cement Plant

MOQ: 100kg
Price: USD2~13/kg
Standard Packaging: Pallets
Delivery Period: It depends on the quantity to be ordered.
Payment Method: by T/T or L/C, Western Union
Supply Capacity: 5000 tons per year
Detail Information
Place of Origin
China
Brand Name
Eternal Bliss
Certification
ISO9001-2018
Model Number
EB3019
Material Grade:
ASTM A297 HK,Cr25Ni20
Cast Process:
Sand Cast Process
Surface Treatment:
Shot Blasting
Certification:
ISO9001-2018
Inspection Report:
Chemical Analysis Report,Size Check Report
Service:
ODM,OEM
Highlight:

heat resistant metal

,

steel casting parts

Product Description

Cr25Ni20 ASTM A297 HK Preheater panel for Cement Plant EB3019



Cr25Ni20 Heat Resistant Cast Steel HK Preheater Panel Fit Cement Plant 0

The alloy steel with high strength and good chemical stability at high temperature.
It consists of two classes: anti-oxidizing steel (or high temperature non-peeling steel) and hot steel.
Oxidation resistant steel generally requires good chemical stability, but the load is low.
Hot steel requires high temperature strength and corresponding oxidation resistance.



Material Grade: ASTM A297 HK ,Cr25Ni20,ZG40Cr25Ni20Si2, Cr25Ni14; HK2Co20;1.4852;1.4849;Cr14Ni9;
Quality Level: As per National Standard & International Standards.
Production Process: Centrifugal Process & Sand Process Including machining process.

Special Features:
1. We can make Preheater panel with Centrifugal Process & Sand Process.
2. We can supply finished Heat castings with heat-treatment and machining process.
3. We can produce heat steel castings as per GB/T 20878,DIN 17440,DIN 17224, AISI,ASTM,JIS SUH35,NF A35-572/584,BS970,BS1449,ISO 683/13.

 Heat-resistant Steel-Chromium ASTM A297

Number Steel Grade Chemical Composition (%)
C ≤Mn ≤Si ≤P ≤S Cr Ni ≤Mo
HF Cr10NiS 0.2-0.4 2.0 2.0 0.04 0.04 18-23 8-12 0.50
HH Cr25Ni12 0.2-0.5 2.0 2.0 0.04 0.04 24-28 11-14 0.50
HI Cr28Ni15 0.2-0.5 2.0 2.0 0.04 0.04 26-30 14-18 0.50
HK Cr25Ni20 0.2-0.6 2.0 2.0 0.04 0.04 24-28 18-22 0.50
HE Cr29Ni9 0.2-0.5 2.0 2.0 0.04 0.04 26-30 8-11 0.50
HT Cr15Ni35 0.35-0.75 2.0 2.5 0.04 0.04 15-19 33-37 0.50
HU Cr10Ni30 0.35-0.75 2.0 2.5 0.04 0.04 17-21 37-41 0.50
HW Cr12Ni60 0.35-0.75 2.0 2.5 0.04 0.04 10-14 58-62 0.50
HX Cr17Ni66 0.35-0.75 2.0 2.5 0.04 0.04 15-19 64-68 0.50
HC Cr23 ≤0.50 1.0 2.0 0.04 0.04 26-30 ≤4.00 0.50
HD Cr28Ni5 ≤0.50 1.5 2.0 0.04 0.04 26-30 4 - 7 0.50
HL Cr29Ni20 0.2-0.6 2.0 2.0 0.04 0.04 28-32 18-22 0.50
HN Cr20Ni25 0.2-0.5 2.0 2.0 0.04 0.04 19-23 23-27 0.50
HP Cr26Ni35 0.35-0.75 2.0 2.5 0.04 0.04 24-28 33-37 0.50


Production Process

Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value &microstructure)
Step 13: Packing
Step 14: Shipping

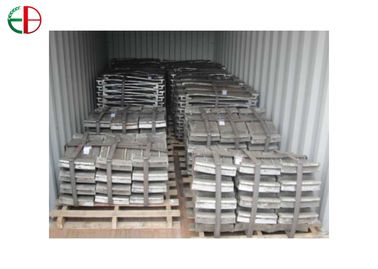

 Cr25Ni20 Heat Resistant Cast Steel HK Preheater Panel Fit Cement Plant 1Cr25Ni20 Heat Resistant Cast Steel HK Preheater Panel Fit Cement Plant 2

Cr25Ni20 Heat Resistant Cast Steel HK Preheater Panel Fit Cement Plant 3
1. 18-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.



Our Trade Show Cr25Ni20 Heat Resistant Cast Steel HK Preheater Panel Fit Cement Plant 4

Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.


Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172

E-mail: cast@ebcastings.com,  ebcastings@163.com

Skype ID:julia.zhu26
QQ: 217 039 6403
www.ebcastings.com
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
