Product Details:
Payment & Shipping Terms:
|
| Material: | Monel K500 | Cast Process: | Investment Process |
|---|---|---|---|
| Surface Finish: | Ra12.5 | Certification: | ISO9001-2018 |
| Service: | ODM,OEM | Operation Temperature: | 1000° |
| High Light: | lost wax casting molds,lost wax metal casting |
||
Nickel-based alloy refers to the 650 ~ 1000 ℃ high temperature with high strength and certain oxidation corrosion resistance and so on comprehensive performance of the alloy.
According to the main properties, it is divided into nickel-base alloy, nickel-base alloy, nickel base alloy, nickel-base alloy and nickel-base shape memory alloy.
Quality Level: As per National Standard & International Standards.
Special Features:

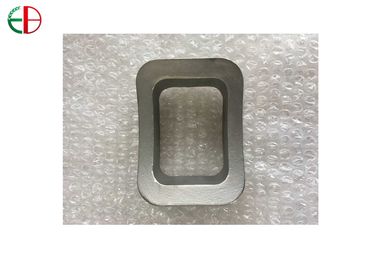

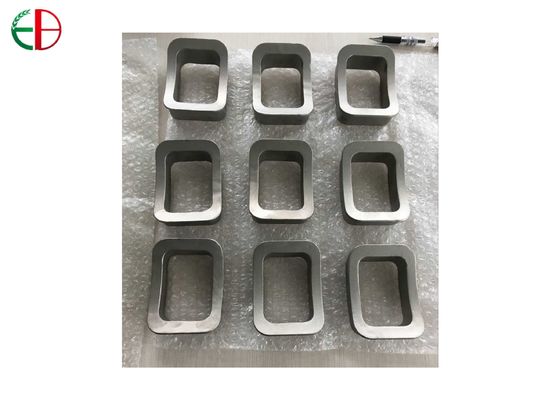

1. We can make Ni-base Alloy Casting with Lost Wax Cast Process
2. We can supply finished Ni-base Alloy Casting castings with heat-treatment and machining process.
Production Process: Investment Process,including machining process.
Material Grade:
| Ni | C | Mn | Fe | S | Si | Cu | Cr | Al | Ti | Nb | Mo | |
| Nickel 200 | 99.5 | 0.08 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Nickle 201 | 99.5 | 0.01 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Monel 400 | 66.5 | 0.2 | 1.0 | 1.2 | 0.01 | 0.2 | 31.5 | -- | -- | -- | -- | -- |
| Monel 401 | 42.5 | 0.05 | 1.6 | 0.4 | 0.008 | 0.1 | Bal | -- | -- | -- | -- | -- |
| Monel K500 | 66.5 | 0.1 | 0.8 | 1.0 | 0.005 | 0.2 | 29.5 | -- | 2.7 | 0.5 | -- | -- |
| Inconel 600 | 76.0 | 0.08 | 0.5 | 8.0 | 0.006 | 0.2 | 0.2 | 15.5 | -- | -- | -- | -- |
| Inconel 601 | 60.5 | 0.05 | 0.5 | 14.1 | 0.007 | 0.2 | 0.5 | 23.0 | 1.4 | -- | -- | -- |
| Inconel 718 | 52.5 | 0.04 | 0.2 | 18.5 | 0.008 | 0.2 | 0.2 | 19.0 | 0.5 | 0.9 | 5.1 | 3.0 |
| Inconel X-715 | 73.0 | 0.04 | 0.5 | 7.0 | 0.005 | 0.2 | 0.2 | 15.5 | 0.7 | 2.5 | 1.0 | -- |
| Incoloy 800 | 32.5 | 0.05 | 0.8 | 46.0 | 0.008 | 0.5 | 0.4 | 21.0 | 0.4 | 0.4 | -- | -- |
| Incoloy 803 | 32.0-37.0 | 0.06-0.10 | ≤1.50 | Bal | ≤0.015 | ≤1.0 | ≤0.75 | 25.0-29.0 | 0.15-0.60 | 0.15-0.6 | -- | -- |
| Incoloy 825 | 42.0 | 0.03 | 0.5 | 30.4 | 0.02 | 0.2 | 2.2 | 21.5 | 0.1 | 0.9 | -- | 3.0 |
Production Flow Chart
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
1. 18-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
