| MOQ: | 100 sets |
| Price: | USD4/set ~ USD20/set |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | by T/T or L/C, Western Union |
| Supply Capacity: | 100,000,000.00 sets per year |
Material Grade: 40Cr
Quality Level: 12.9Grade
Sizes:M36 x 3 x 280mm;
Specification: As drawings
| M36 x 100 | M36 x 110 | M36 x 120 | M36 x 130 |
| M36 x 140 | M36 x 150 | M36 x 160 | M36 x 170 |
| M36 x 180 | M36 x 190 | M36 x 200 | M36 x 210 |
| M36 x 220 | M36 x 230 | M36 x 240 | M36 x 250 |

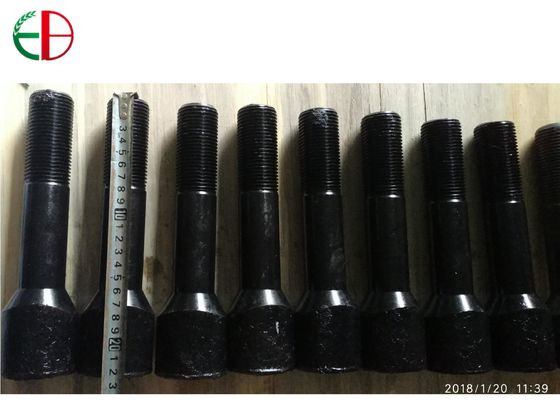

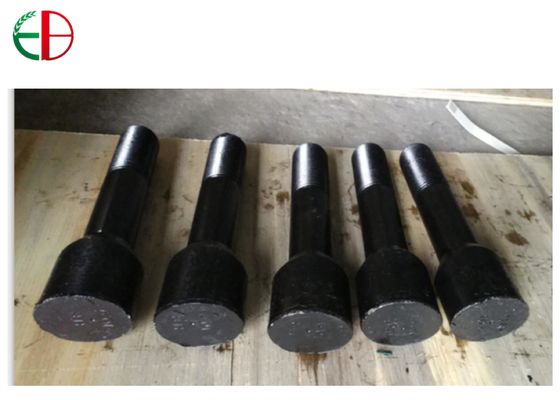

Bolt-head Shape: Ellipse Head,Oval Head, Square Head,
Production Process:Heat-treated, High Strength
Service Life Guarantee: 12 months under normal working condition
Application: Bolt Units for SAG Mill dia.5.8M
Destination: Export to USA,UK,China
Special Features:
1. The high strength bolts have been widely used in large ball mills up to dia.12-meter mills.
2. The high strength screws can be reliably used in small,middle and large cement mills,coal mils and mine mills.
3. The high strength bolts have been properly heat-treated to achieve better mechanical properties.
4. The standard bolt units include one rubber ring,concave washer,spring washer and nut.
Specification For Bolt Units & Mill Liner Bolt Units & Bolt Nuts & Spring Washers & Flat Washers(M30 Bolts)
| Weight (kg/1000pc) | ||
| Size | Without Nuts | With Nuts |
| M36*110 | 1246 | 1617 |
| M36*120 | 1326 | 1697 |
| M36*130 | 1406 | 1777 |
| M36*140 | 1486 | 1857 |
| M36*150 | 1566 | 1937 |
| M36*160 | 1646 | 2017 |
| M36*170 | 1726 | 2097 |
| M36*180 | 1806 | 2177 |
| M36*190 | 18866 | 2257 |
| M36*200 | 1966 | 2337 |
| M36*210 | 2046 | 2417 |
| M36*220 | 2126 | 2497 |
| M36*230 | 2206 | 2577 |
| M36*240 | 2286 | 2657 |
1. 18-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172
E-mail:forging@ebcastings.com;
cast@ebcastings.com
Skype ID:julia.zhu26
QQ: 217 039 6403
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
