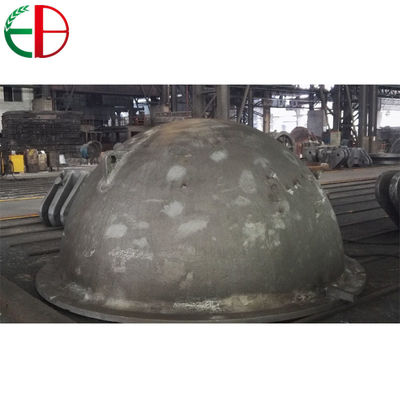

EB3020 Type Heat - Resistant Steel Casting Parts Iron Melting Kettles
heat resistant metal
,steel casting parts
Product Description
Heat-resistant Cast Iron Melting Kettles EB13032
Special Features:
1. We supply finished heat resistant baskets with machined condition if necessary.
2. We can provide the whole set of inspection report before delievery.
3. The baskets are cast with different grids which can be used for integrated baskets.
Production Process:Lost Wax Process & EPC process & Sand Process, including machining process.
Quality Level: As per National Standard & International Standards.
Material Grade:
|
Composition (%) |
C | Si | Mn | Cr | Ni | S | P |
|
1.4823 GX40CrNiSi27-4 |
0.35~0.50 | 1.0~2.5 | ≦1.50 | 25.0-28.0 | 3.5-5.5 | ≦0.03 | ≦ 0.035 |
|
1.4825 GX25CrNiSi18-9 |
0.15-0.30 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 8.0-10.0 | ≦0.03 | ≦ 0.035 |
|
1.4826 GX40CrNiSi22-9 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 21.0-23.0 | 9.0-11.0 | ≦0.03 | ≦ 0.035 |
|
1.4832 GX25CrNiSi20-14 |
0.15-0.30 | 1.0~2.5 | ≦1.50 | 19.0-21.0 | 13.0-15.0 | ≦0.03 | ≦ 0.035 |
|
1.4837 GX40CrNiSi25-12 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 11.0-14.0 | ≦0.03 | ≦ 0.035 |
|
1.4848 GX40CrNiSi25-20 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 19.0-21.0 | ≦0.03 | ≦ 0.035 |
|
1.4865 GX40CrNiSi38-18 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 36.0-39.0 | ≦0.03 | ≦ 0.035 |
|
1.4857 GX40CrNiSi35-25 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 34.0-36.0 | ≦0.03 | ≦ 0.035 |
|
1.4855 GX30CrNiSiNb24-24 |
0.30-0.40 | 0.5-2.0 | ≦1.50 | 23.0-25.0 | 23.0-25.0 | ≦0.03 | ≦ 0.035 |
|
1.4849 GX40CrNiSiNb38-18 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 36.0-39.0 | ≦0.03 | ≦ 0.035 |
|
1.4852 GX40CrNiSiNb35-25 |
0.35-0.45 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 33.0-35.0 | ≦0.03 | ≦ 0.035 |
| G-CoCr28 | 0.10-0.20 | 1.0~2.5 | ≦1.50 | 27.0-30.0 | - | ≦0.03 | ≦ 0.035 |
| G-CoCr28W | 0.35-0.50 | 0.5-2.0 | ≦1.50 | 27.0-30.0 | 47.0-50.0 | ≦0.03 | ≦ 0.035 |
Production Flow Chart
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
1. 18-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
