Product Details:
Payment & Shipping Terms:
|

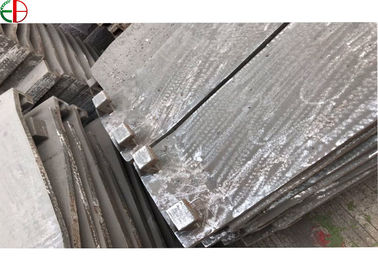

| Product Name: | Wear-resisting Cooling Plate | Process: | Sand Casting |
|---|---|---|---|
| Application: | Industry | Material Grade: | 1.4837 |
| Quality Control: | 100% Inspected | Service: | OEM ODM Service |
| High Light: | cement mill shell liners,white iron side liners |
||
Material Grade:High Chrome Cast Iron & Ni Hard White Iron
Dimensions:as per drawings
Special Features:
1.We adopt Sand Cast Process to make High Cr & Ni hard chute liners;
2.We do quenching & tempering treatment for high Cr & Ni hard white iron plates to achieve high hardness.
3. Cr15Mo3 castings: more than HRC56; AS2027 Cr27 castings: more than HRC59; Ni-hard white iron: more than HRC54.
Chemical Component:
| Heat-resistant Steel Castings | ||||||||
| Standard | Material Grade | C | Si | Mn | Cr | Ni | Nb | Other |
| GX30CrSi6 | 1.4710 | 0.20~0.35 | 1.0~2.5 | 0.5~1.0 | 6.0~8.0 | — | — | |
| GX40CrSi13 | 1.4729 | 0.30~0.45 | 1.0~2.5 | 0.5~1.0 | 12.0~14.0 | — | — | |
| GX40CrSi17 | 1.4740 | 0.30~0.45 | 1.0~2.5 | 0.5~1.0 | 16.0~18.0 | — | — | |
| GX40CrSi23 | 1.4745 | 0.30~0.45 | 1.0~2.5 | 0.5~1.0 | 22.0~24.0 | — | — | |
| GX40CrSi29 | 1.4776 | 0.30~0.45 | 1.0~2.5 | 0.5~1.0 | 27.0~30.0 | — | — | |
| GX130CrSi29 | 1.4777 | 1.20~1.40 | 1.0~2.5 | 0.5~1.0 | 27.0~30.0 | — | — | |
| GX40CrNiSi27-4 | 1.4823 | 0.35~0.50 | 1.0~2.5 | ≤1.5 | 25.0~28.0 | 3.5~5.5 | — | |
| GX25CrNiSi18-9 | 1.4825 | 0.15~0.30 | 1.0~2.5 | ≤1.5 | 17.0~19.0 | 8.0~10.0 | — | |
| GX40CrNiSi22-9 | 1.4826 | 0.30~0.50 | 1.0~2.5 | ≤1.5 | 21.0~23.0 | 9.0~11.0 | — | |
| GX25CrNiSi20-14 | 1.4832 | 0.15~0.30 | 1.0~2.5 | ≤1.5 | 24.0~26.0 | 13.0~15.0 | — | |
| GX40CrNiSi25-12 | 1.4837 | 0.30~0.50 | 1.0~2.5 | ≤1.5 | 24.0~26.0 | 11.0~14.0 | — | |
| GX40CrNiSi25-20 | 1.4848 | 0.30~0.50 | 1.0~2.5 | ≤1.5 | 24.0~26.0 | 19.0~21.0 | — | |
| GX40NiCrSi38-18 | 1.4865 | 0.30~0.50 | 1.0~2.5 | ≤1.5 | 17.0~19.0 | 36.0~39.0 | — | |
| GX40NiCrSi35-25 | 1.4857 | 0.30~0.50 | 1.0~2.5 | ≤1.5 | 24.0~26.0 | 34.0~36.0 | — | |
| GX30CrNiSiNb24-24 | 1.4855 | 0.25~0.40 | 0.5~2.0 | ≤1.5 | 23.0~25.0 | 23.0~25.0 | 1.2~1.8 | |
| GX40NiCrSiNb38-18 | 1.4849 | 0.30~0.50 | 1.0~2.5 | ≤1.5 | 17.0~19.0 | 36.0~39.0 | 1.2~1.8 | |
| GX40NiCrSiNb35-25 | 1.4852 | 0.35~0.45 | 1.0~2.5 | ≤1.5 | 24.0~26.0 | 33.0~35.0 | 0.8~1.8 | |
| G-CoCr28 | 2.4778 | 0.10~0.20 | 0.5~1.5 | ≤1.5 | 27.0~30.0 | — | — | Co48.0~52.0 |
| G-NiCr28W | 2.4879 | 0.35~0.50 | 0.5~2.0 | ≤1.5 | 27.0~30. 0 | 47.0~50.0 | — | W4.0~5.5 |
