| MOQ: | 1 piece |
| Price: | USD 0.7~1.5/kg |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | by T/T or L/C |
| Supply Capacity: | 10000 tons per year |

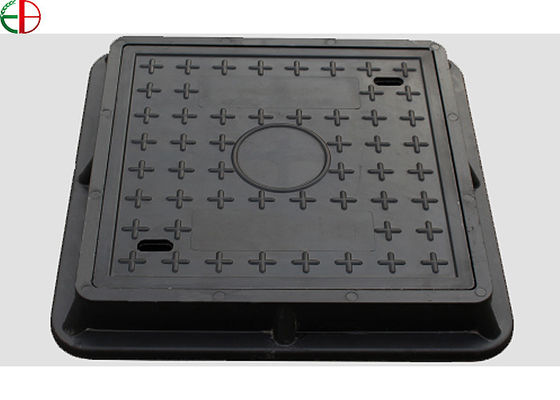

EN124 Class D400 Manhole Cover,Cast Iron Manhole Cover with Frame for Sale,Concrete Ductile
Iron Manhole Cover EB13008
Introduction:
|
Description |
EN124 Class D400 Manhole Cover,Cast Iron Manhole Cover with Frame for Sale,Concrete Ductile Iron Manhole Cover |
|
Type |
Square, round, channel grate |
|
Application |
Urban drainage system,Municipal Engineering |
|
Processing |
Green sand casting, resin sand casting |
|
Material |
Ductile iron EN124 |
|
Weight Ranges |
4-210kg |
|
Tolernace |
Controlled by ISO8062 CT11-14 |
|
Design Support |
UG, SolidWorks, AutoCad, PDF |
|
Quality Control |
Material, Dimension,Performance,inside defects,load test |
|
Standard |
EN124 standards |
Performance:
|
Eternal Size |
Cover Diameter |
Clear Opening |
Depth |
Weight |
Loading Capacity |
|
200x200mm |
190x190mm |
150x150mm |
25mm |
6.5kg |
EN124 A15 |
|
300x300mm |
280x280mm |
245x245mm |
25mm |
6.5kg |
EN124 A15 |
|
300x300mm |
250x250mm |
190x190mm |
50mm |
7kg |
EN124 A15 |
|
400x400mm |
380x380mm |
340x340mm |
25mm |
12.5kg |
EN124 A15 |
|
400x400mm |
310x310mm |
245x245mm |
60mm |
12kg |
EN124 A125 |
|
400x400mm |
340x340mm |
300x300mm |
30mm |
9kg |
EN124 B125 |
|
400x400mm |
340x340mm |
300x300mm |
354mm |
12kg |
EN124 C250 |
|
490x490mm |
420x420mm |
385x385mm |
33mm |
14.5kg |
EN124 B125 |
|
490x490mm |
420x420mm |
385x385mm |
40mm |
17.5kg |
EN124 C250 |
|
500x500mm |
440x440mm |
400x400mm |
35mm |
15kg |
EN124 B125 |
|
500x500mm |
540x540mm |
500x500mm |
45mm |
29kg |
EN124 C250 |
|
500x500mm |
390x390mm |
330x330mm |
60mm |
18.5kg |
EN124 A15 |
|
590x590mm |
520x520mm |
485x485mm |
45mm |
26kg |
EN124 C250 |
|
600x600mm |
495x495mm |
430x430mm |
60mm |
23.5mm |
EN124 A15 |
|
600x600mm |
640x640mm |
600x600mm |
48mm |
41kg |
EN124 C250 |
|
700x700mm |
640x640mm |
600x600mm |
100mm |
61kg |
EN124 C250 |
|
895x895mm |
830x830mm |
790x790mm |
75mm |
98kg |
EN124 C250 |
|
|
