| Name: | Manhole Cover | Material: | Iron, Ductile Iron |
|---|---|---|---|
| Standard: | EN124-2015 EN1433 | Hardness: | HBS 225-305 |
| Process: | Resin Sand Cast Process | Dimensions: | Drawing |
| High Light: | cast iron tube,ductile iron casting parts |
||

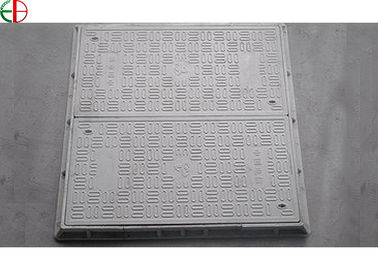

High Pressure Manhole Cover EN124 E600,Telecom Manhole Cover Weight,Smc Composite Manhole
Covers EB13010
Product information:
Manhole Covers are manufactured for construction and public use. Manhole Covers shall be smooth and free from
sand holes, blow holes, distortion or any other defects
Material:
a) Ductile Iron GGG500-7 & 400-12
b) Grey Iron GG20
Designs:
a) EN124 A15, B125, C250, D400, E600 and F900
b) A60005 for casting design
c) Major standards designs available
d) As per customers' drawings or samples
Process:
c) Molding boards
d) Green sand with hand molding
Coating:
a) Cold applied black bitumen
b) Without coating
c) Coating as per customers' requirement
Different accessories are available:
| Eternal Size | Cover Diameter | Clear Opening | Depth | Weight | Loading Capacity |
| 1110x810mm | 100x700mm | 970x660mm | 80mm | 75kg | EN124 B125 |
| 1010x810mm | 900x600mm | 870x660mm | 80mm | 90kg | EN124 C250 |
| 1010x810mm | 900x600mm | 870x460mm | 80mm | 80kg | EN124 C250 |
| 910x610mm | 800x600mm | 770x460mm | 80mm | 70kg | EN124 C250 |
| 810x610mm | 700x600mm | 660x460mm | 80mm | 60kg | EN124 C250 |
| 1360x860mm | 1200x675mm | 1195x670mm | 150mm | 430kg | EN124 E600 |
| 1390x760mm | 645x645mm | 600x600mm | 100mm | 100kg | EN124 E600 |
| 1630x1030mm | 900x1500mm | 1464x864mm | 100mm | 225kg | EN124 D400 |
| 1630x1330mm | 1200x1500mm | 1160x1460mm | 100mm | 315kg | EN124 D400 |
| 700x1400mm | 130x600mm | 1160x1460mm | 100mm | 98kg | EN124 B125 |
| 1370x835mm | 1230x690mm | 1230x690mm | 100mm | 165kg | EN124 D400 |
