EB9633 Titanium Investment Casting ASTM GR1 Round Bars / Titanium Alloy Rod

EB9633 Titanium Investment Casting ASTM GR1 Round Bars / Titanium Alloy Rod

MOQ: 5 Kilogram/Kilograms
Price: $6.00 - $25.00 / Kilogram
Standard Packaging: Plywood Case: 1500 x 1000 x 1000mm (Max.) 20 feet container: 25 tons (Max.)
Delivery Period: It depends on the quantity to be ordered.
Payment Method: by T/T or L/C, Western Union
Supply Capacity: 100,000.00
Detail Information
Place of Origin
China
Brand Name
Eternal Bliss
Certification
ISO9001-2008
Model Number
EB9633
Product Name:
Titanium Bar
Material:
Titanium GR1
Standard:
ASTM B348,ASTM F136,ASTM F67,AMS4928
Size:
Customize
Density:
4.54 G/cm3
Advantage:
High Performance
Application:
Industrial, Chemical Industry
Appearance:
Silvery
Highlight:

aluminum sand casting part

,

alu die casting parts

Product Description



ASTM Titanium GR1 Round Bars,Titanium Alloy Rod,Titanium Bar



EB9633 Titanium Investment Casting ASTM GR1 Round Bars / Titanium Alloy Rod 0



1. Introduction:

Titanium is a chemical element with the symbol Ti and atomic number 22. It is a lustrous transition metal

with a silver color, low density, and high strength. Titanium is resistant to corrosion in sea water, aqua regia,

and chlorine.



2. Titanium Rod Properties (Theoretical)



Molecular Weight 47.86 (Note: all properties listed are for bulk titanium metal)
Appearance Silvery
Melting Point 1668 °C
Boiling Point 3560 °C
Density 4.54 g/cm3
Solubility in H2O N/A
Crystal Phase / Structure Hexagonal
Electrical Resistivity 42.0 microhm-cm @ 20 °C
Electronegativity 1.45 Paulings
Heat of Fusion 14.15 kJ/mol
Heat of Vaporization 425 kJ/mol
Poisson's Ratio 0.32
Specific Heat 0.125 Cal/g/K @ 25 °C
Tensile Strength 140 MPa
Thermal Conductivity 21.9 W/(m·K) @ 298.2 K
Thermal Expansion 8.6 µm·m-1·K-1 (25 °C)
Vickers Hardness 830–3420 MPa
Young's Modulus 116 GPa



3. Chemical Composition:



Alloy Tensile Strength (min) 0.2 % yield Strenght (min) Impurity Limits (wt %) Nominal Composition (wt %)
C Mn S Si N (max) C (max) H (max) Fe (max) O (max) Al Sn Zr Mo Others
Unalloyed Grades
ASTM Grade 1 240 35 170 25 0.03 0.1 0.015 0.2 0.18
ASTM Grade 2 340 50 280 40 0.03 0.1 0.015 0.3 0.25
ASTM Grade 3 450 65 380 55 0.06 0.1 0.015 0.3 0.35
ASTM Grade 4 550 80 480 70 0.06 0.1 0.015 0.5 0.4
ASTM Grade 7 340 50 280 40 0.03 0.1 0.015 0.3 0.25 0.2 Pd

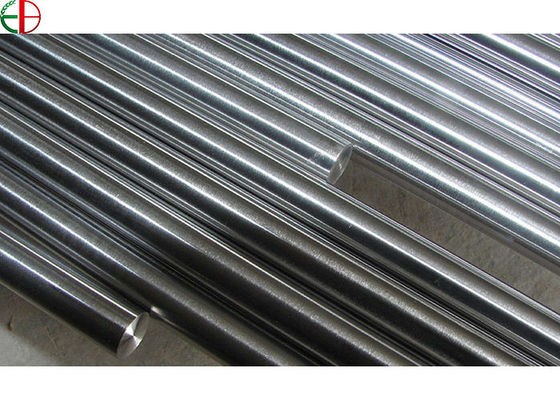

4. Product Details Picture:



EB9633 Titanium Investment Casting ASTM GR1 Round Bars / Titanium Alloy Rod 1EB9633 Titanium Investment Casting ASTM GR1 Round Bars / Titanium Alloy Rod 2EB9633 Titanium Investment Casting ASTM GR1 Round Bars / Titanium Alloy Rod 3
