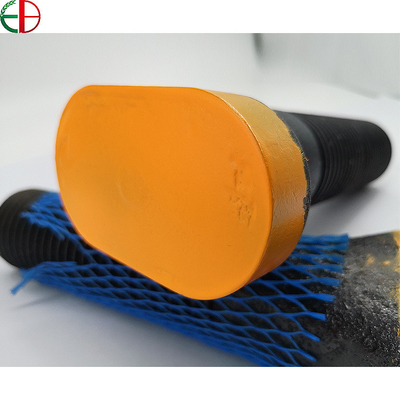

M48x150mm Cement Mill Liner 42CrMo Chrome Nuts And Bolts

China Eternal Bliss Alloy Casting & Forging Co.,LTD. certification
China Eternal Bliss Alloy Casting & Forging Co.,LTD. certification
Professional at casting expertise and efficient at export operation and considerate arrangement.

—— Alex Chrischurch

Fast delivery,professional drawing, and strong design capability help us a lot.

—— Mr Iker Zelaia

This time you arranged shipment for us and delivered the parts from your port to our warehouse.It is a total solution and professional service.Thanks for the convenience.

—— Ms Jane Machowsky

Perfect quality of casting and machining parts. Thank you!

—— ALEKSANDR LUKIANOV

I'm Online Chat Now

M48x150mm Cement Mill Liner 42CrMo Chrome Nuts And Bolts

M48x150mm Cement Mill Liner 42CrMo Chrome Nuts And Bolts
M48x150mm Cement Mill Liner 42CrMo Chrome Nuts And Bolts
video play

Large Image :  M48x150mm Cement Mill Liner 42CrMo Chrome Nuts And Bolts

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB0017
Payment & Shipping Terms:
Minimum Order Quantity: 5 Seats
Price: $9.5 - $9.7 / Set
Packaging Details: Plywood Case: 1500 x 1000 x 1000mm (Max.) 20 feet container: 25 tons (Max.)
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C, Western Union
Supply Ability: 100,000.00
Detailed Product Description
Product Name: Liner Bolt Material: 42CrMo
Size: M48x150mm Standard: ANSI
Surface Treatment: Shot Blasting Packing: Wooden Case
High Light:

42CrMo Chrome Nuts And Bolts

,

M48x150mm Chrome Nuts And Bolts



M48x150mm Hardware Bolts 4140 Oval Head Bolt 42CrMo Cement Mill Liner Bolts and Nuts



M48x150mm Cement Mill Liner 42CrMo Chrome Nuts And Bolts 0



1. Material Grade:4140(42CrMo)

2. Quality Level: 12.9, 10.9, 8.8, 6.8, 4.8 Grade

3. Sizes: M20,M24, M27,M30,M36,M42,M45;

4. Specification:M48 x 150,M48 x 180,M48 x 210,M48 x 330,M48 x 370,M48 x 390,M48 x 600,M48 x 700,M48 x 900,M48 x 1080

5. Bolt-head Shape: Oval head, Square head,Ellipse head;

6. Special Features:

1. The high strength bolts have been widely used in large ball mills up to dia.12-meter mills.

2. The high strength screws can be reliably used in small,middle and large cement mills,coal mils and mine mills.

3. The high strength bolts have been properly heat-treated to achieve better mechanical properties.

4. The standard bolt units include one rubber ring,concave washer,spring washer and nut.

7. Chemical Composition:



Composition(%)

C

Si

Mn

S

P

Cr

Mo

42CrMo(4140 Grade8.8)

0.38-0.45

≤0.40

0.60-0.90

≤0.035

≤0.035

0.90-1.20

0.15-0.30




8. Product Details Picture:



M48x150mm Cement Mill Liner 42CrMo Chrome Nuts And Bolts 1M48x150mm Cement Mill Liner 42CrMo Chrome Nuts And Bolts 2M48x150mm Cement Mill Liner 42CrMo Chrome Nuts And Bolts 3
