| MOQ: | 1 Piece |
| Price: | USD 1.40~3.10/Kilogram |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | By T/T or L/C |
| Supply Capacity: | 10000 Tons Per Year |

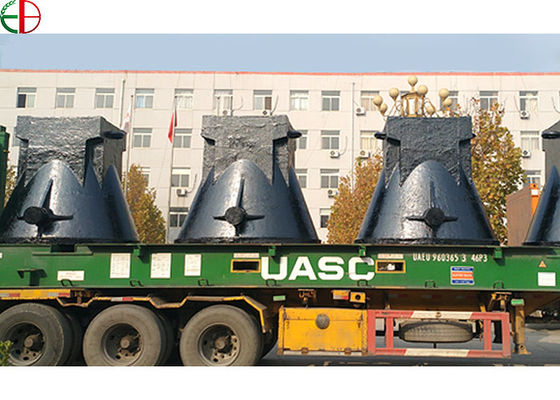

QT600-3 Casting Slag Pot, Ductile Iron Slag Pot Sand Casting Slag Pots
Product Description:
The Slag Pot is an important equipment in steelmaking production. It is a container for high-temperature
slag produced during the smelting process of steel. It has a bowl-shaped container with lifting trunnions
on both sides.
Slag Pot purchased by metallurgical companies generally use the traditional casting process, which has a
long manufacturing cycle, short service life, and a large number of scraps. Great Wall Cast Steel has
increased innovation in the production of slag tanks, and its slag tanks have a short casting period and a
long service life Strong anti-deformation ability.
The Trends for Material Selection:
Due to obvious advantages in terms of service life,maintenance and cost-efficiency, cast steel has been
becoming more significant in the melting pot construction over the last few years against both materials,
spheroidal cast-iron and lamellar graphite cast-iron. In comparison with other materials, cast steel offers
excellent repair possibilities as it is well-suited to welding.
Detailed Description:
Material: Heat Resistant Cast Iron, QT600-3;
Quality Level: As per National Standard & International Standards.
Production Process: Sand Process Heat-treatment Process.
Including machining process,such as drilling and tapping holes.
Special Features:
1. We can make big size alloy steel castings with Sodium Silicate Sand Process.
2. We can supply finished alloy steel castings with heat-treatment and machining process.
3. We can produce alloy Steel castings as per ASTM A27, GB/T 20878, DIN 17440, DIN 17224, AISI, ASTM,
JIS SUH35, NF A35-572/584, BS970,BS1449, ISO 683/13.
4. The biggest steel castings we can achieve so far is 300 tons per piece.
|
Chemical Composition(%) |
C |
Si |
Mn |
P |
S |
Mg |
Hardness |
|
QT600-3 |
3.00-3.80 |
2.00-2.80 |
0.30-0.70 |
≤0.06 |
≤0.06 |
0.035-0.050 |
180-270HB |
Product Details:
