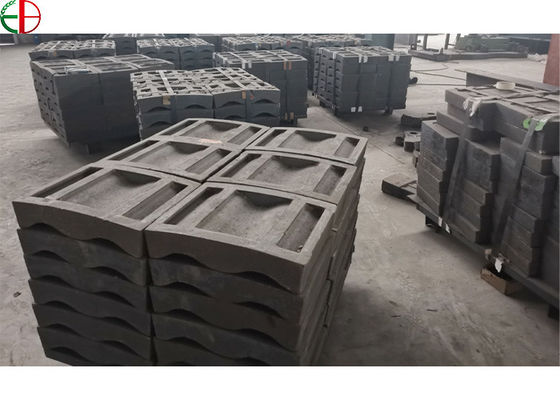

AS2027 15mm Boltless High Cr Cement Mill Wave Liner Plates

AS2027 15mm Boltless High Cr Cement Mill Wave Liner Plates
AS2027 15mm Boltless High Cr Cement Mill Wave Liner Plates
Brand Name
Eternal Bliss
PRODUCT MODEL
EB2080
certificate
ISO9001:2008
country of origin
China
MOQ
500 Kilogram
unit price
USD 2.0~4.5/kg
payment method
By T/T or L/C
Supply Capacity
10000 Tons Per Year
Product Summary
Boltless Coal Mill Cylinder Liner High Cr Boltless Wave Liner Plates Product Description: 1. Material: high chromium cast iron; 2. Wear plate thickness: 15mm, 20mm, 15mm, 30mm, 32mm, 40mm, 50mm, 60mm, 80mm, 100mm, 200mm, 500mm, 1000mm, etc., customized by customers; 3. Shape: flat, curved, ...
Product Details
Highlight:

AS2027 Cement Mill Liners

,

AS2027 Liner Plates

,

Boltless Wave Plates

Product Name:: Wear-resistant Baffle Castings Of Steel Mills
Material: High Cr
Standard: AS2027
Dimensions: Drawing
Application: Coal Mill

Product Description



Boltless Coal Mill Cylinder Liner High Cr Boltless Wave Liner Plates



AS2027 15mm Boltless High Cr Cement Mill Wave Liner Plates



Product Description:

1. Material: high chromium cast iron;



2. Wear plate thickness: 15mm, 20mm, 15mm, 30mm, 32mm, 40mm, 50mm, 60mm, 80mm, 100mm, 200mm, 500mm, 1000mm, etc., customized by customers;



3. Shape: flat, curved, corrugated, etc., customized by customers;



The sand casting process is used to produce high-chromium cast iron wear-resistant liners. Do quenching and tempering treatment to achieve better wear performance.



Eqv. Standards

Nominal Chemical Composition (W%)

C

Si

Mn

Ni

Cr

Mo

Cu

P

S

EN-GJN-HV600(XCr11)

ASTM A532 12% Cr

1.8-3.6

≤1.0

0.5-1.5

≤2.0

11.0-14.0

≤3.0

≤1.2

≤0.08

≤0.08

EN-GJN-HV600(XCr14)

ASTM A532 15% Cr-Mo

AS 2027 CrMo 15 3

G-X 300 CrMoNi 15 2 1

1.8-3.6

≤1.0

0.5-1.5

≤2.0

14.0-18.0

≤3.0

≤1.2

≤0.08

≤0.08

EN-GJN-HV600(XCr18)

ASTM A532 20% Cr-Mo

AS 2027 CrMo 20 1

G-X 260 CrMoNi 20 2 1

1.8-3.6

≤1.0

0.5-1.5

≤2.0

18.0-23.0

≤3.0

≤1.2

≤0.08

≤0.08

EN-GJN-HV600(XCr23)

ASTM A532 25% Cr-Mo

AS 2027 Cr27 LC & Cr27 HC

G-X 260 Cr27

1.8-3.6

≤1.0

0.5-2.0

≤2.0

23.0-30.0

≤3.0

≤1.2

≤0.08

≤0.08

AS 2027 Cr35

3.0-5.5

≤1.0

1.0-3.0

≤1.0

30.0-40.0

≤1.5

≤1.2

≤0.06

≤0.06

AS 2027 CrMoCu 20 2 1

2.6-2.9

≤1.0

≤1.0

≤1.0

18.0-21.0

1.4-2.0

0.8-1.2

≤0.06

≤0.06





Product Details:



AS2027 15mm Boltless High Cr Cement Mill Wave Liner PlatesAS2027 15mm Boltless High Cr Cement Mill Wave Liner PlatesAS2027 15mm Boltless High Cr Cement Mill Wave Liner Plates
