Material: | High Manganese Steel/Mn13Cr2/Mn18Cr2 | Product Name: | Ball Mill Liner Plates |
---|---|---|---|
Size: | Customer's Drawing Required | Type: | Liner Plate |
Machine Type: | Ball Mill | Heat Treatment: | Quenching + Tempering/Polished |
Techinique: | Sand Mould Casting | Advantage: | Wear Resistant |
Application: | Cement ,Mine, Power Plant | ||
High Light: | Mn18Cr2 Ball Mill Liner,OHSAS18001 Ball Mill Liner,Mn18Cr2 grinding mill liners |

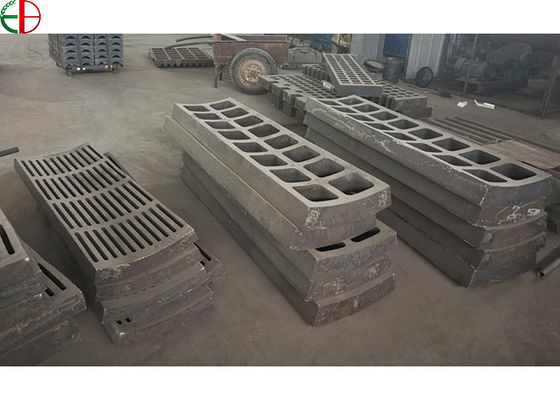

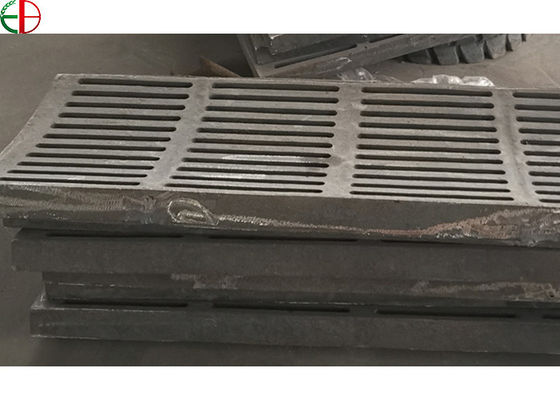

High Wear Resistance Low Carbide Alloy Steel Ball Mill Shell Liner End Liner Grate Liner Grind Lining
Product Description:
Products Apllication: Casting grinding ball mill liner plates are widely used in powder preparation and ultra-fine deep processing in Cement Building Materials, Mining, Power Plant, Chemical Industry, Ceramic Coatings, Papermaking, Magnetic Materials, etc.
High Manganese Steel Ball Mill Liner Plates: High manganese steel ball mill liner plate in general refers to a kind of casting steel with the Mn content at 11-14%, the carbon content at 0.9-1.5%, mostly higher than 1.0%. Under low impact load, can achieve HB300-400, high impact load, can achieve HB500-800 Different impact load, the surface hardening layer depth can be up to 10-20 mm. Hardened layer with high hardness can resist impact and reduces abrasive wear. Under the condition of strong impact abrasive wear, high manganese steel has excellent wearresistant performance, so it is widely used in Mining, Building Materials, Coal industries as wear-resistant parts. But, under the condition of low impact load, the characteristics of high manganese steel can't display due to the strain hardening effect is not obvious.
Chemical Composition (%)
|
Mn
|
C
|
Cr
|
P
|
S
|
Si
|
Mn13Cr2
|
11-14
|
1.15-1.25
|
1.5-2.5
|
≤0.05
|
≤0.04
|
0.3-0.8
|
Mn18Cr2
|
17-19
|
1.15-1.3
|
1.5-2.5
|
≤0.05
|
≤0.04
|
0.3-0.8
|
Mn22Cr2
|
21-23
|
1.1-1.4
|
1.5-2.5
|
≤0.05
|
≤0.04
|
0.3-0.8
|
Year of Foundation
|
In 2004
|
Producing Capacity
|
45,000 tons per year.
|
Weight Range
|
100to 20,000 kgs.
|
Certificate
|
ISO9001, ISO14001, OHSAS18001
|
Business Scope
|
High manganese steel, high chrome, alloy steel castings. Products cover crusher spares, recycling parts, excavator attachments such as jaw plates, concaves, mantles, bowl liners, blow bars, hammers, top grids, grates, track shoes, bucket teeth etc..
|
Non-destructive Testing Methods
|
Penetrant testing
Magnetic testing X-ray and ultrasonic testing |
Inspection Equipments
|
Direct-reading spectrometer Metallurgical microscope Another mechanical properties and hardness testing equipment.
|
|
Buyer has the right of revealing hidden defects for 1 year. Should any defects reveal in operation of goods within 12 months, we
shall replace the defective goods with new ones or compensate the buyer for a agreed amount. |
