V11 - 200 Ball Valve API cobalt alloy 20 Cobalt Valve Balls Seats

V11 - 200 Ball Valve API cobalt alloy 20 Cobalt Valve Balls Seats
V11 - 200 Ball Valve API cobalt alloy 20 Cobalt Valve Balls Seats
Brand Name
Eternal Bliss
PRODUCT MODEL
EB3002
certificate
ISO9001:2008
country of origin
China
MOQ
10 Set/Sets
unit price
$37.00 - $42.00/ Set
payment method
By T/T or L/C
Supply Capacity
10000 Tons Per Year
Product Summary
API V11-200 ball valve price, API cobalt alloy 20 cobalt Valve Balls and Seats What`s the Material of our Valve Seat ? Here is the valve seat material we ever made for our customers ,you also can give your own material chemical composition or choose other material from our material list. API ...
Product Details
Highlight:

V11-200 Ball Valve

,

20 Cobalt Balls Valve

,

API cobalt alloy Ball Valve
Product Name: Api Valve Ball
Material: Cobalt Alloy Cobalt Based Alloy
Chemical Composition: Cobalt Alloy
Dimensions: V11-200
Hardness: 37-55HRC
Density: 8.15-8.8g/cm
Temperature Of Media: High Temperature
Property: Wear And Corrosion Resistance
Type: Machine Parts ,Wear Parts
Shape: Round
Application: Oil&Gas Industry
Keyword: Cobalt Alloy Ball/cobalt Alloy20 Ball/ API V11-200 Ball
Standard: ASTM B392
Service: OEM\ODM
Heattreatment: Solution Annealing And Aging
Type: Bolts
Quality Control: 100% Inspected
Hardness: HRC 40 - 60
Grade: Cobalt Alloy 21
Wearresistance: High
Usage: Oil And Gas Industry
Thermalconductivity: 15 - 25 W/m·K
Shape: Irregular Shape/Spherical Powder
Use: Ore Mining
Castingmethod: Investment Casting, Sand Casting
Drawing Made: Accept
Appearance: Silvery

Product Description

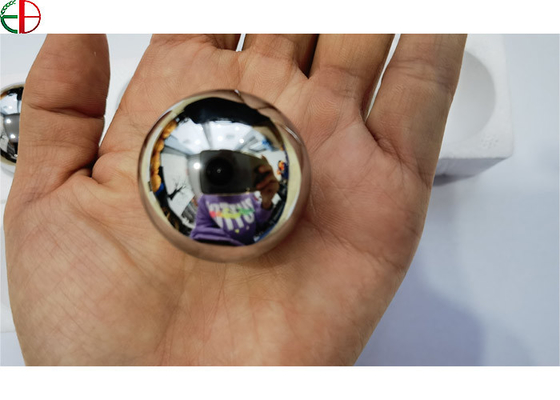

API V11-200 ball valve price, API cobalt alloy 20 cobalt Valve Balls and Seats



V11 - 200 Ball Valve API cobalt alloy 20 Cobalt Valve Balls Seats



What`s the Material of our Valve Seat ?



Here is the valve seat material we ever made for our customers ,you also can give your own material chemical composition or choose other material from our material list.



API Standard Cobalt Alloy Valve Seats and Valve Balls:



1. Valve balls and valve seats are widely used in oil fields.

2. Valve Ball and Seat performance directly affects the use effect and service life of the sucker rod pumps.
3. Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.



Feature:



1. High temperature resistance: the strength keeps stable up to 800℃ and it can even momentarily used at 1200℃.

2. Wear resistance: due mainly to the unique inherent characteristics of the hard carbide phase dispersed in a CoCr alloy matrix, it has exceptional wear and galling resistance.
3. Corrosion resistance: this exellent and lovely property allows this kind of material parts to be used in oil&gas, slurry, acid liquid and any other mediums.



No.

Size(mm)

Weight(g)

Tolerance

1

V11-106

20.14x11.68x12.7

22.81



ID(±1.27mm)

OD(+0/-0.13mm)

H(+0.51/-0.25mm)

2

V11-125

23.32x13.97x12.7

29.55

3

V11-150

29.67x17.2x12.7

49.53

4

V11-175

35.26x20.96x12.7

68.13

5

V11-200

37.54x24.38x12.7

69.05

6

V11-225

43.69x26.92x12.7

100.34

7

V11-250

51.05x33.27x12.7

127.04



8

V11-375

78.03x43.18x19.05

536.94

78.03x47.75x19.05

484.12




Product Details:



V11 - 200 Ball Valve API cobalt alloy 20 Cobalt Valve Balls SeatsV11 - 200 Ball Valve API cobalt alloy 20 Cobalt Valve Balls SeatsV11 - 200 Ball Valve API cobalt alloy 20 Cobalt Valve Balls Seats
