EB AWS TIG Stainless Steel Welding Wire Rod ER630 Corrosion Resistant FV520

MOQ: 100 Kilogram/Kilograms
Price: $3.50 - $7.00/ Kilogram
Standard Packaging: Plywood Case: 1500 x 1000 x 1000mm (Max.) 20 feet container: 25 tons (Max.)
Payment Method: L/C, T/T, Western Union
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
EB
Certification
ISO9001:2008
Model Number
EB1312
Name:
Stainless Steel Welding Rod
Material:
Stainless Steel
Material Grade:
17-4PH
Dimensions:
Dia.1.0,2.0,2.5,3.2,4.0mm
Feature:
Corrosion Resistance
Welding Current:
International Standard
Operating Current:
DC
Operating Temperature:
Standard Temperature
Length:
350mm,400mm Or Custom Made
Application:
TIG Welding, MIG MAG TIG SAW
Highlight:

Corrosion Resistant TIG Welding Rod

,

AWS Stainless Steel Welding Rod

,

TIG Stainless Steel Welding Wire

Product Description



EB AWS ER630 ER19-10H ER16-8-2 17-4PH 15-5PH 13-8MO FV520 17-7PH MIG TIG Stainless steel Welding Wire RODS








MIG diameter
0.8mm 0.9mm 1.0mm 1.2mm 1.6mm
TIG diameter
1.6mm 2.0mm 2.4mm 3.0mm 3.2mm 4.0mm
Raw material
stainless steel alloy
Standard
AWS A5.9 / A5.9M
Model Number
MIG WIRE SAW WIRE & TIG ROD: ER304 ER308 ER308H ER308L ER308LSI ER308SI ER308MO ER308LMO ER309 ER309L ER309LSI ER316 ER316H ER316L
ER316LSI ER316SI ER316LCU ER316LMN ER317 ER317L ER318 ER318L ER320 ER320LR ER307 ER310 ER310S ER310L ER312 ER347 ER347L ER321
ER385 ER307SI ER409 ER410 ER410NIMO ER430 ER439 ER630 ER2209 ER2553 ER2594 ER2307 etc.



ER316
Description: ER316 is TIG welding wire for stainless steel. The weld metal is austenitic structure containing 19%Cr-12%Ni-2%Mo,which is excellent in corrosion resistance, heat resistance and crack resistance. Because Mo contains good corrosion resistance to acetic acid, sulfurous acid, phosphoric acid and salts, especially against chloride ion pitting.Uses: Used for the welding of the same type of stainless steel, but also for the welding of high-chromium steel and dissimilar steel without heat treatment after welding.



ER316L
Description: ER316L is a TIG welding wire for ultra-low carbon stainless steel. The weld metal is austenitic structure containing 19%Cr-12%Ni-2%Mo, which is excellent in corrosion resistance, heat resistance and crack resistance. Because Mo contains good corrosion resistance to acetic acid, sulfurous acid, phosphoric acid and salts, especially against chloride ion pitting.Uses: Used for welding welding of urea and synthetic fiber equipment. It can also be used for welding high-chromium steel and dissimilar steel without heat treatment after welding..



Item
C
Si
Mn
P
S
Cr
Ni
Mo
Cu
Standard
≤0.030
0.30-
0.65
1.00-
2.50
≤0.030
≤0.030
18.00-
20.00
11.00-
14.00
2.00-
3.00
≤0.75
Test
0.022
0.42
1.89
0.009
0.007
19.12
12.62
2.62




Product Details​:

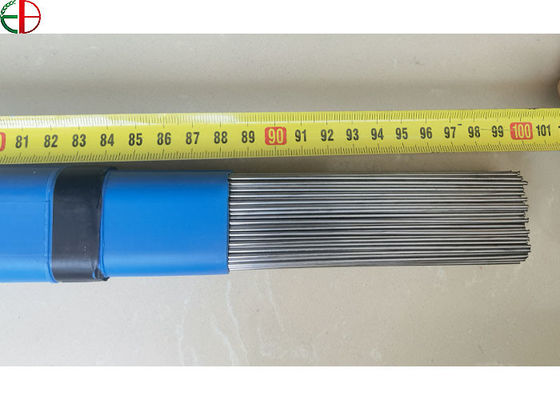

EB AWS TIG Stainless Steel Welding Wire Rod ER630 Corrosion Resistant FV520 1EB AWS TIG Stainless Steel Welding Wire Rod ER630 Corrosion Resistant FV520 2EB AWS TIG Stainless Steel Welding Wire Rod ER630 Corrosion Resistant FV520 3
