| MOQ: | 50 kg |
| Price: | USD 48~52/kg |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | By T/T or L/C |
| Supply Capacity: | 10000 Tons Per Year |

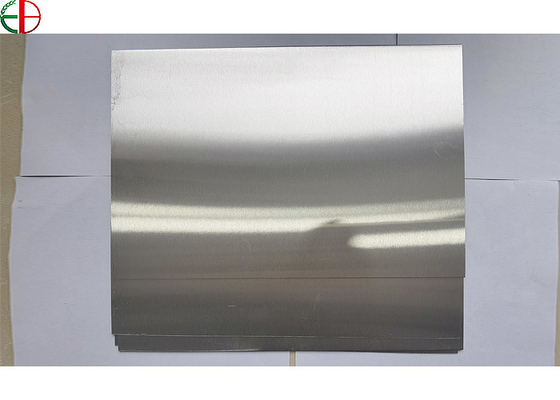

EB Etching Process Stamping Photoengraving Chemical Magnesium AZ91 AZ31Engraving Plate
Magnesium alloy can be used in all kinds of field.
1. Magnesium alloy thick plate are used to make satellites, lunar landing aircraft bases, exterior panel of
missile and rocket and the empennage of missile and plane.
2. Magnesium alloy middle board are used to make the auxiliary tank ,side board and other structure of battleplane.
3. Cast sheet of magnesium alloy:
* The magnesium alloy are used on the train for vibration attenuation, seat and couchette framework lining
board and goods shelf.
* The wide width usually requests between 1200-1800mm,and thickness between 1 and 1.5mm on cars’ front
and rear panels, door panels.
* The shell of 3C product, computer, mobile hard disk, CD, camea, acoustics, cell phone.
* Magnesium etching has replaced copper plate in printing and printing plate industry, and average thickness
of the plate is 5mm.
* Magnesium has been continuously used in electric tool and sport equipment.
Precision Magnesium Engraving Plates are lightweight, fast etching and environmentally friendly. They are used
for foil stamping,embossing, thermal dies, flexography, plaques, awards, rubber stamp masters, fabric and leather
embossing.
Etching magnesium plate, nitric acid corrosion, the surface can generate a layer of dense, continuous oxide layer,
to prevent the internal magnesium metal to continue the reaction. long-term placed in the air, will not corrode.
Advantage:
• Process: Semi-Casting & Hot Rolling, Hot Rolling.
• Size: 1.5mm - 10mm thickness, Width 580mm, Length 1000mm or can customized.
• Surface Treatment: Water Polishing & Machining, Perfect Clean & Bright & Flatness.
• Inspection of inner quality: By imported ultrasonic flaw detection inspection equipment UI-25.
Chemical Composition:
|
Model |
Chemical Component(%): |
||||||
|
Type |
Mg |
Al |
Zn |
Mn |
Si |
Fe |
Cu |
|
AX31B |
residual |
2.5-3.5 |
0.60-1.4 |
0.20-1.0 |
≤0.08 |
≤0.003 |
≤0.001 |
|
AZ61A |
residual |
5.8-7.2 |
0.40-1.5 |
0.15-0.50 |
≤0.10 |
≤0.005 |
≤0.005 |
|
AZ80A |
residual |
7.8-9.2 |
0.20-0.80 |
0.12-0.50 |
≤0.10 |
≤0.005 |
≤0.005 |
|
AZ91D |
residual |
8.5-9.5 |
0.45-0.90 |
0.17-0.40 |
≤0.08 |
≤0.004 |
≤0.001 |
