Aluminum Alloy Low Pressure Sand Casting Custom OEM / ODM Service

Custom aluminum alloy castings bring the main shape of a component together before its critical interfaces are machined. This product covers the low-pressure and sand-casting scope of the original listing, with OEM/ODM enquiries based on the intended component. For a housing, cover or support, the useful result is more than an outside profile: mounting faces, internal space and assembly features need to work together.

Casting design and practical product features

A casting can incorporate walls, ribs, bosses and mounting features into the initial geometry. A sand mould uses a shaped cavity, with cores where required to create internal features. Low-pressure filling describes how metal enters a mould; mould type and filling method are therefore separate parts of the process specification. The casting route is selected for the actual design rather than inferred from a short product name.

In design review, wall transitions, access to internal cavities and the position of machined faces deserve particular attention. A useful drawing distinguishes the as-cast envelope from the finished dimensions. This helps reserve machining stock where it contributes to fit, while avoiding an unnecessary machined finish on every non-functional surface.

From casting geometry to assembly interfaces

Mounting pads, locating bores and fastening holes often have different requirements from the surrounding cast surface. The component specification should identify their relationship to a common datum. Machining can then be defined around the interfaces that locate, support or connect the part, rather than simply listing an overall tolerance.

For enclosed designs, internal cleanliness, accessible openings and any sealing surfaces also belong in the part review. If the application needs pressure testing or a particular defect acceptance level, that requirement becomes a specific inspection item in the quotation.

Application and purchasing considerations

Typical design enquiries in this category include equipment housings, machine covers and custom supports. These are application examples, with suitability reviewed against the actual load, environment and geometry. Prototype needs, tooling ownership and expected repeat quantities help define a practical supply plan.

A clear casting specification also makes purchasing comparisons more useful: a raw casting and a machined, finished component include different deliverables. Separating those stages allows the quote to reflect the part you actually need.

Technical specification overview

Discuss your component with EB Castings

Start with the casting shape. Finish with the interfaces that matter. Send EB Castings your drawing, quantity and required supply stage to discuss an aluminum casting quotation tailored to your component.

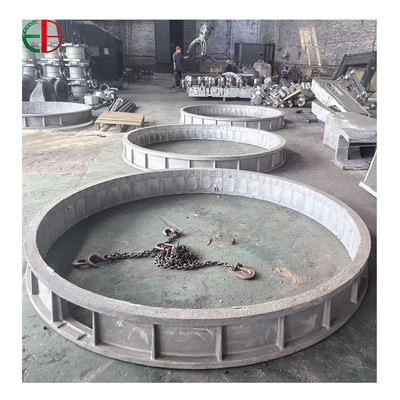

Product reference photographs

Photographs illustrate component examples; the supplied part follows the approved drawing and order specification.
