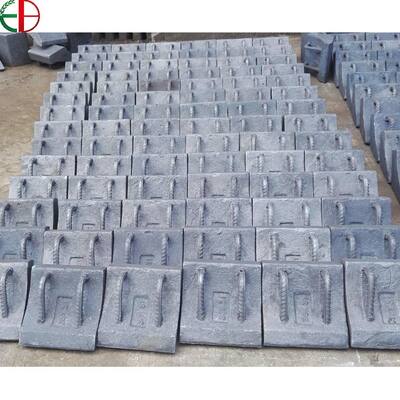

AS2027 Cr35 Mill Liner High Hardness High Cr White Iron Casting Lifter Bars
  • name
  • name
  • name
  • name
  • name
  • name

AS2027 Cr35 Mill Liner High Hardness High Cr White Iron Casting Lifter Bars

MOQ: 300
Details Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
EB
Certification
ISO9001-2018
Model Number
EB6075
Material Grade:
Cr35
Standard:
AS2027
Process:
Sand Cast Process
Surface Treatment:
Shot Blasting
Application:
Steel Mill Liner
Dimensions:
Drawing
Quality Control:
100% Inspected
Service:
OEM ODM
Highlight:

Cr35 mill liner lifter bars

,

high hardness Cr35 casting

,

wear resistant white iron casting

Product Description
AS2027 Cr35 Mill Liner High Hardness High Cr White Iron Casting Lifter Bars
High Cr white iron casting lifter bars for mill liners High Cr white iron casting lifter bars for mill liners High Cr white iron casting lifter bars manufacturing process High Cr white iron casting lifter bars manufacturing process
Wear Plates
High hardness wear plates for industrial applications High hardness wear plates for industrial applications
Impact Crusher Blow Bars
Impact crusher blow bars for mining and crushing equipment Impact crusher blow bars for mining and crushing equipment
SAG Lifter Bars
SAG mill lifter bars for grinding applications SAG mill lifter bars for grinding applications
Product Specifications
  • Material Grade: AS 2027 CrMo 15 3, AS 2027 CrMo 20 1, AS 2027 Cr27 LC, AS 2027 Cr35, AS 2027 CrMoCu 20 2 1
  • Dimensions: Custom manufactured as per customer drawings
  • Special Features:
    • Sand casting process for High Cr Lifter Bars manufacturing
    • Quenching & tempering treatment for high Cr white iron plates to achieve superior hardness
    • Cr15Mo3 castings: HRC56+ hardness; AS2027 Cr27 castings: HRC59+ hardness
Chemical Composition
Equivalent Standards C Si Mn Ni Cr Mo Cu P S
EN-GJN-HV600(XCr11) ASTM A532 12% Cr 1.8-3.6 ≤1.0 0.5-1.5 ≤2.0 11.0-14.0 ≤3.0 ≤1.2 ≤0.08 ≤0.08
EN-GJN-HV600(XCr14) ASTM A532 15% Cr-Mo AS 2027 CrMo 15 3 G-X 300 CrMoNi 15 2 1 1.8-3.6 ≤1.0 0.5-1.5 ≤2.0 14.0-18.0 ≤3.0 ≤1.2 ≤0.08 ≤0.08
EN-GJN-HV600(XCr18) ASTM A532 20% Cr-Mo AS 2027 CrMo 20 1 G-X 260 CrMoNi 20 2 1 1.8-3.6 ≤1.0 0.5-1.5 ≤2.0 18.0-23.0 ≤3.0 ≤1.2 ≤0.08 ≤0.08
EN-GJN-HV600(XCr23) ASTM A532 25% Cr-Mo AS 2027 Cr27 LC & Cr27 HC G-X 260 Cr27 1.8-3.6 ≤1.0 0.5-2.0 ≤2.0 23.0-30.0 ≤3.0 ≤1.2 ≤0.08 ≤0.08
AS 2027 Cr35 3.0-5.5 ≤1.0 1.0-3.0 ≤1.0 30.0-40.0 ≤1.5 ≤1.2 ≤0.06 ≤0.06
AS 2027 CrMoCu 20 2 1 2.6-2.9 ≤1.0 ≤1.0 ≤1.0 18.0-21.0 1.4-2.0 0.8-1.2 ≤0.06 ≤0.06
Why Choose Us
Manufacturing facility and quality assurance processes Manufacturing facility and quality assurance processes
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory with direct manufacturing capabilities.
How long is your delivery time?
Generally 5-10 days for in-stock items, or approximately 45 days for custom orders depending on quantity requirements.
What are your payment terms?
Payment <= 1000 USD: 100% in advance. Payment >= 1000 USD: 50% T/T in advance, balance before shipment. Irrevocable LC at sight accepted.
