Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays

Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays
Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays

Large Image :  Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB22150
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: USD10~20/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C, Western Union
Supply Ability: 5000 tons per year
Detailed Product Description
Material: Stainless Steel,heat Steel Surface Treatment: Shot Blasting
Certification: ISO9001-2008 Service: OEM And ODM Investment Casting
Standard: ASTM A297 HU,HK,HN,HT,1.4849 Working Temperature: Up To 1300℃
Application: Quenching
High Light:

heat treatment furnace baskets

,

charging material baskets

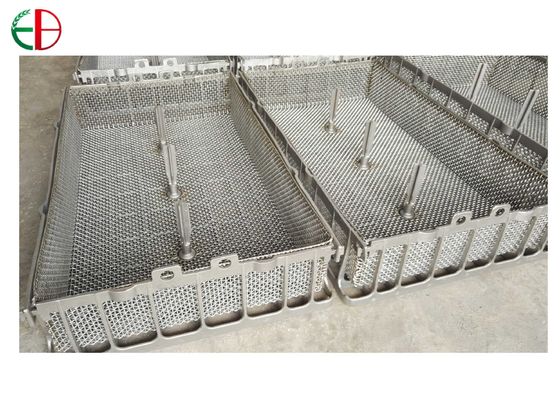

Vaccum Brazing Furnace Base Trays Available Size 1200x800x50mm Ni7N Quenching Heat Treatment Fixtures EB22150

Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays 0

Quality Level: As per National Standard & International Standards.

Special Features:

1. We can make High Temperature Material Trays Fixture with Lost Wax Process & EPC process & Sand Cast Process.

2. We can supply finished High Temperature Material Trays Fixture with heat-treatment and machining process.

3. We can produce heat steel castings as per GB/T 20878,DIN 17440,DIN 17224, AISI,ASTM,JIS SUH35,NF A35- 572/584,BS970,BS1449,ISO 683/13.



Production Process:Lost Wax Process & EPC process & Sand Process, including machining process.

Quality Level: As per National Standard & International Standards.

Material Grade:



Composition

(%)

C Si Mn Cr Ni S P

1.4823

GX40CrNiSi27-4

0.35~0.50 1.0~2.5 ≦1.50 25.0-28.0 3.5-5.5 ≦0.03 ≦ 0.035

1.4825

GX25CrNiSi18-9

0.15-0.30 1.0~2.5 ≦1.50 17.0-19.0 8.0-10.0 ≦0.03 ≦ 0.035

1.4826

GX40CrNiSi22-9

0.30-0.50 1.0~2.5 ≦1.50 21.0-23.0 9.0-11.0 ≦0.03 ≦ 0.035

1.4832

GX25CrNiSi20-14

0.15-0.30 1.0~2.5 ≦1.50 19.0-21.0 13.0-15.0 ≦0.03 ≦ 0.035

1.4837

GX40CrNiSi25-12

0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 11.0-14.0 ≦0.03 ≦ 0.035

1.4848

GX40CrNiSi25-20

0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 19.0-21.0 ≦0.03 ≦ 0.035

1.4865

GX40CrNiSi38-18

0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4857

GX40CrNiSi35-25

0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 34.0-36.0 ≦0.03 ≦ 0.035

1.4855

GX30CrNiSiNb24-24

0.30-0.40 0.5-2.0 ≦1.50 23.0-25.0 23.0-25.0 ≦0.03 ≦ 0.035

1.4849

GX40CrNiSiNb38-18

0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4852

GX40CrNiSiNb35-25

0.35-0.45 1.0~2.5 ≦1.50 24.0-26.0 33.0-35.0 ≦0.03 ≦ 0.035
G-CoCr28 0.10-0.20 1.0~2.5 ≦1.50 27.0-30.0 - ≦0.03 ≦ 0.035
G-CoCr28W 0.35-0.50 0.5-2.0 ≦1.50 27.0-30.0 47.0-50.0 ≦0.03 ≦ 0.035

Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays 1

Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays 2Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays 3



Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays 4Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays 5





Production Process

Step 1: Getting orders.

Step 2: Process design by technical department

Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)



Step 13: Packing



Step 14: Shipping







Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays 6

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show Ni7N Quenching Heat Treatment Fixtures , Vacuum Brazing Furnace Base Trays 7



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.
